629-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

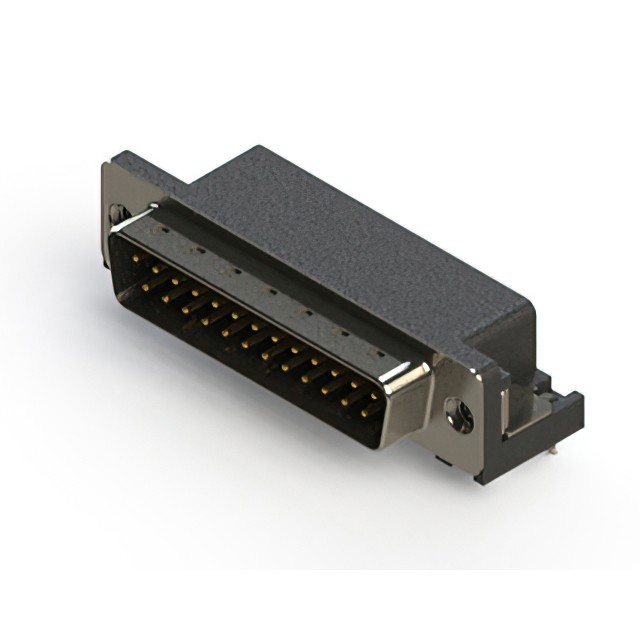

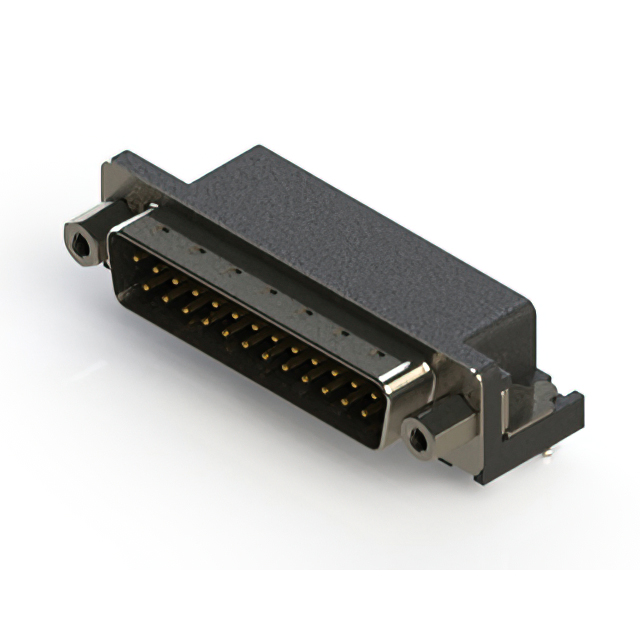

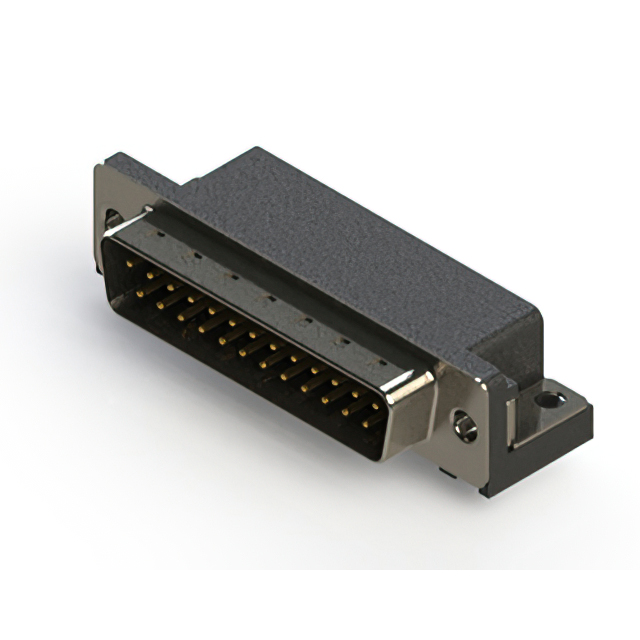

629 SERIES RIGHT ANGLE D-SUB PLU
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Contact Material | Backset Spacing | Backset Spacing | Shell Material, Finish | Contact Type | Contact Finish | Termination | Material Flammability Rating | Number of Positions | Number of Rows [custom] | Connector Type | Current Rating (Amps) | Connector Style | Flange Feature | Features | Contact Finish Thickness | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Copper Alloy | 10.4 mm | 0.409 in | Nickel Plated Steel | Signal | Gold | Solder | UL94 V-0 | 25 | 2 | Plug Male Pins | 3 A | D-Sub | Housing/Shell (Unthreaded) | Board Lock Grounding Indents Mounting Brackets Shielded | Flash | Panel Mount Right Angle Through Hole | B DB | 3 | |||
 EDAC Inc. | -55 C | 125 °C | Black | Polyester Thermoplastic | Copper Alloy | 10.4 mm | 0.409 in | Nickel Plated Steel | Signal | Gold | Solder | UL94 V-0 | 25 | 2 | Plug Male Pins | 3 A | D-Sub | 4-40 Mating Side Female Screwlock | Board Lock Grounding Indents Mounting Brackets Shielded | Flash | Panel Mount Right Angle Through Hole | B DB | 3 | |||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Copper Alloy | 10.4 mm | 0.409 in | Nickel Plated Steel | Signal | Gold | Solder | UL94 V-0 | 25 | 2 | Plug Male Pins | 3 A | D-Sub | Housing/Shell (Unthreaded) | Board Lock Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | B DB | 3 | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 125 °C | Black | Polyester Thermoplastic | Copper Alloy | 10.4 mm | 0.409 in | Nickel Plated Steel | Signal | Gold | Solder | UL94 V-0 | 25 | 2 | Plug Male Pins | 3 A | D-Sub | Housing/Shell | Board Lock Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | B DB | 3 | 30 Áin | 0.76 Ám | 4-40 | |
 EDAC Inc. | -55 C | 125 °C | Black | Polyester Thermoplastic | Copper Alloy | 10.4 mm | 0.409 in | Nickel Plated Steel | Signal | Gold | Solder | UL94 V-0 | 25 | 2 | Plug Male Pins | 3 A | D-Sub | Housing/Shell (Unthreaded) | Grounding Indents Mounting Brackets Shielded | Flash | Panel Mount Right Angle Through Hole | B DB | 3 | |||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Copper Alloy | 10.4 mm | 0.409 in | Nickel Plated Steel | Signal | Gold | Solder | UL94 V-0 | 25 | 2 | Plug Male Pins | 3 A | D-Sub | 4-40 Mating Side Female Screwlock | Board Lock Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | B DB | 3 | 15 µin | 0.38 µm | ||
 EDAC Inc. | -55 C | 125 °C | Black | Polyester Thermoplastic | Copper Alloy | 10.4 mm | 0.409 in | Nickel Plated Steel | Signal | Gold | Solder | UL94 V-0 | 25 | 2 | Plug Male Pins | 3 A | D-Sub | Housing/Shell | Board Lock Grounding Indents Mounting Brackets Shielded | Flash | Panel Mount Right Angle Through Hole | B DB | 3 | 4-40 | ||
 EDAC Inc. | -55 C | 125 °C | Black | Polyester Thermoplastic | Copper Alloy | 10.4 mm | 0.409 in | Nickel Plated Steel | Signal | Gold | Solder | UL94 V-0 | 25 | 2 | Plug Male Pins | 3 A | D-Sub | 4-40 Mating Side Female Screwlock | Board Lock Grounding Indents Mounting Brackets Shielded | Flash | Panel Mount Right Angle Through Hole | B DB | 3 | |||
 EDAC Inc. | -55 C | 125 °C | Black | Polyester Thermoplastic | Copper Alloy | 10.4 mm | 0.409 in | Nickel Plated Steel | Signal | Gold | Solder | UL94 V-0 | 25 | 2 | Plug Male Pins | 3 A | D-Sub | Housing/Shell (Unthreaded) | Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | B DB | 3 | 15 µin | 0.38 µm | ||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Copper Alloy | 10.4 mm | 0.409 in | Nickel Plated Steel | Signal | Gold | Solder | UL94 V-0 | 25 | 2 | Plug Male Pins | 3 A | D-Sub | Housing/Shell (Unthreaded) | Board Lock Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | B DB | 3 | 15 µin | 0.38 µm |
