M50-311 Series

Catalog

30+30 POS. FEMALE DIL VERTICAL SMT CONN. ROHS COMPLIANT: YES

Part	Contact Material	Insulation Material	Contact Shape	Applications	Mounting Type	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Type	Style	Termination	Contact Finish - Mating	Mated Stacking Heights	Material Flammability Rating	Contact Finish - Post	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Color	Features	Insulation Height [z]	Insulation Height [z]

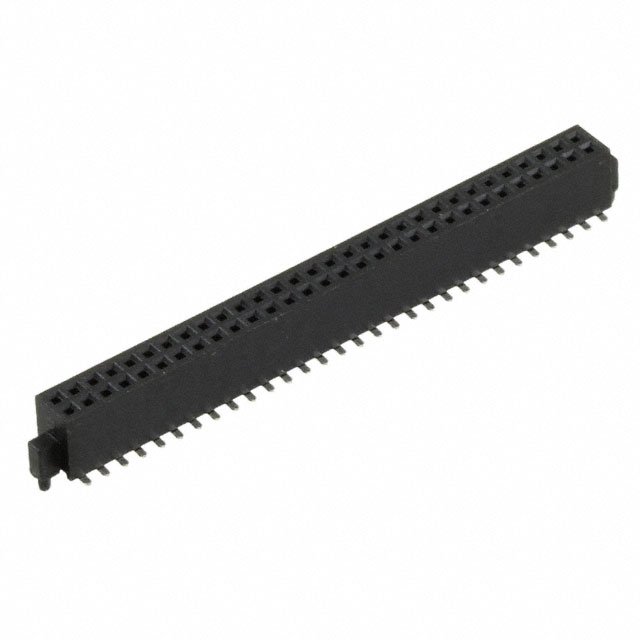

Harwin Inc. M50-3113042	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Medical Telecommunications	Surface Mount	Flash	1.27 mm	0.05 in	4.3 mm	0.169 "	2	0.05 in	1.27 mm	Receptacle	Female Socket	Board to Board Cable	Solder	Gold	5.5 mm 6.18 mm	UL94 V-0	Tin	Push-Pull	60	-40 C	105 ░C	All	Black	Board Guide
Harwin Inc. M50-3112542	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Medical Telecommunications	Surface Mount	Flash	1.27 mm	0.05 in	4.3 mm	0.169 "	2	0.05 in	1.27 mm	Receptacle	Female Socket	Board to Board Cable	Solder	Gold	5.5 mm 6.18 mm	UL94 V-0	Tin	Push-Pull	50	-40 C	105 ░C	All	Black	Board Guide

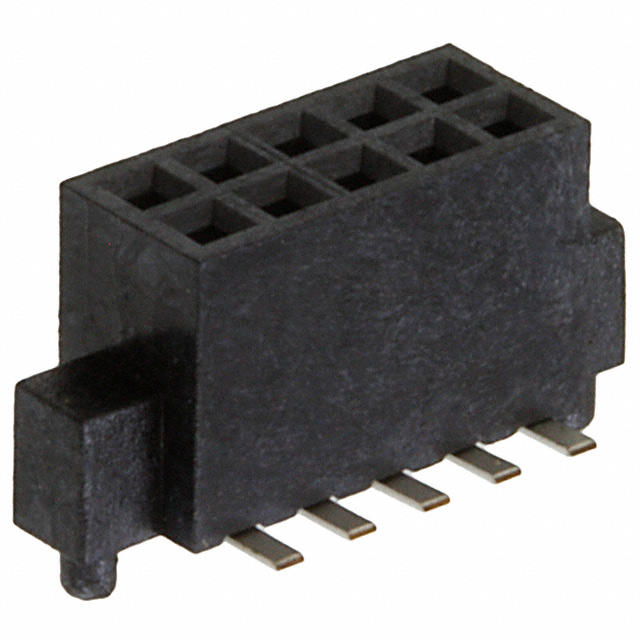

Harwin Inc. M50-3110542	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Medical Telecommunications	Surface Mount	Flash	1.27 mm	0.05 in			2	0.05 in	1.27 mm	Receptacle	Female Socket	Board to Board Cable	Solder	Gold	5.5 mm 6.18 mm	UL94 V-0	Tin	Push-Pull	10	-40 C	105 ░C	All	Black	Board Guide	0.181 in	4.6 mm
Harwin Inc. M50-3111042	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Medical Telecommunications	Surface Mount	Flash	1.27 mm	0.05 in	4.3 mm	0.169 "	2	0.05 in	1.27 mm	Receptacle	Female Socket	Board to Board Cable	Solder	Gold	5.5 mm 6.18 mm	UL94 V-0	Tin	Push-Pull	20	-40 C	105 ░C	All	Black	Board Guide
