3159-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

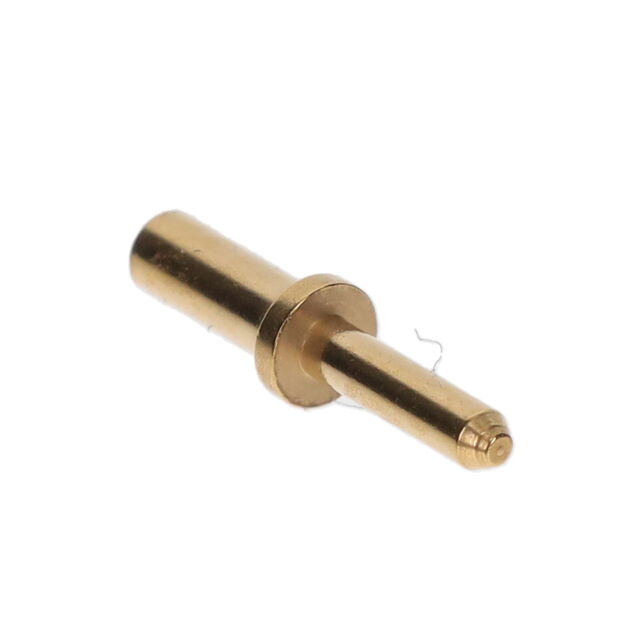

CONN PC PIN CIRC
| Part | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Length - Overall | Length - Overall [x] | Contact Material | Contact Finish | Mounting Hole Diameter | Mounting Hole Diameter | Contact Finish Thickness | Contact Finish Thickness | Termination | Insulation | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | PC Pin | 3.96 mm | 0.156 " | 4.78 mm | 0.188 in | 0.045 in | 1.14 mm | 0.092 in | 2.34 mm | Through Hole | 9.25 mm | 0.364 in | Brass Alloy | Tin | 0.064 " | 1.63 mm | 200 Áin | 5.08 Ám | Swage | Non-Insulated | Single End |
 Mill-Max Manufacturing Corp. | PC Pin | 3.96 mm | 0.156 " | 4.78 mm | 0.188 in | 0.045 in | 1.14 mm | 0.092 in | 2.34 mm | Through Hole | 9.25 mm | 0.364 in | Brass Alloy | Gold | 0.064 " | 1.63 mm | 10 Áin | 0.25 Ám | Swage | Non-Insulated | Single End |
