SMBJ78 Series

Catalog

600W, 96.4V, 10%, BIDIRECTIONAL,

Part	Qualification	Voltage - Reverse Standoff (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Package / Case	Voltage - Breakdown (Min) [Min]	Mounting Type	Supplier Device Package	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Type	Bidirectional Channels [custom]	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp	Applications	Unidirectional Channels [custom]

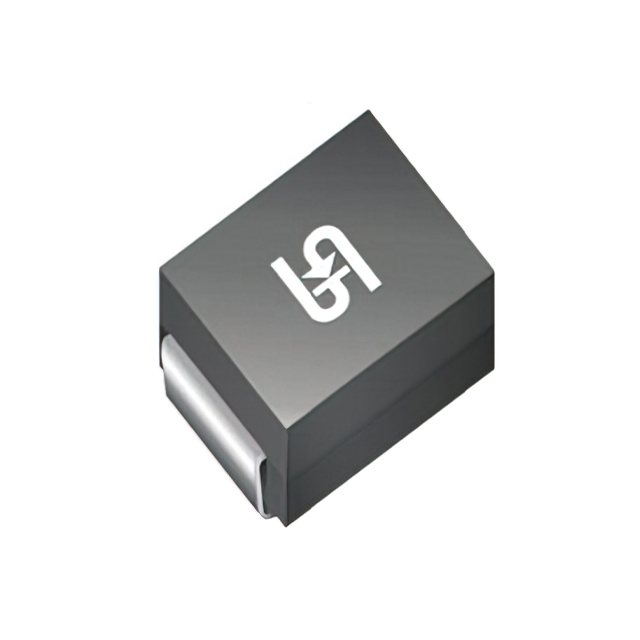

Taiwan Semiconductor Corporation SMBJ78CH	AEC-Q101	78 V	-55 °C	150 °C	Automotive	DO-214AA SMB	86.7 V	Surface Mount	SMB	DO-214AA	4.5 A	Zener	1	600 W
Taiwan Semiconductor Corporation SMBJ78CA		78 V	-55 °C	150 °C		DO-214AA SMB	86.7 V	Surface Mount	SMB	DO-214AA	4.8 A	Zener	1	600 W	126 V	General Purpose
Taiwan Semiconductor Corporation SMBJ78AHM4G	AEC-Q101	78 V	-55 °C	150 °C	Automotive	DO-214AA SMB	86.7 V	Surface Mount	SMB	DO-214AA	5 A	Zener		600 W	126 V		1
Taiwan Semiconductor Corporation SMBJ78CAHM4G	AEC-Q101	78 V	-55 °C	150 °C	Automotive	DO-214AA SMB	86.7 V	Surface Mount	SMB	DO-214AA	5 A	Zener	1	600 W	126 V
Taiwan Semiconductor Corporation SMBJ78AH	AEC-Q101	78 V	-55 °C	150 °C	Automotive	DO-214AA SMB	86.7 V	Surface Mount	SMB	DO-214AA	5 A	Zener		600 W	126 V		1
