3602-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

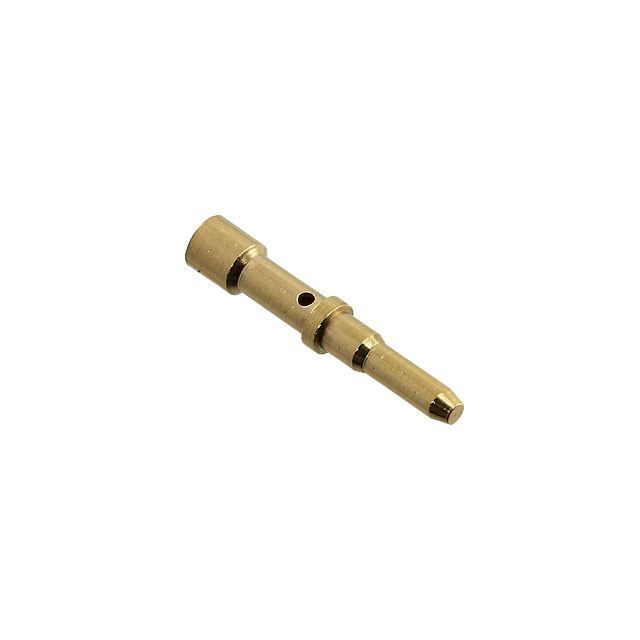

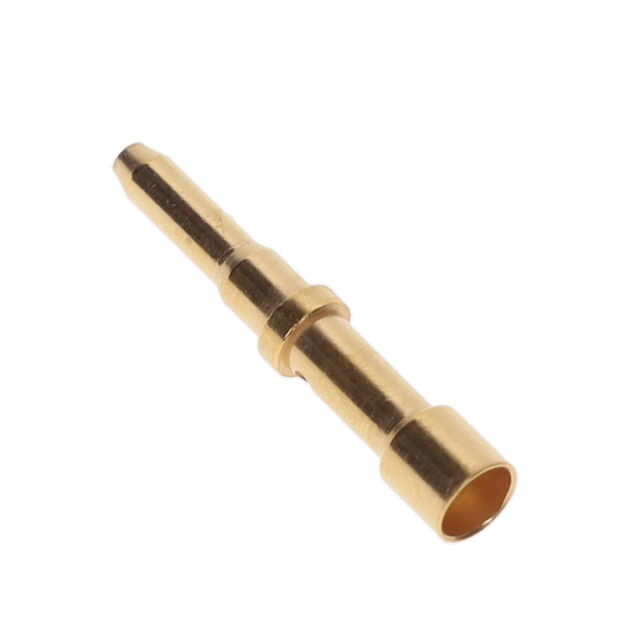

CONN PC PIN CIRC 0.062DIA GOLD
| Part | Insulation | Terminal Type | Terminal Style | Contact Finish | Termination | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Length - Below Flange [x] | Length - Below Flange [x] | Contact Material | Length - Overall [x] | Length - Overall [x] | Mounting Type | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | PC Pin | Wire | Gold | Crimp | 0.062 in | 1.57 mm | 6.99 mm | 0.275 " | Brass Alloy | 0.588 in | 14.94 mm | Free Hanging (In-Line) | 7.16 mm | 0.282 in | 0.25 Ám | 10 Áin |
 Mill-Max Manufacturing Corp. | Non-Insulated | PC Pin | Wire | Gold | Crimp | 0.062 in | 1.57 mm | 6.99 mm | 0.275 " | Brass Alloy | 0.588 in | 14.94 mm | Free Hanging (In-Line) | 7.16 mm | 0.282 in | 1.27 µm | 50 µin |
 Mill-Max Manufacturing Corp. | Non-Insulated | PC Pin | Wire | Gold | Crimp | 0.062 in | 1.57 mm | 6.99 mm | 0.275 " | Brass Alloy | 0.588 in | 14.94 mm | Free Hanging (In-Line) | 7.16 mm | 0.282 in | 0.51 µm | 20 µin |
