833-029 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 29POS 0.156
| Part | Material - Insulation | Termination Rows | Pitch | Pitch | Termination | Color | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Material | Card Type | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Number of Rows | Number of Positions/Bay/Row | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Read Out |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 3.96 mm | 0.156 in | Wire Wrap | Green | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Copper Alloy | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 29 | Through Hole | 0.25 Ám | 10 Áin | 29 | Cantilever | 125 °C | -40 C | Single |

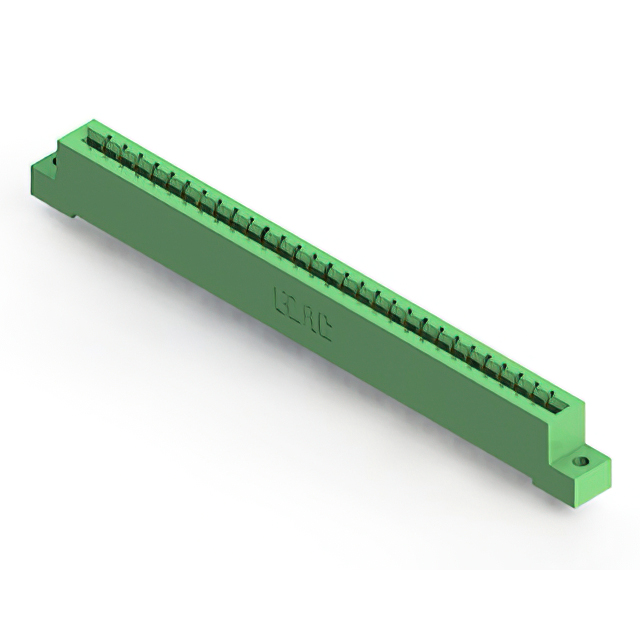

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 3.96 mm | 0.156 in | Solder | Green | Female | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Copper Alloy | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 29 | Through Hole | 0.25 Ám | 10 Áin | 29 | Cantilever | 125 °C | -40 C | Single |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 3.96 mm | 0.156 in | Solder | Green | Female | M3 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 29 | Right Angle Through Hole | 0.25 Ám | 10 Áin | 29 | Cantilever | 125 °C | -40 C | Single | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 3.96 mm | 0.156 in | Wire Wrap | Green | Female | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 29 | Through Hole | 0.25 Ám | 10 Áin | 29 | Cantilever | 125 °C | -40 C | Single |

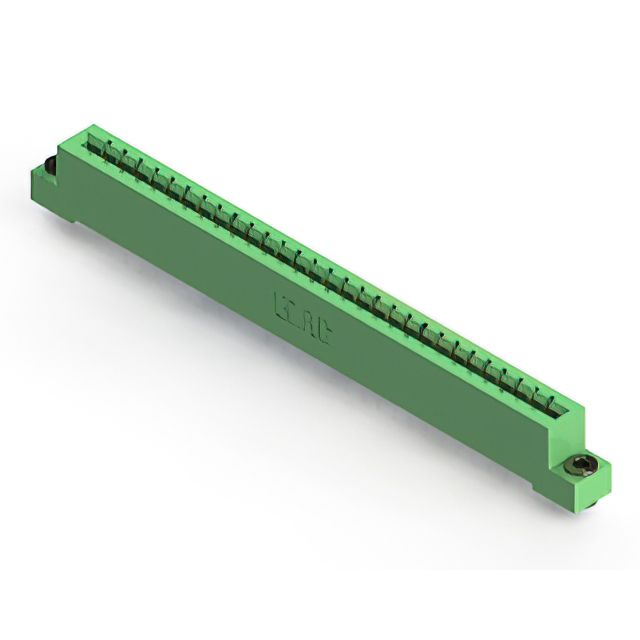

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 3.96 mm | 0.156 in | Wire Wrap | Green | Female | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 29 | Through Hole | 0.25 Ám | 10 Áin | 29 | Cantilever | 125 °C | -40 C | Single | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 3.96 mm | 0.156 in | Solder | Green | Female | 0.156 " | 3.96 mm | Copper Alloy | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 29 | Right Angle Through Hole | 0.25 Ám | 10 Áin | 29 | Cantilever | 125 °C | -40 C | Single | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 3.96 mm | 0.156 in | Wire Wrap | Green | Female | Copper Alloy | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 29 | Through Hole | 0.25 Ám | 10 Áin | 29 | Cantilever | 125 °C | -40 C | Single | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 3.96 mm | 0.156 in | Solder | Green | Female | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Copper Alloy | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 29 | Through Hole | 0.25 Ám | 10 Áin | 29 | Cantilever | 125 °C | -40 C | Single |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 3.96 mm | 0.156 in | Solder | Green | Female | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Copper Alloy | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 29 | Right Angle Through Hole | 0.25 Ám | 10 Áin | 29 | Cantilever | 125 °C | -40 C | Single |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 3.96 mm | 0.156 in | Wire Wrap | Green | Female | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 29 | Through Hole | 0.25 Ám | 10 Áin | 29 | Cantilever | 125 °C | -40 C | Single |
