79048 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

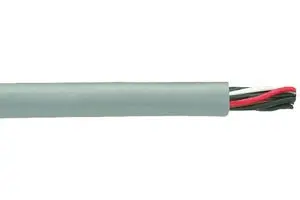

MULTICONDUCTOR CABLE, ECOGEN™ ECOFLEX®, UNSHIELDED, 8 CONDUCTOR, 22 AWG, 0.38 MM², 1000 FT, 305 M
| Part | Length | Length | Wire Gauge | Features | Ratings | Conductor Insulation | Jacket Color | Jacket (Insulation) Material | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Voltage | Conductor Strand [custom] | Conductor Strand | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 1000 ft | 304.8 m | 22 AWG | Biological Compatibility | ISO 10993 | Polyphenylene Ether Modified (mPPE) | Slate | Polyphenylene Ether Modified (mPPE) | Copper Tinned | -40 °C | 105 ░C | Multi-Conductor | 0.889 mm | 0.035 in | 0.264 in | 6.71 mm | 8 | 600 V | 19 Strands | 34 AWG | ||
 ALPHA WIRE | 22 AWG | Biological Compatibility | ISO 10993 | Polyphenylene Ether Modified (mPPE) | Slate | Polyphenylene Ether Modified (mPPE) | Copper Tinned | -40 °C | 105 ░C | Multi-Conductor | 0.889 mm | 0.035 in | 0.264 in | 6.71 mm | 8 | 600 V | 19 Strands | 34 AWG | ||||
 ALPHA WIRE | 22 AWG | Biological Compatibility | ISO 10993 | Polyphenylene Ether Modified (mPPE) | Slate | Polyphenylene Ether Modified (mPPE) | Copper Tinned | -40 °C | 105 ░C | Multi-Conductor | 0.889 mm | 0.035 in | 0.264 in | 6.71 mm | 8 | 600 V | 19 Strands | 34 AWG | 30.5 m | 100 ft |
