9GV0612 Series

Catalog

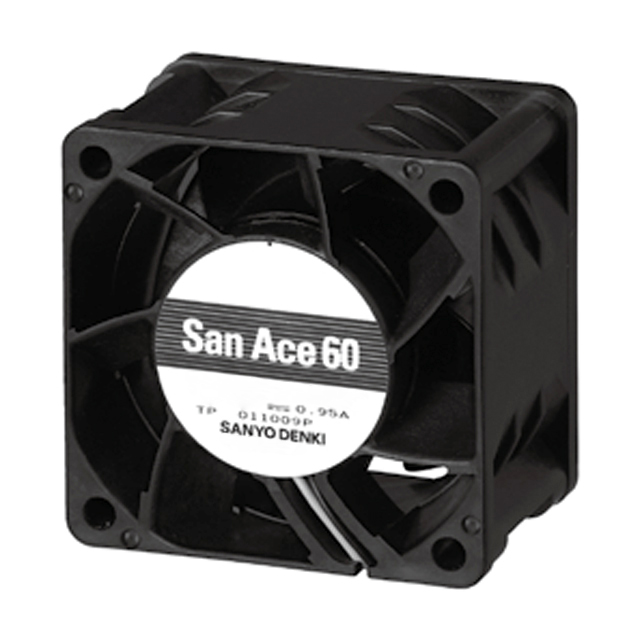

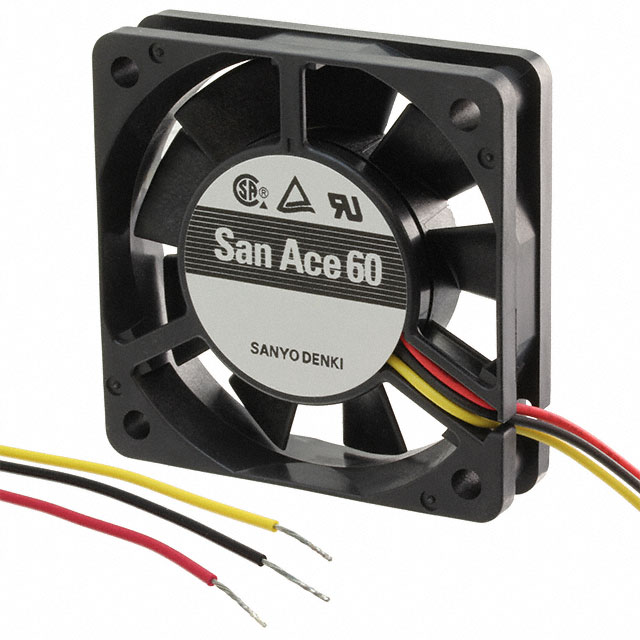

FAN AXIAL 60X38MM 12VDC WIRE

Part	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Lifetime @ Temp.	Termination	Static Pressure	Static Pressure	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Power (Watts)	Fan Type	Width [y]	RPM	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Bearing Type	Air Flow	Air Flow	Noise	Current Rating (Amps)	Features
Sanyo Denki America Inc. 9GV0612H102	Plastic	8 V	13.8 VDC	Plastic	40000 Hrs	2 Wire Leads	2.48 in H2O	617.7 Pa	130.18 g	0.287 lb	-20 ░C	70 °C	12 VDC	24 W	Tubeaxial	38 mm	14500 RPM	60 mm	60 mm	CSA TUV UL	Ball	76 CFM	2.13 mł/min	63 dB
Sanyo Denki America Inc. 9GV0612G1011	Plastic	8 V	13.8 VDC	Plastic	40000 Hrs	3 Wire Leads	3.02 in H2O	752.3 Pa	130.18 g	0.287 lb	-20 ░C	70 °C	12 VDC	33.6 W	Tubeaxial	38 mm	16000 RPM	60 mm	60 mm	CSA TUV UL	Ball	84 CFM	2.35 mł/min		2.8 A	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV0612L1011	Plastic	10.8 VDC	13.8 VDC	Plastic	40000 Hrs	3 Wire Leads	1.17 in H2O	291.4 Pa	130.18 g	0.287 lb	-20 ░C	70 °C	12 VDC	8.4 W	Tubeaxial	38 mm	10000 RPM	60 mm	60 mm	CSA TUV UL	Ball	52.6 CFM	1.47 m³/min	52 dB	0.7 A	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV0612P1G03	Plastic	8 V	13.8 VDC	Plastic	40000 Hrs	4 Wire Leads	3.02 in H2O	752.3 Pa	130.18 g	0.287 lb	-20 ░C	70 °C	12 VDC	33.6 W	Tubeaxial	38 mm	16000 RPM	60 mm	60 mm	CSA TUV UL	Ball	84 CFM	2.35 mł/min		2.8 A	PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV0612H1021	Plastic	8 V	13.8 VDC	Plastic	40000 Hrs	2 Wire Leads	2.48 in H2O	617.7 Pa	130.18 g	0.287 lb	-20 ░C	70 °C	12 VDC	24 W	Tubeaxial	38 mm	14500 RPM	60 mm	60 mm	CSA TUV UL	Ball	76 CFM	2.13 mł/min	63 dB
Sanyo Denki America Inc. 9GV0612P1H031	Plastic	8 V	13.8 VDC	Plastic	40000 Hrs	4 Wire Leads	2.48 in H2O	617.7 Pa	130.18 g	0.287 lb	-20 ░C	70 °C	12 VDC	24 W	Tubeaxial	38 mm	14500 RPM	60 mm	60 mm	CSA TUV UL	Ball	76 CFM	2.13 mł/min	63 dB		PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV0612P1G031	Plastic	8 V	13.8 VDC	Plastic	40000 Hrs	4 Wire Leads	3.02 in H2O	752.3 Pa	130.18 g	0.287 lb	-20 ░C	70 °C	12 VDC	33.6 W	Tubeaxial	38 mm	16000 RPM	60 mm	60 mm	CSA TUV UL	Ball	84 CFM	2.35 mł/min		2.8 A	PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV0612L1D011	Plastic	10.8 VDC	13.8 VDC	Plastic	40000 Hrs	3 Wire Leads	1.17 in H2O	291.4 Pa	130.18 g	0.287 lb	-20 ░C	70 °C	12 VDC	8.4 W	Tubeaxial	38 mm	10000 RPM	60 mm	60 mm	CSA TUV UL	Ball	52.6 CFM	1.47 m³/min	52 dB	0.7 A	Locked Rotor Sensor
Sanyo Denki America Inc. 9GV0612M101						3 Wire Leads			130.18 g	0.287 lb			12 VDC	18 W	Tubeaxial	38 mm		60 mm	60 mm	CSA TUV UL	Ball					Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV0612P1M03	Plastic	8 V	13.8 VDC	Plastic	40000 Hrs	4 Wire Leads	1.99 in H2O	495.7 Pa	130.18 g	0.287 lb	-20 ░C	70 °C	12 VDC	18 W	Tubeaxial	38 mm	13000 RPM	60 mm	60 mm	CSA TUV UL	Ball	68 CFM	1.9 m³/min	60 dB(A)	1.5 A	PWM Control Speed Sensor (Tach)
