19302241 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, M32 SIDE ENTRY, 2 PEGS, LOW PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY, 1 LEVER

Part	Housing Finish	Size	Lock Location	Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Connector Type	Housing Color	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Ingress Protection	Features	Size / Dimension [z]	Size / Dimension [y]

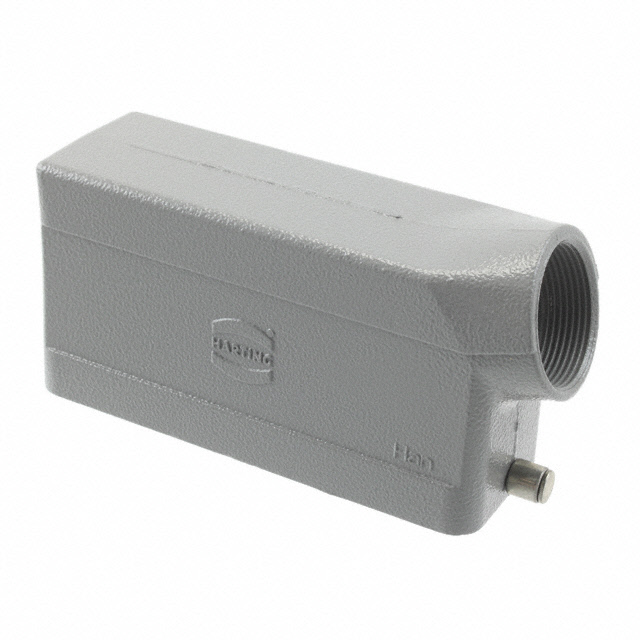

HARTING 19302241542	Powder Coated	24 B	Locking Clip (1) on Base Bottom	Side Entry	43 mm	120 mm	2.461 "	62.5 mm	4.724 in	1.693 "	Hood	Gray	Aluminum Die Cast	125 °C	-40 C	M32	IP65 - Dust Tight Water Resistant
HARTING 19302241291	Powder Coated	24 B	Locking Clip (1) on Base Bottom	Side Entry Dual		144 mm	2.197 in		5.669 in	2.244 "	Base - Box Mount	Gray	Aluminum Die Cast	125 °C	-40 C	M25	IP65 - Dust Tight Water Resistant	Feed Through	55.8 mm	57 mm

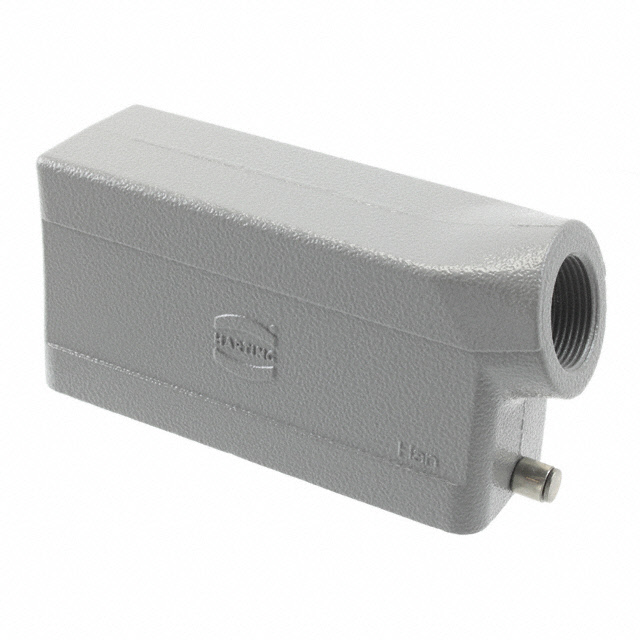

HARTING 19302241541	Powder Coated	24 B	Locking Clip (1) on Base Bottom	Side Entry	43 mm	120 mm	2.461 "	62.5 mm	4.724 in	1.693 "	Hood	Gray	Aluminum Die Cast	125 °C	-40 C	M25	IP65 - Dust Tight Water Resistant
HARTING 19302241251	Powder Coated	24 B	Locking Clip (1) on Base Bottom	Side Entry	57 mm	144 mm	2.205 "	56 mm	5.669 in	2.244 "	Base - Box Mount	Gray	Aluminum Die Cast	125 °C	-40 C	M25	IP65 - Dust Tight Water Resistant

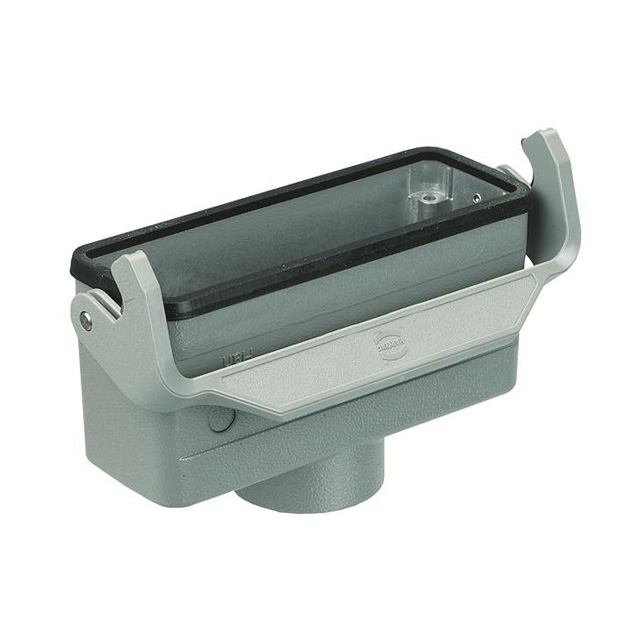

HARTING 19302241752	Powder Coated	24 B	Locking Clip (1) on Hood	Top Entry Top or Bottom Entry	43 mm	120 mm	2.26 in	57.4 mm	4.724 in	1.693 "	Hood - Coupling	Gray	Aluminum Die Cast	125 °C	-40 C	M32	IP65 - Dust Tight Water Resistant	Cable to Cable

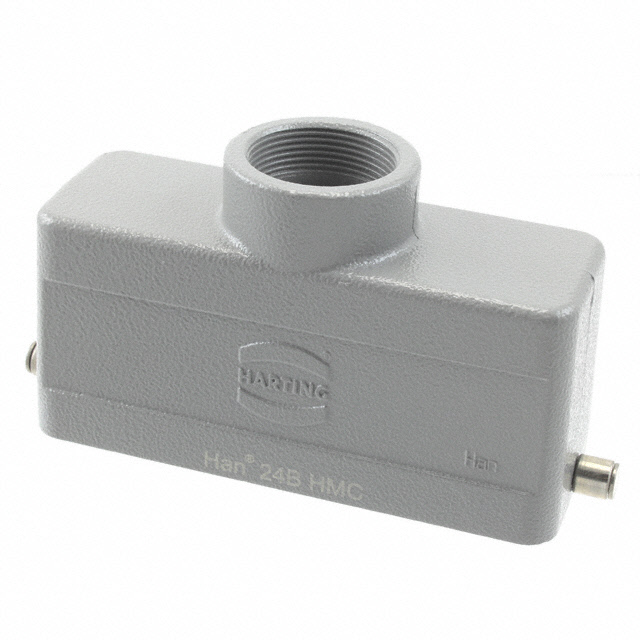

HARTING 19302241442	Powder Coated	24 B	Locking Clip (1) on Base Bottom	Top Entry	43 mm	120 mm	2.165 "	55 mm	4.724 in	1.693 "	Hood	Gray	Aluminum Die Cast	125 °C	-40 C	M32	IP65 - Dust Tight Water Resistant
