845-038 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 38POS 0.100

...

Part	Termination Rows	Material - Insulation	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Positions	Contact Type	Gender	Contact Material	Termination	Number of Positions/Bay/Row [custom]	Flange Feature	Color	Card Type	Number of Rows	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Termination Rows [custom]	Number of Positions/Bay/Row	Number of Rows [custom]

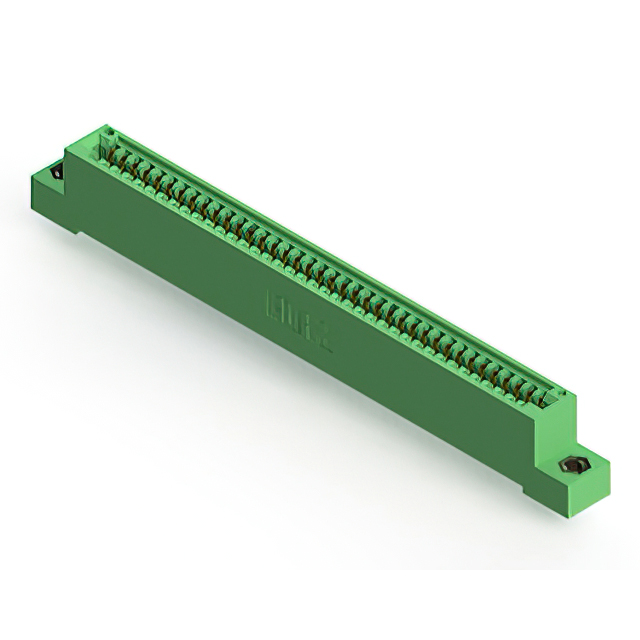

EDAC Inc. 845-038-525-107	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	Single	38	Cantilever	Female	Copper Alloy	Solder	38	Flush Mount M3 Threaded Insert Top Opening	Green	Non Specified - Single Edge	1	Through Hole

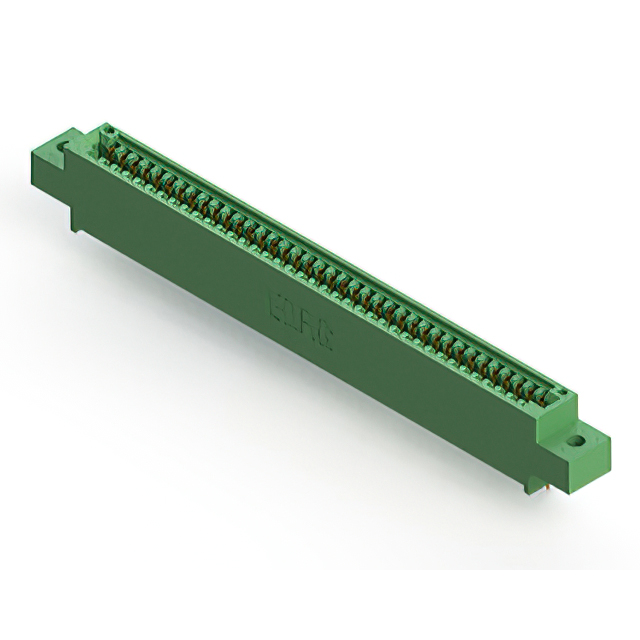

EDAC Inc. 845-038-524-602	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	Single	38	Cantilever	Female	Copper Alloy	Solder	38		Green	Non Specified - Single Edge	1	Through Hole	3.25 mm	0.128 "

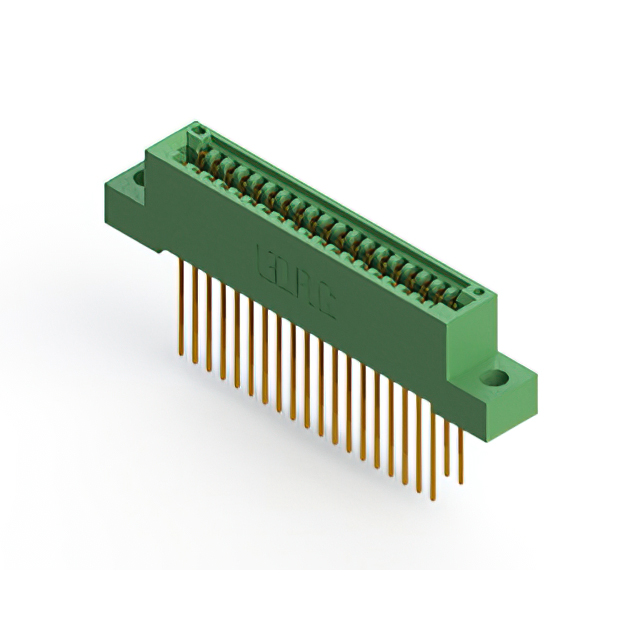

EDAC Inc. 845-038-542-204		Diallyl Phthalate (DAP)	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	Dual	38	Cantilever	Female	Copper Alloy	Wire Wrap		Flush Mount Top Opening Unthreaded	Green	Non Specified - Dual Edge		Through Hole	3.96 mm	0.156 "	2	19	2

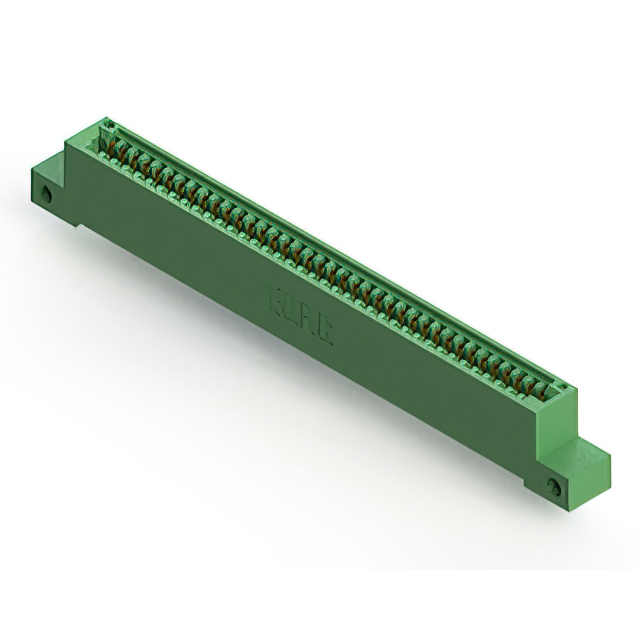

EDAC Inc. 845-038-500-112	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	Single	38	Cantilever	Female	Copper Alloy	Solder Eyelet(s)	38	Flush Mount Side Opening Unthreaded	Green	Non Specified - Single Edge	1	Through Hole	3.25 mm	0.128 "
EDAC Inc. 845-038-541-104	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	Single	38	Cantilever	Female	Copper Alloy	Wire Wrap	38	Flush Mount Top Opening Unthreaded	Green	Non Specified - Single Edge	1	Through Hole	3.96 mm	0.156 "

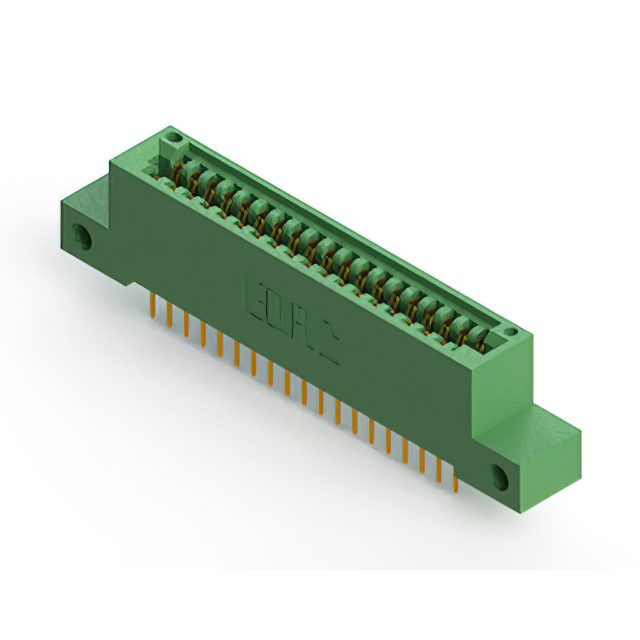

EDAC Inc. 845-038-524-212		Diallyl Phthalate (DAP)	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	Dual	38	Cantilever	Female	Copper Alloy	Solder		Flush Mount Side Opening Unthreaded	Green	Non Specified - Dual Edge		Through Hole	3.25 mm	0.128 "	2	19	2

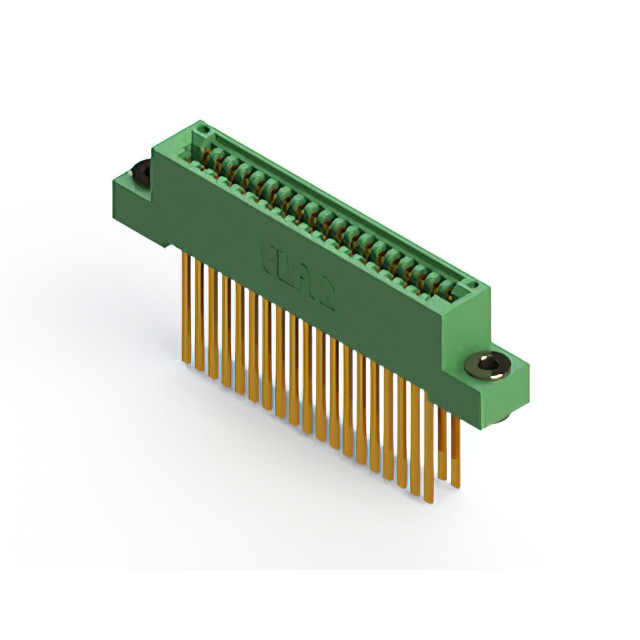

EDAC Inc. 845-038-544-203		Diallyl Phthalate (DAP)	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	Dual	38	Cantilever	Female	Copper Alloy	Wire Wrap		Floating Bobbin Flush Mount	Green	Non Specified - Dual Edge		Through Hole	2.95 mm	0.116 "	2	19	2

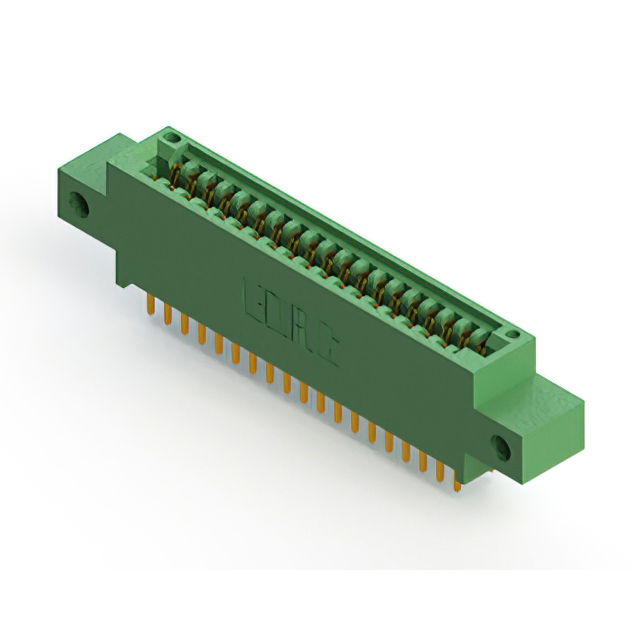

EDAC Inc. 845-038-521-812		Diallyl Phthalate (DAP)	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	Dual	38	Cantilever	Female	Copper Alloy	Solder		Side Mount Opening Unthreaded	Green	Non Specified - Dual Edge		Through Hole	3.25 mm	0.128 "	2	19	2
EDAC Inc. 845-038-523-604	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	Single	38	Cantilever	Female	Copper Alloy	Solder	38		Green	Non Specified - Single Edge	1	Through Hole	3.96 mm	0.156 "

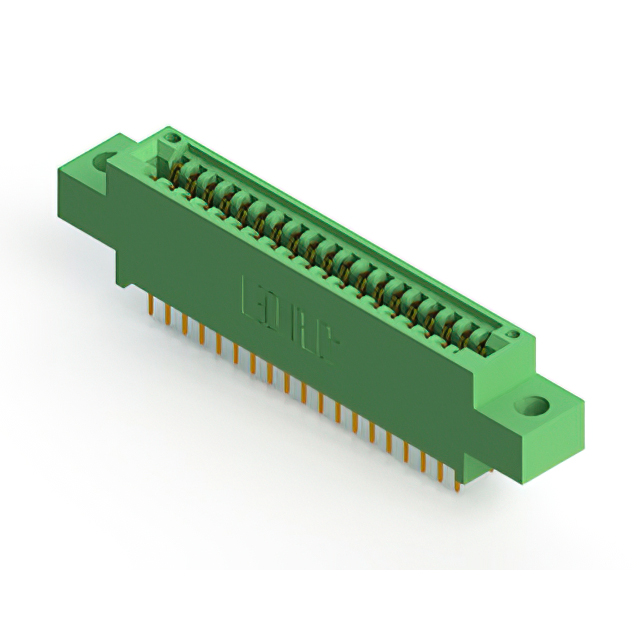

EDAC Inc. 845-038-525-804		Diallyl Phthalate (DAP)	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	125 °C	-40 C	0.25 Ám	10 Áin	Dual	38	Cantilever	Female	Copper Alloy	Solder			Green	Non Specified - Dual Edge		Through Hole	3.96 mm	0.156 "	2	19	2
