1N4148

1N4148 Series

switching diode

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

switching diode

Catalog

switching diode

Part	Operating Temperature - Junction [Max]	Current - Reverse Leakage @ Vr	Technology	Supplier Device Package	Package / Case	Speed	Speed	Mounting Type	Current - Average Rectified (Io)	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If [Max]	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Grade	Qualification	Operating Temperature - Junction [Min]
Vishay General Semiconductor - Diodes Division 1N4148W-E3-18	150 °C	100 çA 100 µA	Standard	SOD-123	SOD-123	200 mA	Any Speed	Surface Mount	150 mA	4 pF	1.2 V	4 ns	75 V

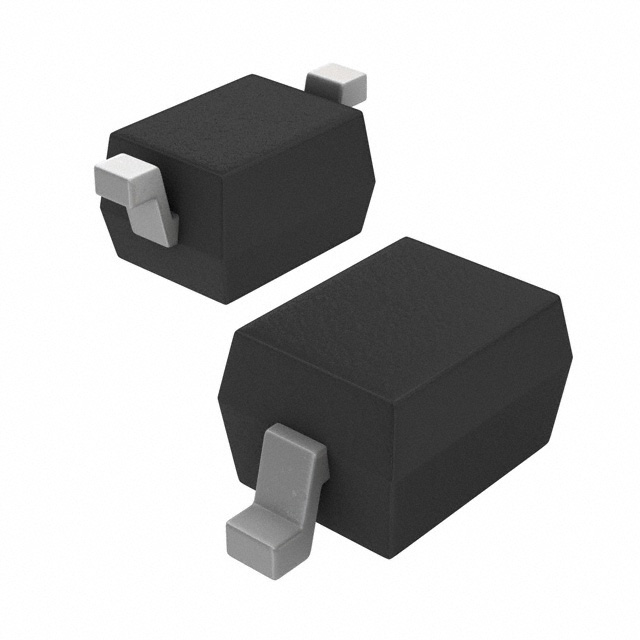

Vishay General Semiconductor - Diodes Division 1N4148WSFL-G3-08	150 °C	5 µA	Standard	SOD-323	SC-76 SOD-323	200 mA	Any Speed	Surface Mount	150 mA		1.2 V	4 ns	75 V

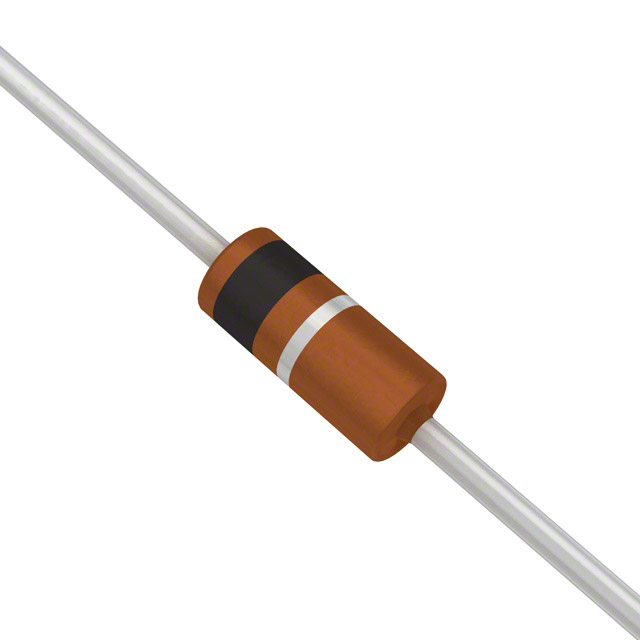

Vishay General Semiconductor - Diodes Division 1N4148-P-TAP	175 ░C	5 µA	Standard	DO-204AH	Axial DO-204AH DO-35	200 mA	Any Speed	Through Hole	150 mA	4 pF		8 ns	75 V	DO-35	1 V	Automotive	AEC-Q101
Vishay General Semiconductor - Diodes Division 1N4148-A	175 ░C	5 µA	Standard	DO-204AH	Axial DO-204AH DO-35	200 mA	Any Speed	Through Hole	150 mA	4 pF		4 ns	75 V	DO-35	1 V			-65 C
Vishay General Semiconductor - Diodes Division 1N4148W-HG3-18	150 °C	100 µA	Standard	SOD-123	SOD-123	200 mA	Any Speed	Surface Mount	150 mA	4 pF	1.2 V	4 ns	75 V			Automotive	AEC-Q101
Vishay General Semiconductor - Diodes Division 1N4148WS-HG3-08	150 °C	100 µA	Standard	SOD-323	SC-76 SOD-323	200 mA	Any Speed	Surface Mount	150 mA		1.2 V	4 ns	100 V			Automotive	AEC-Q101	-55 °C
Vishay General Semiconductor - Diodes Division 1N4148WS-HG3-18	150 °C	100 µA	Standard	SOD-323	SC-76 SOD-323	200 mA	Any Speed	Surface Mount	150 mA		1.2 V	4 ns	100 V			Automotive	AEC-Q101	-55 °C
Vishay General Semiconductor - Diodes Division 1N4148W-HE3-08	150 °C	100 µA	Standard	SOD-123	SOD-123	200 mA	Any Speed	Surface Mount	150 mA		1.2 V	4 ns	75 V			Automotive	AEC-Q101	-55 °C
Vishay General Semiconductor - Diodes Division 1N4148W-HG3-08	150 °C	100 µA	Standard	SOD-123	SOD-123	200 mA	Any Speed	Surface Mount	150 mA	4 pF	1.2 V	4 ns	75 V			Automotive	AEC-Q101
Vishay General Semiconductor - Diodes Division 1N4148WS-E3-18	150 °C	100 µA	Standard	SOD-323	SC-76 SOD-323	200 mA	Any Speed	Surface Mount	150 mA		1.2 V	4 ns	75 V					-55 °C
