TPS61165-Q1 Series

Automotive high brightness White LED driver

Catalog

Automotive high brightness White LED driver

Part	Mounting Type	Voltage - Output [Min]	Voltage - Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Applications	Current - Output / Channel	Voltage - Supply (Max) [Max]	Dimming	Frequency	Number of Outputs	Type	Voltage - Supply (Min) [Min]	Grade	Supplier Device Package	Package / Case	Qualification	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Outputs and Type	Outputs and Type
Texas Instruments TPS61165DRVR	Surface Mount	3 V	38 V	85 °C	-40 °C	Step-Up (Boost)	Backlight	1.2 A	18 V	PWM	1.2 MHz	1	DC DC Regulator	3 V	Automotive	6-WSON (2x2)
Texas Instruments TPS61165DBVT	Surface Mount	3 V	38 V	85 C	-40 °C	Step-Up (Boost)	Backlight	1.2 A	18 V	PWM	1.2 MHz	1	DC DC Regulator	3 V	Automotive	SOT-23-6	SOT-23-6
Texas Instruments TPS61165TDBVRQ1	Surface Mount	3 V	38 V	105 °C	-40 °C	Step-Up (Boost)	Backlight	1.2 A	18 V	PWM	1.2 MHz	1	DC DC Regulator	3 V	Automotive	SOT-23-6	SOT-23-6	AEC-Q100
Texas Instruments TPS61165DBVR	Surface Mount	3 V	38 V	85 °C	-40 °C	Step-Up (Boost)	Backlight	1.2 A	18 V	PWM	1.2 MHz	1	DC DC Regulator	3 V	Automotive	SOT-23-6	SOT-23-6
Texas Instruments TPS61165DRVT	Surface Mount	3 V	38 V	85 °C	-40 °C	Step-Up (Boost)	Backlight	1.2 A	18 V	PWM	1.2 MHz	1	DC DC Regulator	3 V	Automotive	6-WSON (2x2)

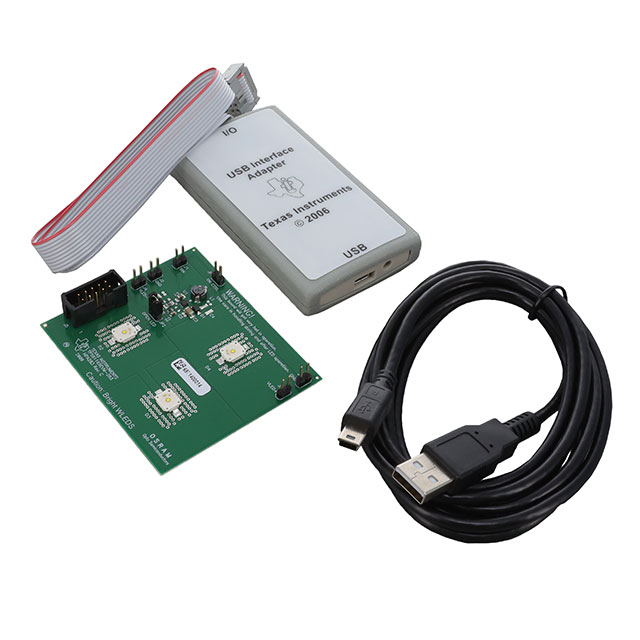

Texas Instruments TPS61165EVM-283								350 mA											TPS61165	3 V	18 V	Accessories Board(s) Cable(s)	Non-Isolated	1
Texas Instruments TPS61165DRVRG4	Surface Mount	3 V	38 V	85 °C	-40 °C	Step-Up (Boost)	Backlight	1.2 A	18 V	PWM	1.2 MHz	1	DC DC Regulator	3 V	Automotive	6-WSON (2x2)
Texas Instruments TPS61165DRVTG4	Surface Mount	3 V	38 V	85 °C	-40 °C	Step-Up (Boost)	Backlight	1.2 A	18 V	PWM	1.2 MHz	1	DC DC Regulator	3 V	Automotive	6-WSON (2x2)

Catalog

Automotive high brightness White LED driver

Key Features

• Qualified for Automotive Applications40-V Maximum Breakdown Voltage of InternalMOSFET38-V Open LED Protection200-mV Reference Voltage With 2% Accuracy1.2-A Switch FET With 1.2-MHz SwitchingFrequencyFlexible 1-Wire Digital and PWM BrightnessControlBuilt-in Soft StartUp to 90% EfficiencySOT-23 PackageQualified for Automotive Applications40-V Maximum Breakdown Voltage of InternalMOSFET38-V Open LED Protection200-mV Reference Voltage With 2% Accuracy1.2-A Switch FET With 1.2-MHz SwitchingFrequencyFlexible 1-Wire Digital and PWM BrightnessControlBuilt-in Soft StartUp to 90% EfficiencySOT-23 Package

Description

With a 40-V rated integrated switch FET, the TPS61165-Q1 device is a boost converter that drives LEDs in series. The boost converter runs at a 1.2-MHz fixed switching frequency with 1.2-A switch current limit, and allows for the use of a high brightness LED in general lighting. The default white LED current is set with the external sensor resistor Rset, and the feedback voltage is regulated to 200 mV, as shown in theTypical Applicationsection. During the operation, the LED current can be controlled using the 1-wire digital interface (EasyScale™ protocol) through the CTRL pin. Alternatively, a pulse width modulation (PWM) signal can be applied to the CTRL pin through which the duty cycle determines the feedback reference voltage. In either digital or PWM mode, the TPS61165-Q1 device does not burst the LED current; therefore, the device does not generate audible noises on the output capacitor. For maximum protection, the TPS61165-Q1 device features integrated open LED protection that disables it to prevent the output from exceeding its absolute maximum voltage ratings during open LED conditions. The TPS61165-Q1 device is available in a SOT-23 package. With a 40-V rated integrated switch FET, the TPS61165-Q1 device is a boost converter that drives LEDs in series. The boost converter runs at a 1.2-MHz fixed switching frequency with 1.2-A switch current limit, and allows for the use of a high brightness LED in general lighting. The default white LED current is set with the external sensor resistor Rset, and the feedback voltage is regulated to 200 mV, as shown in theTypical Applicationsection. During the operation, the LED current can be controlled using the 1-wire digital interface (EasyScale™ protocol) through the CTRL pin. Alternatively, a pulse width modulation (PWM) signal can be applied to the CTRL pin through which the duty cycle determines the feedback reference voltage. In either digital or PWM mode, the TPS61165-Q1 device does not burst the LED current; therefore, the device does not generate audible noises on the output capacitor. For maximum protection, the TPS61165-Q1 device features integrated open LED protection that disables it to prevent the output from exceeding its absolute maximum voltage ratings during open LED conditions. The TPS61165-Q1 device is available in a SOT-23 package.
