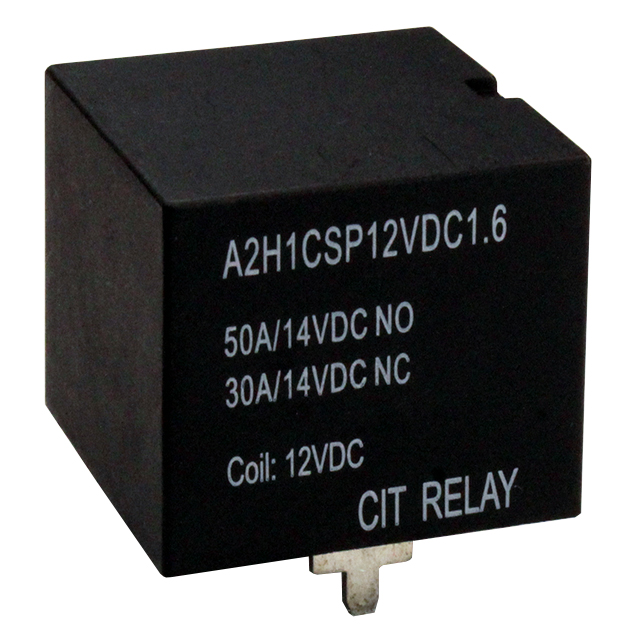

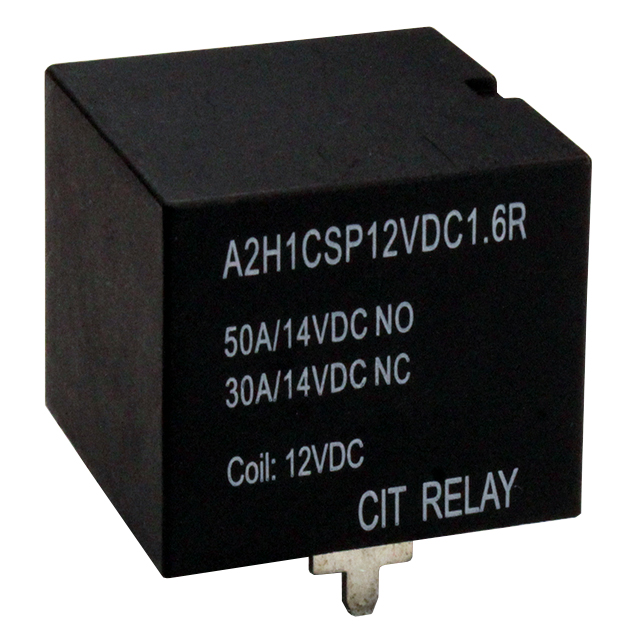

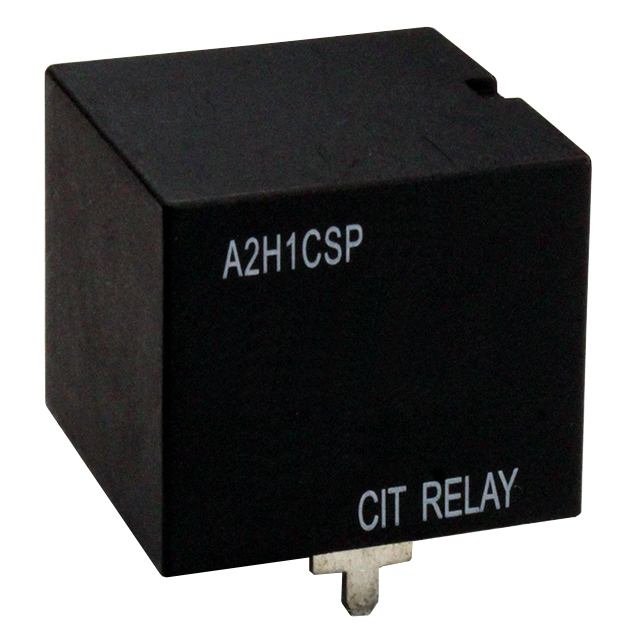

A2H1CSP Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 50A 24V
| Part | Coil Resistance | Contact Material | Release Time | Must Release Voltage | Coil Voltage | Coil Type | Switching Voltage [Max] | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Features | Contact Form | Mounting Type | Operate Time | Coil Current | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 320 Ohms | Silver Tin Oxide (AgSnO) | 10 ms | 2.4 VDC | 24 VDC | Non Latching | 75 VDC | 50 A | 125 °C | -40 C | PC Pin | Resistor | SPDT (1 Form C) | Through Hole | 10 ms | 0.075 A | |
 CIT Relay and Switch | 80 Ohms | Silver Tin Oxide (AgSnO) | 10 ms | 1.2 VDC | 12 VDC | Non Latching | 75 VDC | 50 A | 125 °C | -40 C | PC Pin | Resistor | SPDT (1 Form C) | Through Hole | 10 ms | 0.15 A | 7.8 VDC |
 CIT Relay and Switch | 90 Ohms | Silver Tin Oxide (AgSnO) | 10 ms | 1.2 VDC | 12 VDC | Non Latching | 75 VDC | 50 A | 125 °C | -40 C | PC Pin | SPDT (1 Form C) | Through Hole | 10 ms | 133.3 mA | 7.8 VDC | |
 CIT Relay and Switch | 360 Ohms | Silver Tin Oxide (AgSnO) | 10 ms | 2.4 VDC | 24 VDC | Non Latching | 75 VDC | 50 A | 125 °C | -40 C | PC Pin | SPDT (1 Form C) | Through Hole | 10 ms | 66.7 mA |
