746-006 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 6POS 0.125

Part	Termination Rows	Material - Insulation	Number of Rows	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Color	Number of Positions	Termination	Contact Type	Card Type	Read Out	Contact Finish	Gender	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch
EDAC Inc. 746-006-541-106	1	Polyester Thermoplastic	1	6	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	6	Press-Fit Wire Wrap	Cantilever	Non Specified - Single Edge	Single	Gold	Female	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in
EDAC Inc. 746-006-553-506	1	Polyester Thermoplastic	1	6	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	6	Press-Fit Wire Wrap	Cantilever	Non Specified - Single Edge	Single	Gold	Female	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in

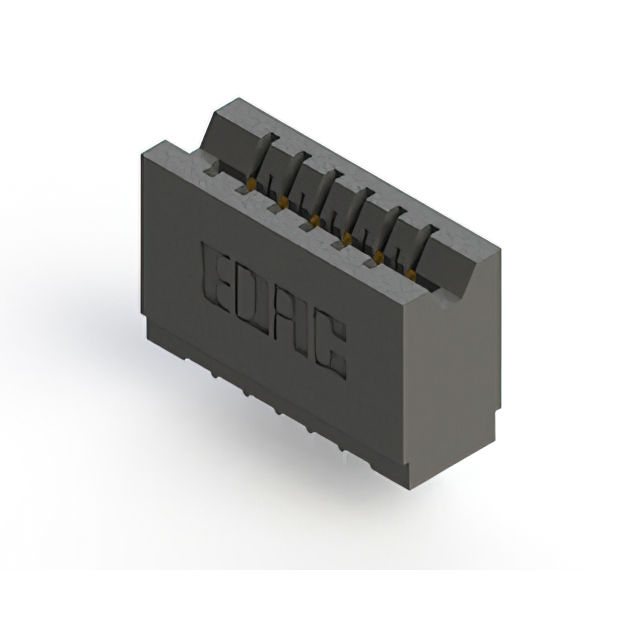

EDAC Inc. 746-006-525-106	1	Polyester Thermoplastic	1	6	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	6	Press-Fit	Cantilever	Non Specified - Single Edge	Single	Gold	Female	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in
EDAC Inc. 746-006-527-101	1	Polyester Thermoplastic	1	6	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	6	Press-Fit	Cantilever	Non Specified - Single Edge	Single	Gold	Female	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in
EDAC Inc. 746-006-520-506	1	Polyester Thermoplastic	1	6	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	6	Press-Fit	Cantilever	Non Specified - Single Edge	Single	Gold	Female	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in
EDAC Inc. 746-006-540-506	1	Polyester Thermoplastic	1	6	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	6	Press-Fit Wire Wrap	Cantilever	Non Specified - Single Edge	Single	Gold	Female	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in

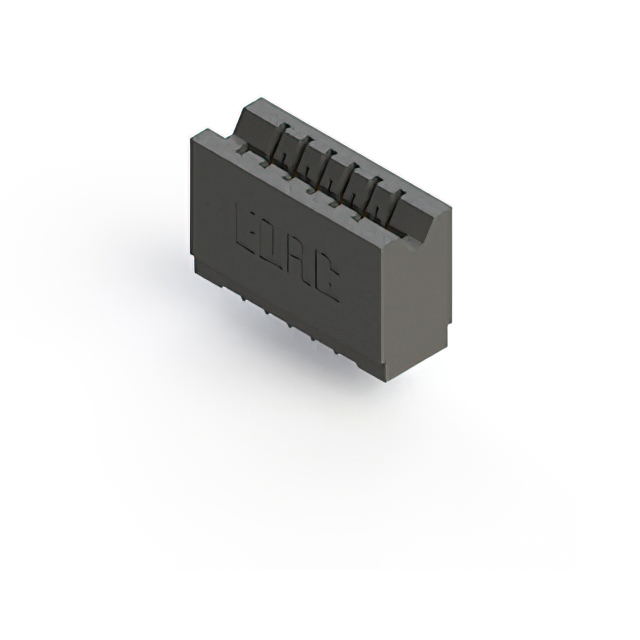

EDAC Inc. 746-006-541-506	1	Polyester Thermoplastic	1	6	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	6	Press-Fit Wire Wrap	Cantilever	Non Specified - Single Edge	Single	Gold	Female	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in

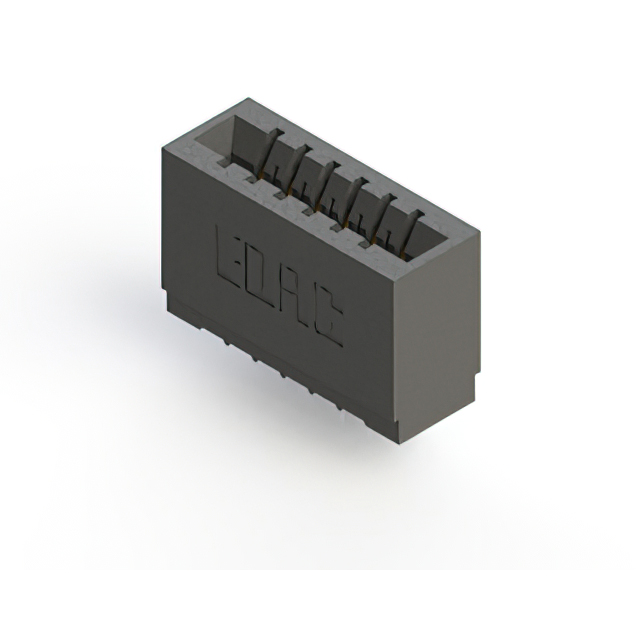

EDAC Inc. 746-006-527-501	1	Polyester Thermoplastic	1	6	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	6	Press-Fit	Cantilever	Non Specified - Single Edge	Single	Gold	Female	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in

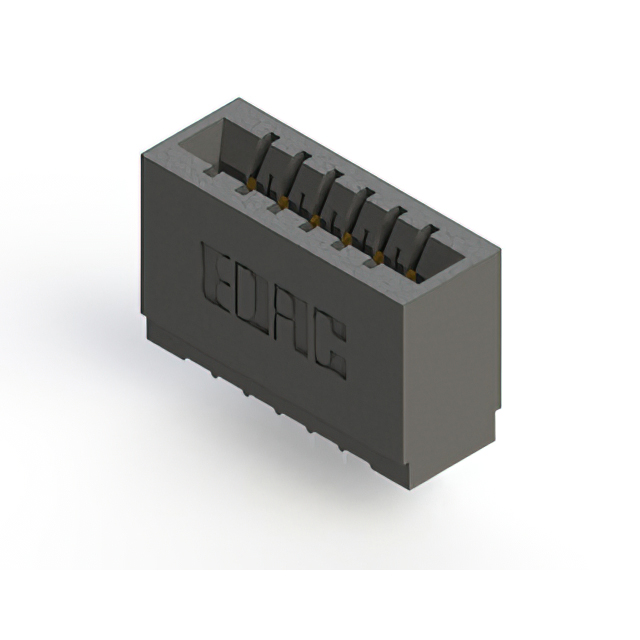

EDAC Inc. 746-006-525-101	1	Polyester Thermoplastic	1	6	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	6	Press-Fit	Cantilever	Non Specified - Single Edge	Single	Gold	Female	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in
EDAC Inc. 746-006-541-501	1	Polyester Thermoplastic	1	6	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	6	Press-Fit Wire Wrap	Cantilever	Non Specified - Single Edge	Single	Gold	Female	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in
