RVAIJ2 Series
Manufacturer: Belden Inc.
Beta
⌘K

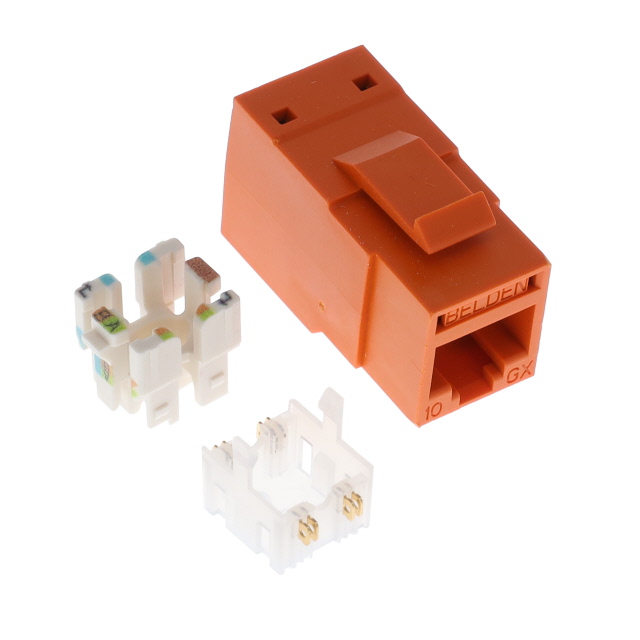

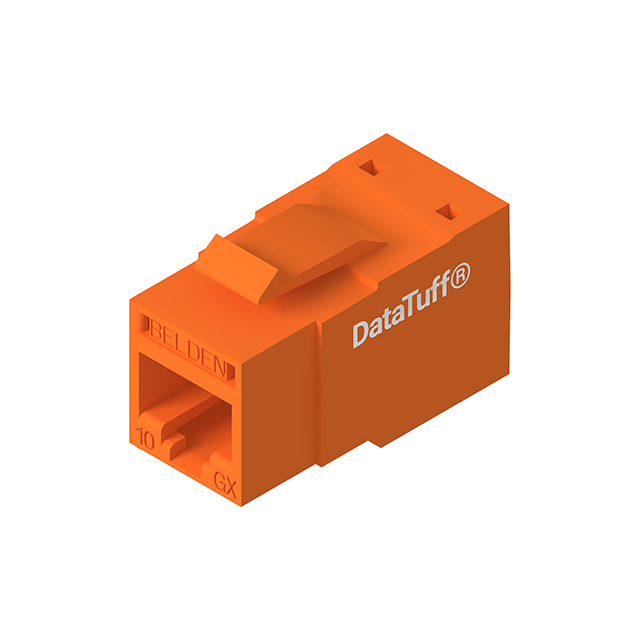

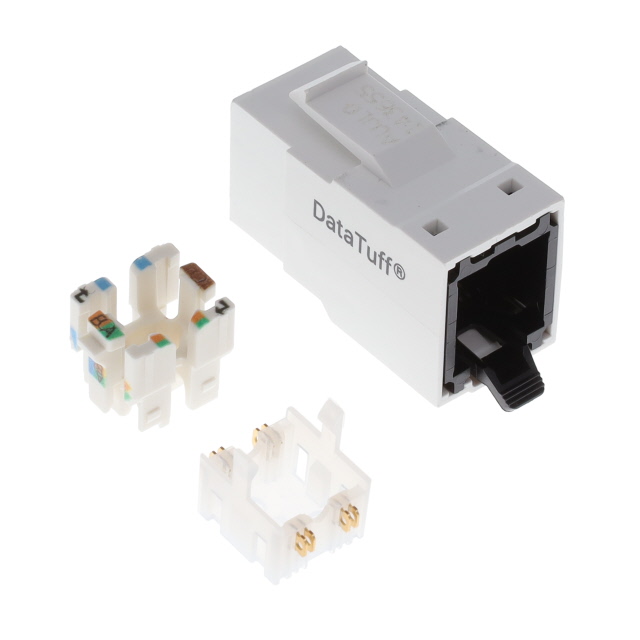

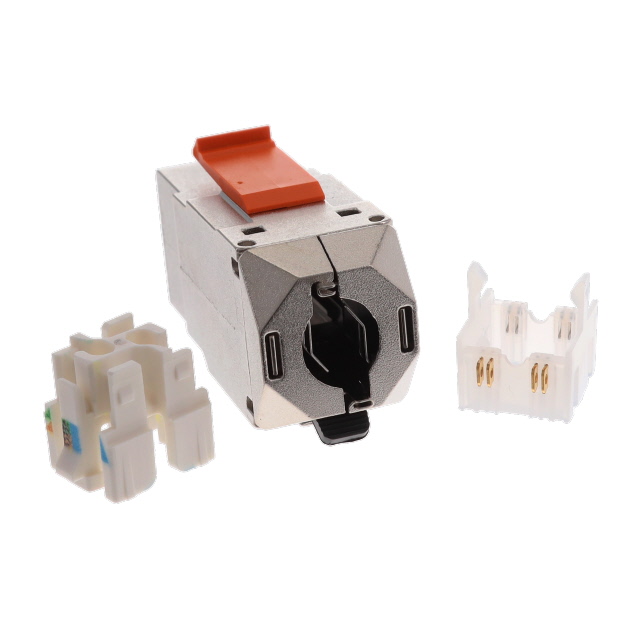

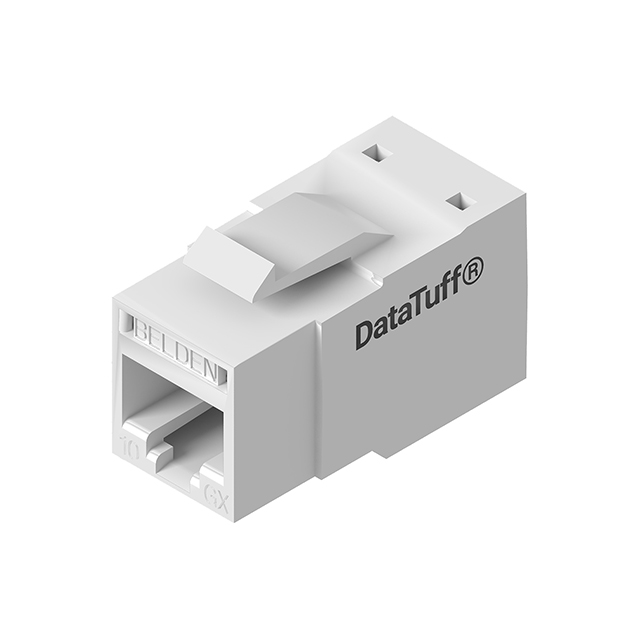

INDUS REVCONN CAT6A JACK E-WHI
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Features | Contact Finish | Connector Type | Number of Ports | Tab Direction | LED Color | Mounting Type | Shielding | Number of Positions/Contacts | Number of Rows | Orientation | Contact Material | Ingress Protection | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | -40 C | 50 µin | 1.27 µm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Lock | Gold | Jack | 1 | Down | Does Not Contain LED | Panel Mount | Unshielded | 8p8c (RJ45 Ethernet) | 1 | Straight | Nickel | IP20 | Cat6a | IDC |
 Belden Inc. | 70 °C | -40 C | 50 µin | 1.27 µm | Zinc Die Cast Nickel Plated | Gold | Jack | 1 | Down | Does Not Contain LED | Panel Mount | Shielded | 8p8c (RJ45 Ethernet) | 1 | Straight | Nickel | IP20 | Cat6a | IDC | |
 Belden Inc. | 70 °C | -40 C | 50 µin | 1.27 µm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Lock | Gold | Jack | 1 | Down | Does Not Contain LED | Panel Mount | Unshielded | 8p8c (RJ45 Ethernet) | 1 | Straight | Nickel | IP20 | Cat6a | IDC |
 Belden Inc. | 70 °C | -40 C | 50 µin | 1.27 µm | Zinc Die Cast Nickel Plated | Gold | Jack | 1 | Down | Does Not Contain LED | Panel Mount | Shielded | 8p8c (RJ45 Ethernet) | 1 | Straight | Nickel | IP20 | Cat6a | IDC | |
 Belden Inc. | 70 °C | -40 C | 50 µin | 1.27 µm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Lock | Gold | Jack | 1 | Down | Does Not Contain LED | Panel Mount | Unshielded | 8p8c (RJ45 Ethernet) | 1 | Straight | Nickel | IP20 | Cat6a | IDC |
 Belden Inc. | 70 °C | -40 C | 50 µin | 1.27 µm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Lock | Gold | Jack | 1 | Down | Does Not Contain LED | Panel Mount | Unshielded | 8p8c (RJ45 Ethernet) | 1 | Straight | Nickel | IP20 | Cat6a | IDC |
 Belden Inc. | 70 °C | -40 C | 50 µin | 1.27 µm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Lock | Gold | Jack | 1 | Down | Does Not Contain LED | Panel Mount | Unshielded | 8p8c (RJ45 Ethernet) | 1 | Straight | Nickel | IP20 | Cat6a | IDC |
 Belden Inc. | 70 °C | -40 C | 50 µin | 1.27 µm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Lock | Gold | Jack | 1 | Down | Does Not Contain LED | Panel Mount | Unshielded | 8p8c (RJ45 Ethernet) | 1 | Straight | Nickel | IP20 | Cat6a | IDC |
Belden Inc. | 70 °C | -40 C | 50 µin | 1.27 µm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Lock | Gold | Jack | 1 | Down | Does Not Contain LED | Panel Mount | Unshielded | 8p8c (RJ45 Ethernet) | 1 | Straight | Nickel | IP20 | Cat6a | IDC |
 Belden Inc. | 70 °C | -40 C | 50 µin | 1.27 µm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Lock | Gold | Jack | 1 | Down | Does Not Contain LED | Panel Mount | Unshielded | 8p8c (RJ45 Ethernet) | 1 | Straight | Nickel | IP20 | Cat6a | IDC |
