A9TS11 Series

Catalog

SWITCH TOGGLE SPDT 100MA 28V

Part	Electrical Life	Termination Style	Actuator Type	Illumination	Circuit	Switch Function	Actuator Length [x]	Voltage Rating - AC	Voltage Rating - DC	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Current Rating (Amps)	Ingress Protection
Omron Electronics Inc-EMC Div A9TS110013	50000 Cycles	PC Pin	Standard Round	Non-Illuminated	SPDT	On-On	3.8 mm	28 V	28 V	Unthreaded	80 °C	-20 ░C	Sealed - Flux Protection	Right Angle Through Hole Vertical	100 mA	IP64 - Dust Tight Water Resistant
Omron Electronics Inc-EMC Div A9TS11-0011	50000 Cycles	PC Pin	Standard Round	Non-Illuminated	SPDT	On-On	3.8 mm	28 V	28 V	Unthreaded	80 °C	-20 ░C	Sealed - Flux Protection	Through Hole	100 mA	IP64 - Dust Tight Water Resistant

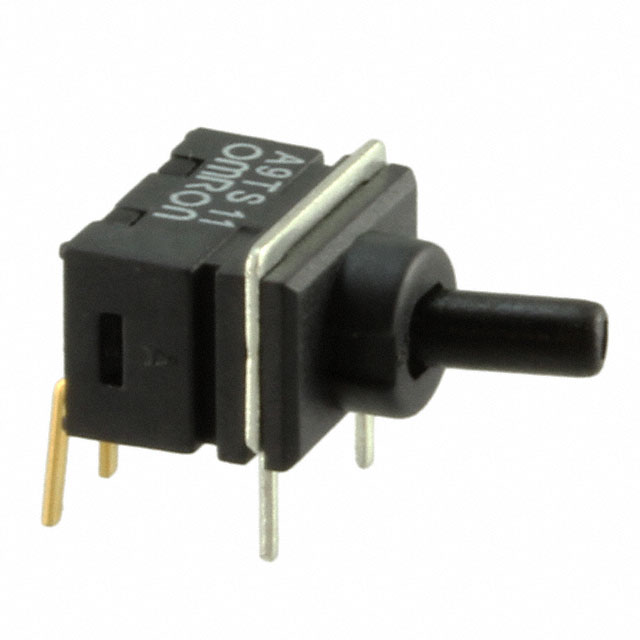

Omron Electronics Inc-EMC Div A9TS11-0012	50000 Cycles	PC Pin	Standard Round	Non-Illuminated	SPDT	On-On	3.8 mm	28 V	28 V	Unthreaded	80 °C	-20 ░C	Sealed - Flux Protection	Right Angle Through Hole	100 mA	IP64 - Dust Tight Water Resistant
