CFS-0200 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Length [x]	Length [x]	Electrical Life	Body Material	Contact Finish	Termination Style	Height Above Board [z]	Height Above Board [z]	Mounting Type	Pitch	Pitch	Voltage Rating	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Level	Circuit	Current Rating (Amps)	Contact Material	Number of Positions
Nidec Components Corporation CFS-0200MA	6.5 mm	0.256 in	1000 Cycles	Polyphenylene Sulfide (PPS)	Gold	J Lead	0.154 in	3.9 mm	Surface Mount	2.54 mm	0.1 "	6 V	Slide (Standard)	85 °C	-40 C	Tape Seal	Flush Recessed	SPST	100 mA	Copper Alloy	2

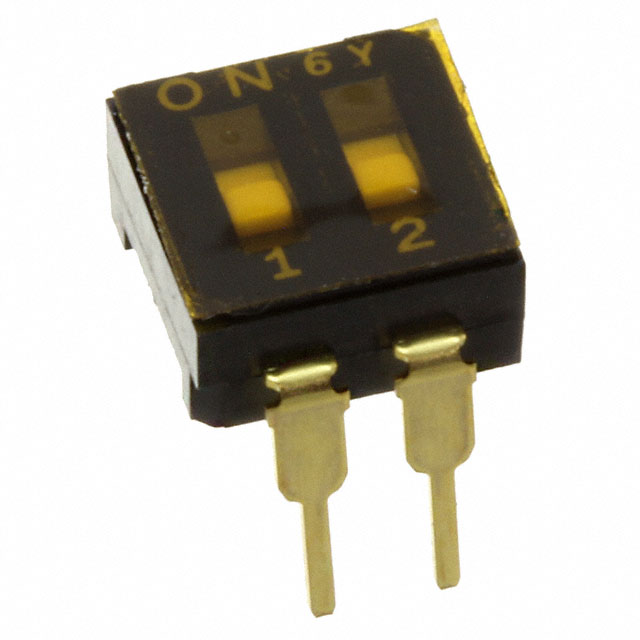

Nidec Components Corporation CFS-0200MC	6.5 mm	0.256 in	1000 Cycles	Polyphenylene Sulfide (PPS)	Gold	PC Pin	0.177 in	4.5 mm	Through Hole	2.54 mm	0.1 "	6 V	Slide (Standard)	85 °C	-40 C	Tape Seal	Flush Recessed	SPST	100 mA	Copper Alloy	2
Nidec Components Corporation CFS-0200TB	6.5 mm	0.256 in	1000 Cycles	Polyphenylene Sulfide (PPS)	Gold	Gull Wing	0.146 in	3.7 mm	Surface Mount	2.54 mm	0.1 "	6 V	Slide (Standard)	85 °C	-40 C	Tape Seal	Flush Recessed	SPST	100 mA	Copper Alloy	2

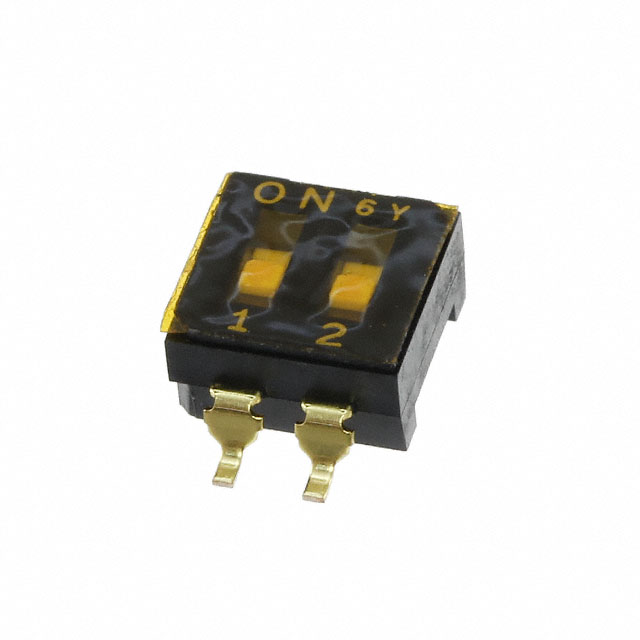

Nidec Components Corporation CFS-0200MB	6.5 mm	0.256 in	1000 Cycles	Polyphenylene Sulfide (PPS)	Gold	Gull Wing	0.146 in	3.7 mm	Surface Mount	2.54 mm	0.1 "	6 V	Slide (Standard)	85 °C	-40 C	Tape Seal	Flush Recessed	SPST	100 mA	Copper Alloy	2
Nidec Components Corporation CFS-0200TA	6.5 mm	0.256 in	1000 Cycles	Polyphenylene Sulfide (PPS)	Gold	J Lead	0.154 in	3.9 mm	Surface Mount	2.54 mm	0.1 "	6 V	Slide (Standard)	85 °C	-40 C	Tape Seal	Flush Recessed	SPST	100 mA	Copper Alloy	2
