746-044 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 44POS 0.125

Part	Termination Rows	Material - Insulation	Number of Positions/Bay/Row	Color	Number of Positions	Read Out	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Pitch	Pitch	Contact Finish	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Gender	Mounting Type	Termination Rows [custom]	Number of Rows [custom]

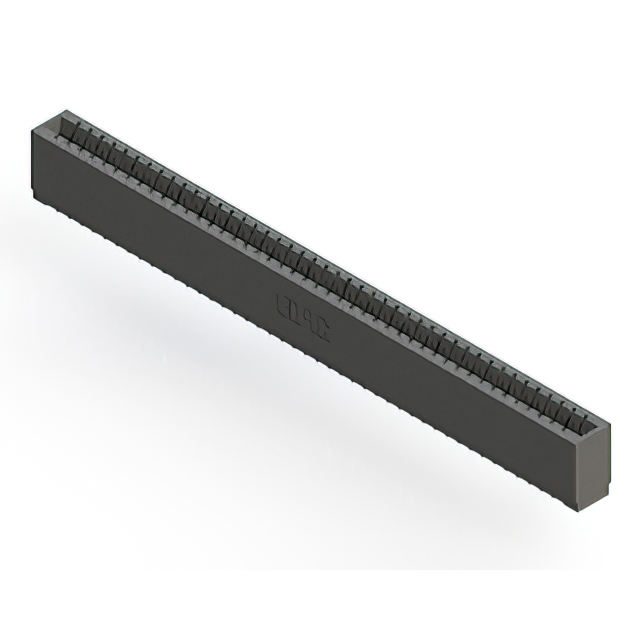

EDAC Inc. 746-044-520-101	1	Polyester Thermoplastic	44	Black	44	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Non Specified - Single Edge	3.18 mm	0.125 in	Gold	1	Cantilever	-40 C	105 ░C	Press-Fit	Copper Alloy	Female	Through Hole
EDAC Inc. 746-044-545-506	1	Polyester Thermoplastic	44	Black	44	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Non Specified - Single Edge	3.18 mm	0.125 in	Gold	1	Cantilever	-40 C	105 ░C	Press-Fit Wire Wrap	Copper Alloy	Female	Through Hole

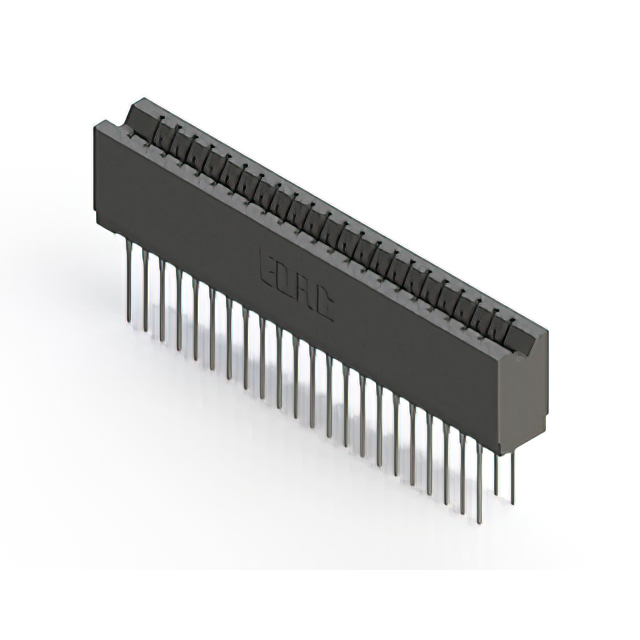

EDAC Inc. 746-044-540-606		Polyester Thermoplastic	22	Black	44	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold		Cantilever	-40 C	105 ░C	Press-Fit Wire Wrap	Copper Alloy	Female	Through Hole	2	2
EDAC Inc. 746-044-527-201		Polyester Thermoplastic	22	Black	44	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold		Cantilever	-40 C	105 ░C	Press-Fit	Copper Alloy	Female	Through Hole	2	2

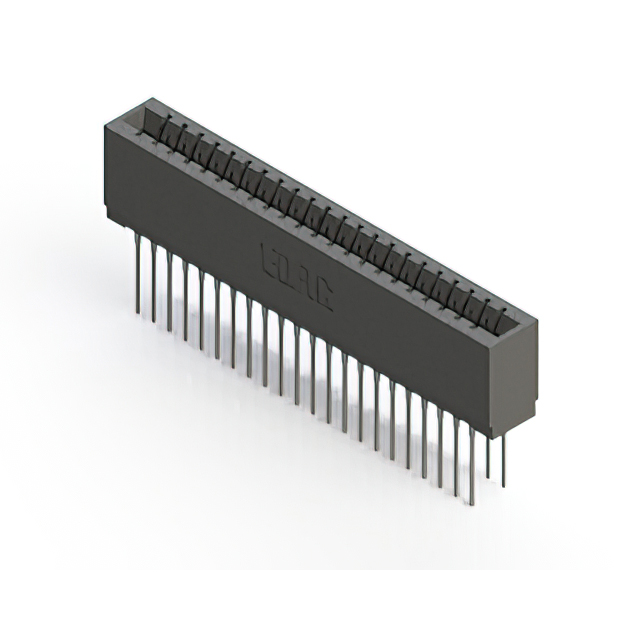

EDAC Inc. 746-044-553-201		Polyester Thermoplastic	22	Black	44	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold		Cantilever	-40 C	105 ░C	Press-Fit Wire Wrap	Copper Alloy	Female	Through Hole	2	2
EDAC Inc. 746-044-525-501	1	Polyester Thermoplastic	44	Black	44	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Non Specified - Single Edge	3.18 mm	0.125 in	Gold	1	Cantilever	-40 C	105 ░C	Press-Fit	Copper Alloy	Female	Through Hole
EDAC Inc. 746-044-540-106	1	Polyester Thermoplastic	44	Black	44	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Non Specified - Single Edge	3.18 mm	0.125 in	Gold	1	Cantilever	-40 C	105 ░C	Press-Fit Wire Wrap	Copper Alloy	Female	Through Hole

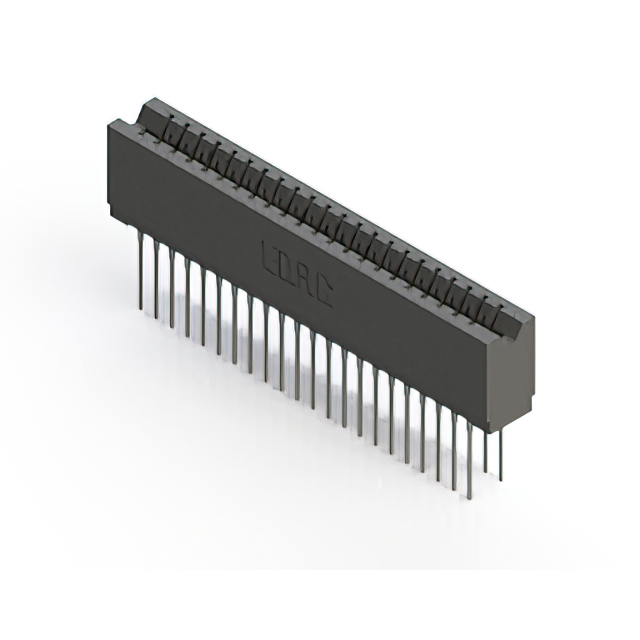

EDAC Inc. 746-044-541-206		Polyester Thermoplastic	22	Black	44	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold		Cantilever	-40 C	105 ░C	Press-Fit Wire Wrap	Copper Alloy	Female	Through Hole	2	2
EDAC Inc. 746-044-545-601		Polyester Thermoplastic	22	Black	44	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold		Cantilever	-40 C	105 ░C	Press-Fit Wire Wrap	Copper Alloy	Female	Through Hole	2	2
EDAC Inc. 746-044-525-606		Polyester Thermoplastic	22	Black	44	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Non Specified - Dual Edge	3.18 mm	0.125 in	Gold		Cantilever	-40 C	105 ░C	Press-Fit	Copper Alloy	Female	Through Hole	2	2
