2M1-DP1 Series

Catalog

SWITCH TOGGLE DPDT 0.4VA 20V

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Ingress Protection	Mounting Type	Actuator Type	Switch Function	Illumination	Termination Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Actuator Length [x]	Voltage Rating - DC	Bushing Thread	Panel Cutout Dimensions [diameter]
Carling Technologies 2M1-DP1-T2-B4-M7KE	Brass Chrome Plated	50000 Cycles	20 V	IP67 - Dust Tight Waterproof	Right Angle Through Hole Vertical	Standard Round	On-On	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	85 °C	-30 ░C	DPDT	0.4 VA	5.41 mm	20 V	Unthreaded
Carling Technologies 2M1-DP1-T1-B1-M1GE	Brass Chrome Plated	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount	Standard Round	On-On	Non-Illuminated	Solder Lug	Epoxy Sealed Terminals	85 °C	-30 ░C	DPDT	5 A	10.39 mm	28 V	1/4-40	0.25 in
Carling Technologies 2M1-DP1-T1-B2-VS4RE	Brass Chrome Plated	50000 Cycles	20 V	IP67 - Dust Tight Waterproof	Through Hole	Standard Round	On-On	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	85 °C	-30 ░C	DPDT	0.4 VA	10.39 mm	20 V	Unthreaded
Carling Technologies 2M1-DP1-T1-B2-M1GE	Brass Chrome Plated	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount	Standard Round	On-On	Non-Illuminated	Solder Lug	Epoxy Sealed Terminals	85 °C	-30 ░C	DPDT	5 A	10.39 mm	28 V	Unthreaded
Carling Technologies 2M1-DP1-TA-BL-M6RE	Brass Chrome Plated	50000 Cycles	20 V		Right Angle Through Hole	Locking Lever	On-On	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	85 °C	-30 ░C	DPDT	0.4 VA		20 V
Carling Technologies 2M1-DP1-T8-B0-VS4QE	Brass Chrome Plated	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount	Anti-Rotation	On-On	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	85 °C	-30 ░C	DPDT	5 A	17.5 mm	28 V	15/32-32	11.91 mm

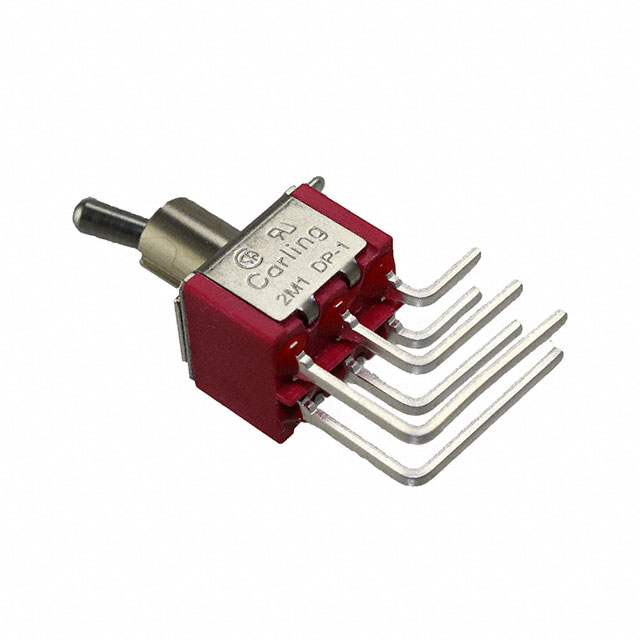

Carling Technologies 2M1-DP1-T2-B4-M7QE	Brass Chrome Plated	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	Right Angle Through Hole Vertical	Standard Round	On-On	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	85 °C	-30 ░C	DPDT	5 A	5.4 mm	28 V	Unthreaded
Carling Technologies 2M1-DP1-T5-B5-M1QE	Brass Chrome Plated	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount	Paddle	On-On	Non-Illuminated	Solder Lug	Epoxy Sealed Terminals	85 °C	-30 ░C	DPDT	5 A	21.41 mm	28 V	1/4-40	0.25 in
Carling Technologies 2M1-DP1-T1-B9-M2QE	Brass Chrome Plated	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount	Standard Round	On-On	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	85 °C	-30 ░C	DPDT	5 A	10.39 mm	28 V	1/4-40	0.25 in
Carling Technologies 2M1-DP1-T1-B7-M7QE	Brass Chrome Plated	50000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Vertical	Standard Round	On-On	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	85 °C	-30 ░C	DPDT	5 A	10.39 mm	28 V	1/4-40	0.25 in
