845-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K

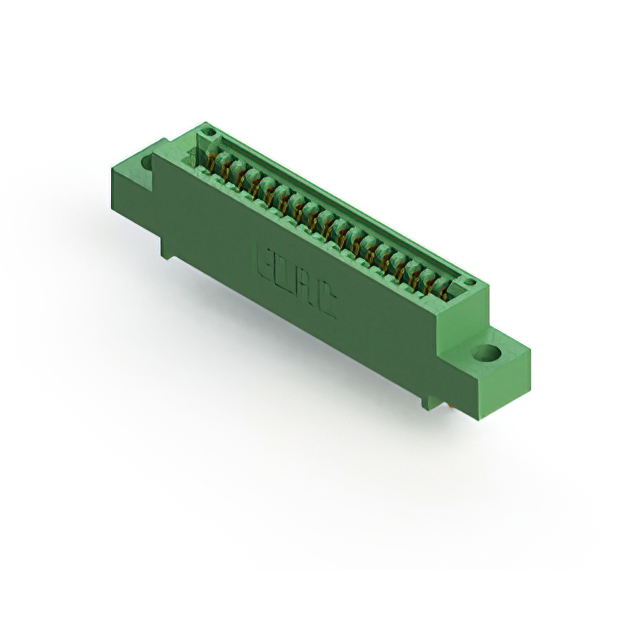

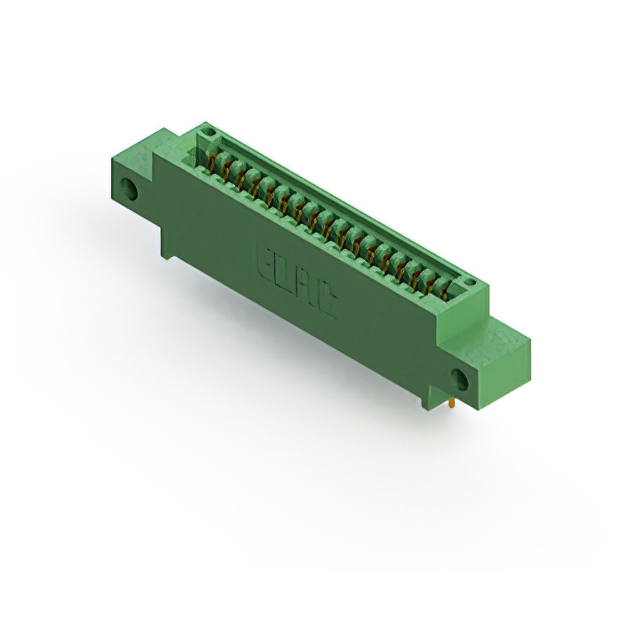

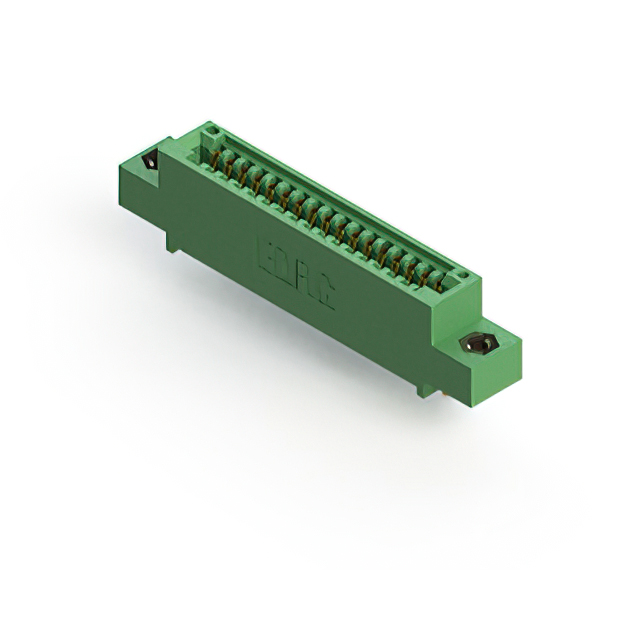

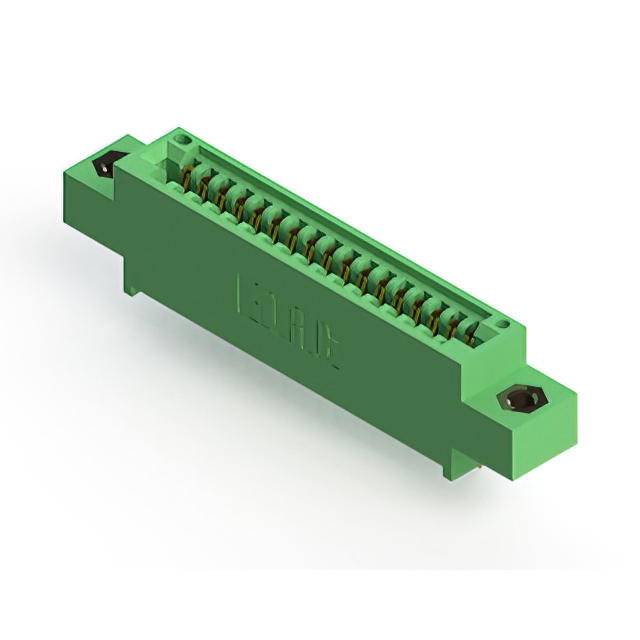

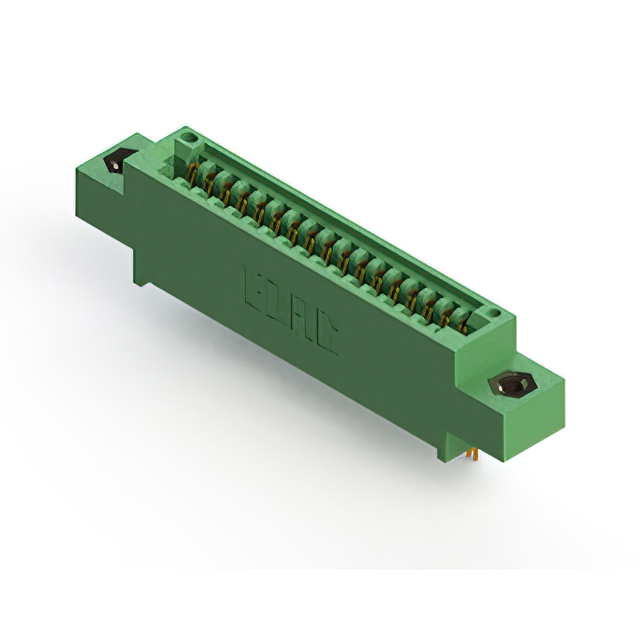

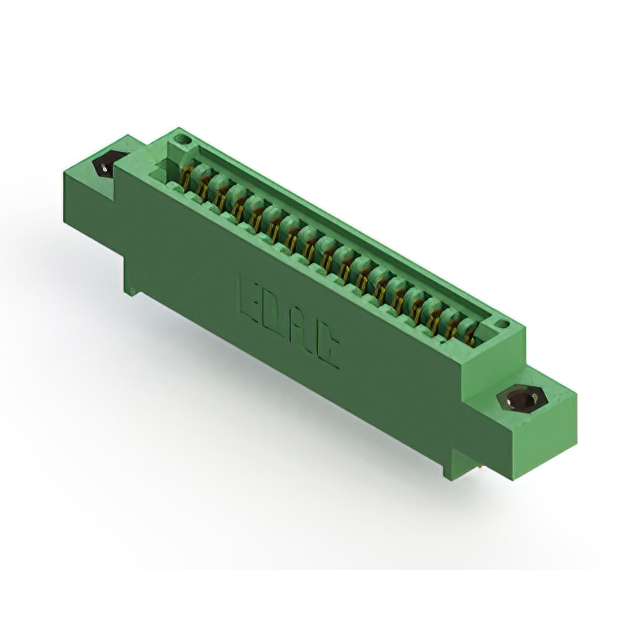

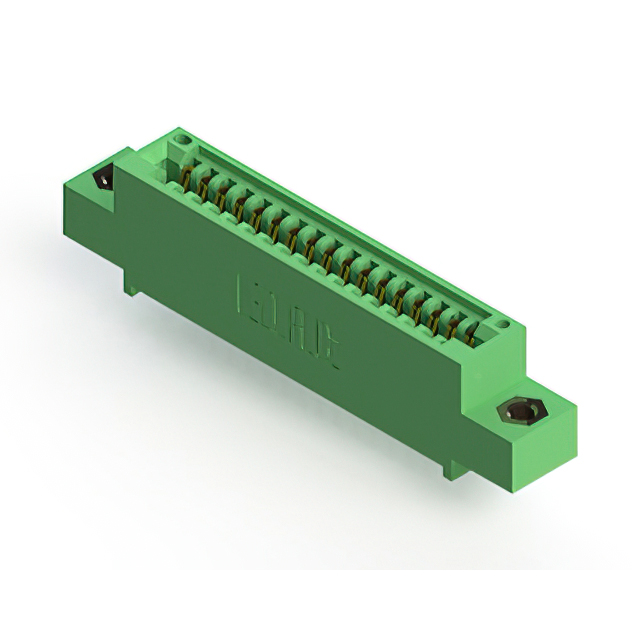

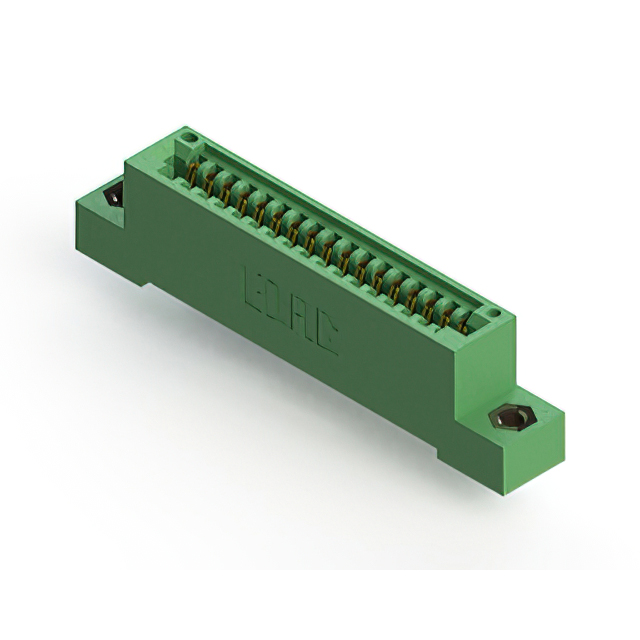

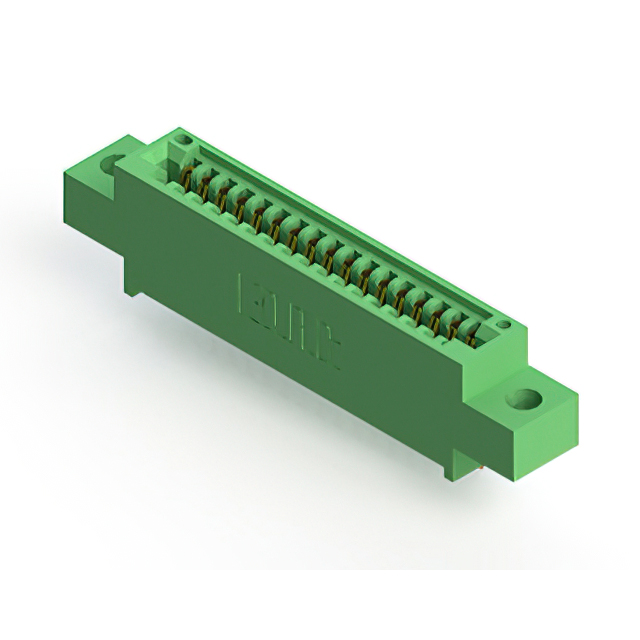

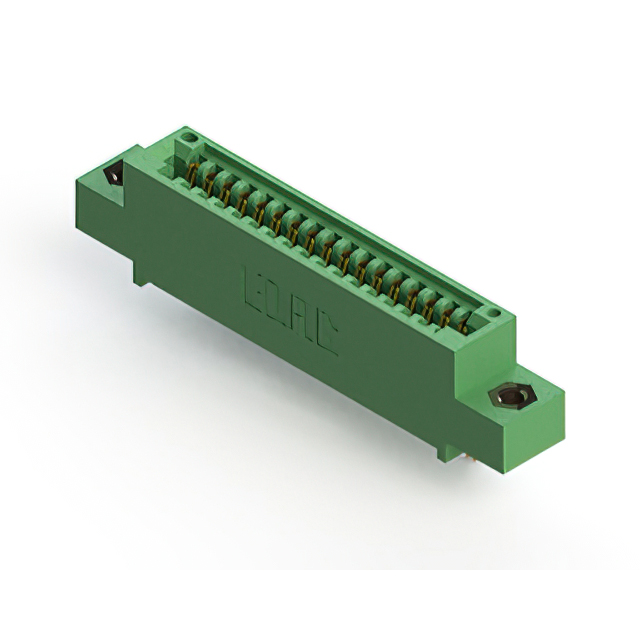

CONN EDGE SINGLE FML 17POS 0.100
| Part | Material - Insulation | Termination Rows | Color | Contact Type | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows | Pitch | Pitch | Mounting Type | Termination | Gender | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Cantilever | Non Specified - Single Edge | 125 °C | -40 C | 17 | 0.25 Ám | 10 Áin | Copper Alloy | Single | 0.156 " | 3.96 mm | 1 | 0.1 " | 2.54 mm | Through Hole | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Cantilever | Non Specified - Single Edge | 125 °C | -40 C | 17 | 0.25 Ám | 10 Áin | Copper Alloy | Single | 1 | 0.1 " | 2.54 mm | Through Hole | Wire Wrap | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Cantilever | Non Specified - Single Edge | 125 °C | -40 C | 17 | 0.25 Ám | 10 Áin | Copper Alloy | Single | 0.156 " | 3.96 mm | 1 | 0.1 " | 2.54 mm | Through Hole | Wire Wrap | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Cantilever | Non Specified - Single Edge | 125 °C | -40 C | 17 | 0.25 Ám | 10 Áin | Copper Alloy | Single | 1 | 0.1 " | 2.54 mm | Through Hole | Solder Eyelet(s) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Cantilever | Non Specified - Single Edge | 125 °C | -40 C | 17 | 0.25 Ám | 10 Áin | Copper Alloy | Single | 1 | 0.1 " | 2.54 mm | Through Hole | Solder Eyelet(s) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Cantilever | Non Specified - Single Edge | 125 °C | -40 C | 17 | 0.25 Ám | 10 Áin | Copper Alloy | Single | 1 | 0.1 " | 2.54 mm | Through Hole | Solder Eyelet(s) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Cantilever | Non Specified - Single Edge | 125 °C | -40 C | 17 | 0.25 Ám | 10 Áin | Copper Alloy | Single | 0.128 " | 3.25 mm | 1 | 0.1 " | 2.54 mm | Through Hole | Wire Wrap | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Side Mount Opening Unthreaded |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Cantilever | Non Specified - Single Edge | 125 °C | -40 C | 17 | 0.25 Ám | 10 Áin | Copper Alloy | Single | 1 | 0.1 " | 2.54 mm | Through Hole | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Cantilever | Non Specified - Single Edge | 125 °C | -40 C | 17 | 0.25 Ám | 10 Áin | Copper Alloy | Single | 0.128 " | 3.25 mm | 1 | 0.1 " | 2.54 mm | Through Hole | Wire Wrap | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Cantilever | Non Specified - Single Edge | 125 °C | -40 C | 17 | 0.25 Ám | 10 Áin | Copper Alloy | Single | 1 | 0.1 " | 2.54 mm | Through Hole | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | M3 Threaded Insert Top Mount Opening |
