887-024 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 24POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Termination	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Rows [custom]	Number of Positions	Contact Finish	Read Out	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Color	Pitch	Pitch	Contact Material	Features	Termination Rows	Number of Rows
EDAC Inc. 887-024-559-203	Polyphenylene Sulfide (PPS)	2	Solder	12	125 °C	-40 C	Cantilever	2	24	Gold	Dual	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Female	Black	3.96 mm	0.156 in	Copper Alloy
EDAC Inc. 887-024-555-802	Polyphenylene Sulfide (PPS)	2	Solder	12	125 °C	-40 C	Cantilever	2	24	Gold	Dual	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.128 "		3.25 mm	Female	Black	3.96 mm	0.156 in	Copper Alloy	Card Extender
EDAC Inc. 887-024-556-204	Polyphenylene Sulfide (PPS)	2	Solder	12	125 °C	-40 C	Cantilever	2	24	Gold	Dual	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Female	Black	3.96 mm	0.156 in	Copper Alloy	Card Extender

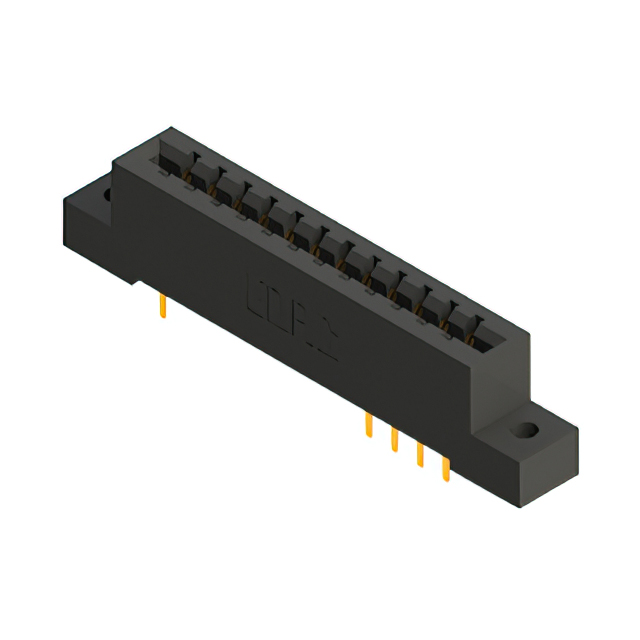

EDAC Inc. 887-024-520-202	Polyphenylene Sulfide (PPS)	2	Solder	12	125 °C	-40 C	Cantilever	2	24	Gold	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Female	Black	3.96 mm	0.156 in	Copper Alloy
EDAC Inc. 887-024-559-808	Polyphenylene Sulfide (PPS)	2	Solder	12	125 °C	-40 C	Cantilever	2	24	Gold	Dual	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin		4-40 Threaded Insert Top Mount Opening		Female	Black	3.96 mm	0.156 in	Copper Alloy
EDAC Inc. 887-024-544-804	Polyphenylene Sulfide (PPS)	2	Wire Wrap	12	125 °C	-40 C	Cantilever	2	24	Gold	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.156 "		3.96 mm	Female	Black	3.96 mm	0.156 in	Copper Alloy
EDAC Inc. 887-024-500-207	Polyphenylene Sulfide (PPS)	2	Solder Eyelet(s)	12	125 °C	-40 C	Cantilever	2	24	Gold	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin		Flush Mount M3 Threaded Insert Top Opening		Female	Black	3.96 mm	0.156 in	Copper Alloy

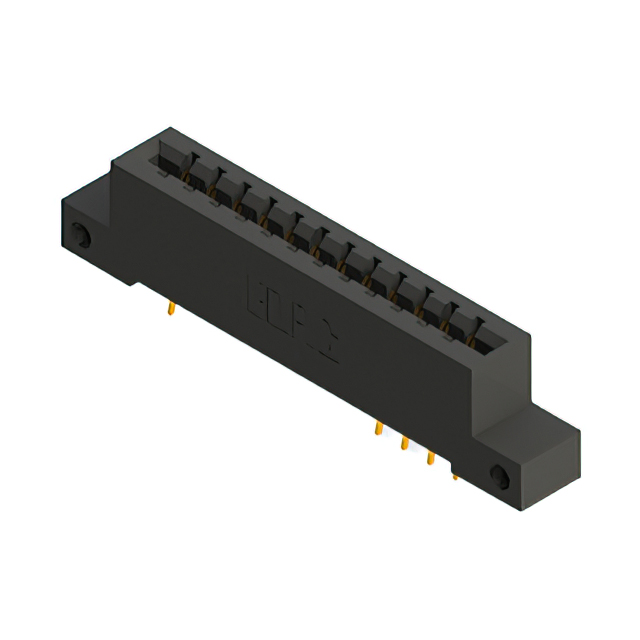

EDAC Inc. 887-024-556-212	Polyphenylene Sulfide (PPS)	2	Solder	12	125 °C	-40 C	Cantilever	2	24	Gold	Dual	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Female	Black	3.96 mm	0.156 in	Copper Alloy	Card Extender
EDAC Inc. 887-024-559-202	Polyphenylene Sulfide (PPS)	2	Solder	12	125 °C	-40 C	Cantilever	2	24	Gold	Dual	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Female	Black	3.96 mm	0.156 in	Copper Alloy
EDAC Inc. 887-024-558-103	Polyphenylene Sulfide (PPS)		Solder	24	125 °C	-40 C	Cantilever		24	Gold	Single	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	0.25 Ám	10 Áin	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Female	Black	3.96 mm	0.156 in	Copper Alloy		1	1
