LAG6SP Series

Catalog

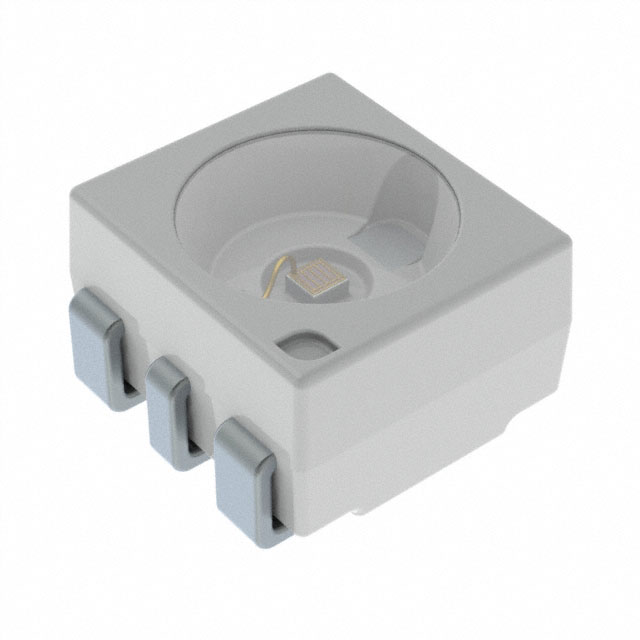

LED TOPLED AMBER 617NM 6PLCC

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Color	Supplier Device Package	Wavelength	Wavelength [Max]	Wavelength [Min]	Temperature - Test	Current - Test	Mounting Type	Voltage - Forward (Vf) (Typ)	Viewing Angle	Current - Max [Max]	Thermal Resistance of Package	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature
ams-OSRAM USA INC. LA G6SP.01-8D6F-24-G3R3-140-R18-Z	2.1 mm	0.083 in	0.118 in	0.13 "	3.3 mm	3 mm	6-PLCC	Amber	6-PLCC	617 nm	624 nm	612 nm	25 °C	140 mA	Surface Mount	2.2 V	120 °	200 mA
ams-OSRAM USA INC. LA G6SP-DAFA-24-1-140-R18-Z	2.1 mm	0.083 in	0.118 in	0.13 "	3.3 mm	3 mm	6-SMD J-Lead	Amber	6-PLCC	617 nm	624 nm	612 nm	25 °C	140 mA	Surface Mount	2.15 V	120 °	200 mA	60 °C/W	30 lm/W	9 lm
