9578 Series
Manufacturer: Belden Inc.
Beta
⌘K

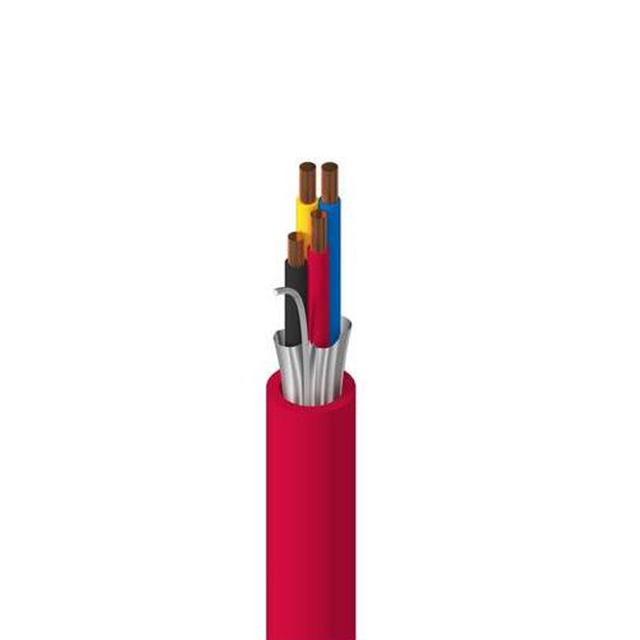

CABLE 4COND 18AWG RED SHLD
| Part | Shield Material | Shield Coverage | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Conductor Strand | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Ratings | Cable Type | Jacket (Insulation) Material | Conductor Material | Shield Type | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 300 VDC | -40 C | 105 ░C | Poly-Vinyl Chloride (PVC) | Solid | 304.8 m | 1000 ft | 0.94 mm | 0.037 in | 18 AWG | Red | 6.68 mm | 0.263 " | 4 | UL Style 2464 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Bare | Foil | Alarm Safety |
