892-045 Series
Manufacturer: EDAC Inc.
Beta
⌘K

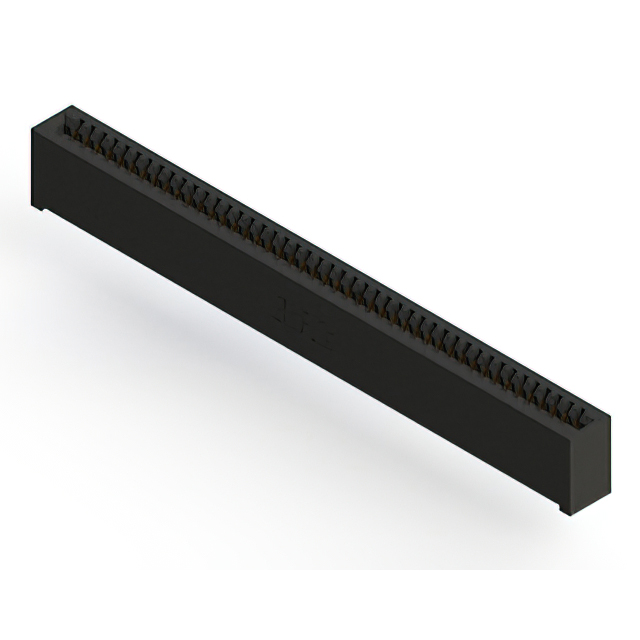

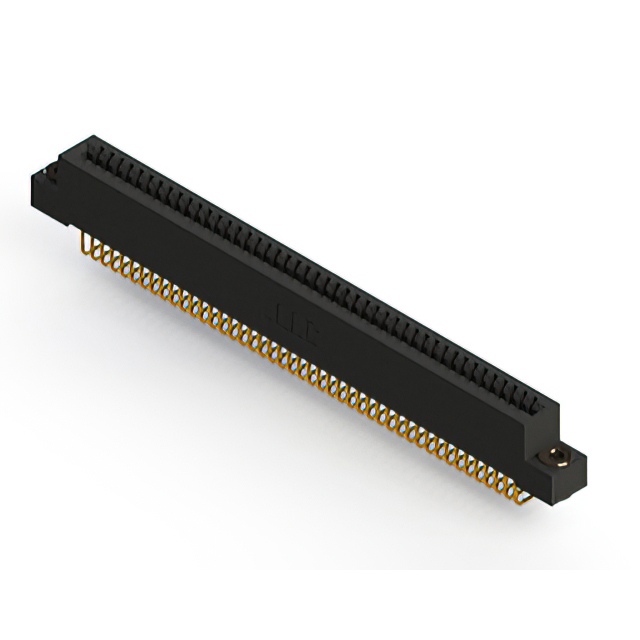

CONN EDGE SINGLE FML 45POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Material | Card Type | Contact Type | Number of Rows | Gender | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Color | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Termination | Read Out | Contact Finish | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Non Specified - Single Edge | Cantilever | 1 | Female | 0.25 Ám | 10 Áin | 45 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Through Hole | Solder | Single | Gold | 0.1 " | 2.54 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Non Specified - Single Edge | Cantilever | 1 | Female | 0.25 Ám | 10 Áin | 45 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | 125 °C | -40 C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Right Angle Through Hole | Solder | Single | Gold | 0.1 " | 2.54 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Non Specified - Single Edge | Cantilever | 1 | Female | 0.25 Ám | 10 Áin | 45 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | 125 °C | -40 C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Right Angle Through Hole | Solder | Single | Gold | 0.1 " | 2.54 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Non Specified - Single Edge | Cantilever | 1 | Female | 0.25 Ám | 10 Áin | 45 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | 125 °C | -40 C | Through Hole | Solder | Single | Gold | 0.1 " | 2.54 mm | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Non Specified - Single Edge | Cantilever | 1 | Female | 0.25 Ám | 10 Áin | 45 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Solder | Single | Gold | 0.1 " | 2.54 mm | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Non Specified - Single Edge | Cantilever | 1 | Female | 0.25 Ám | 10 Áin | 45 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | 125 °C | -40 C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Through Hole | Wire Wrap | Single | Gold | 0.1 " | 2.54 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Non Specified - Single Edge | Cantilever | 1 | Female | 0.25 Ám | 10 Áin | 45 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | 125 °C | -40 C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Through Hole | Wire Wrap | Single | Gold | 0.1 " | 2.54 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Non Specified - Single Edge | Cantilever | 1 | Female | 0.25 Ám | 10 Áin | 45 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | 125 °C | -40 C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | Wire Wrap | Single | Gold | 0.1 " | 2.54 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Non Specified - Single Edge | Cantilever | 1 | Female | 0.25 Ám | 10 Áin | 45 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | Wire Wrap | Single | Gold | 0.1 " | 2.54 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Non Specified - Single Edge | Cantilever | 1 | Female | 0.25 Ám | 10 Áin | 45 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | 125 °C | -40 C | Through Hole | Wire Wrap | Single | Gold | 0.1 " | 2.54 mm |
