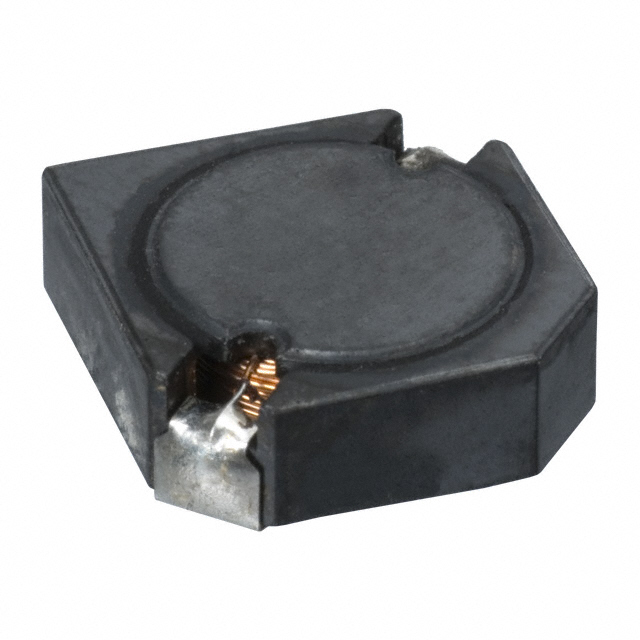

ELL-CTV Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 4.7UH 5.2A 9.9MOHM SMD
| Part | Current Rating (Amps) | Tolerance | DC Resistance (DCR) | Mounting Type | Package / Case | Inductance Frequency - Test | Shielding | Height - Seated (Max) [Max] | Height - Seated (Max) | Inductance | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Material - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 5.2 A | 30 % | 9.9 mOhm | Surface Mount | Nonstandard | 100 kHz | Shielded | 0.177 " | 4.5 mm | 4.7 ÁH | Drum Core Wirewound | 0.472 in | 0.472 " | 12 mm | 12 mm | Ferrite |
Panasonic Industrial Automation Sales | 1.5 A | 20 % | 100 mOhm | Surface Mount | Nonstandard | 100 kHz | Shielded | 0.177 " | 4.5 mm | 68 µH | Drum Core Wirewound | 0.472 in | 0.472 " | 12 mm | 12 mm | Ferrite |
Panasonic Industrial Automation Sales | 1.1 A | 20 % | 190 mOhm | Surface Mount | Nonstandard | 100 kHz | Shielded | 0.177 " | 4.5 mm | Drum Core Wirewound | 0.472 in | 0.472 " | 12 mm | 12 mm | Ferrite | |
Panasonic Industrial Automation Sales | 3.1 A | 20 % | 25 mOhm | Surface Mount | Nonstandard | 100 kHz | Shielded | 0.177 " | 4.5 mm | 15 µH | Drum Core Wirewound | 0.472 in | 0.472 " | 12 mm | 12 mm | Ferrite |
Panasonic Industrial Automation Sales | 0.84 A | 20 % | 310 mOhm | Surface Mount | Nonstandard | 100 kHz | Shielded | 0.177 " | 4.5 mm | 220 µH | Drum Core Wirewound | 0.472 in | 0.472 " | 12 mm | 12 mm | Ferrite |
Panasonic Industrial Automation Sales | 5.6 A | 30 % | 8.5 mOhm | Surface Mount | Nonstandard | 100 kHz | Shielded | 0.177 " | 4.5 mm | 3.9 µH | Drum Core Wirewound | 0.472 in | 0.472 " | 12 mm | 12 mm | Ferrite |
Panasonic Industrial Automation Sales | 0.54 A | 20 % | 810 mOhm | Surface Mount | Nonstandard | 100 kHz | Shielded | 0.177 " | 4.5 mm | 560 µH | Drum Core Wirewound | 0.472 in | 0.472 " | 12 mm | 12 mm | Ferrite |
Panasonic Industrial Automation Sales | 2.7 A | 20 % | 37 mOhm | Surface Mount | Nonstandard | 100 kHz | Shielded | 0.177 " | 4.5 mm | 22 µH | Drum Core Wirewound | 0.472 in | 0.472 " | 12 mm | 12 mm | Ferrite |
Panasonic Industrial Automation Sales | 930 mA | 20 % | 270 mOhm | Surface Mount | Nonstandard | 100 kHz | Shielded | 0.177 " | 4.5 mm | 180 µH | Drum Core Wirewound | 0.472 in | 0.472 " | 12 mm | 12 mm | Ferrite |
Panasonic Industrial Automation Sales | 0.63 A | 20 % | 560 mOhm | Surface Mount | Nonstandard | 100 kHz | Shielded | 0.177 " | 4.5 mm | 390 µH | Drum Core Wirewound | 0.472 in | 0.472 " | 12 mm | 12 mm | Ferrite |
