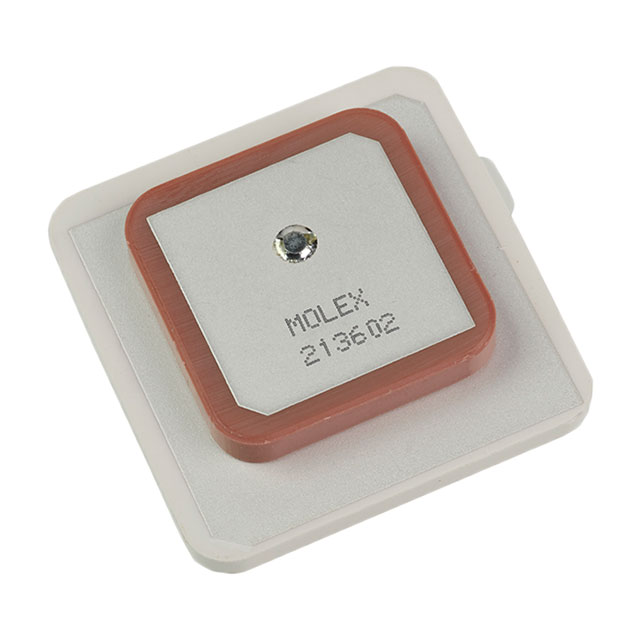

GPS L1/L2 and Glonass 36.00mm Stacked Patch Single Feed Antenna
GPS L1/L2 and Glonass 36.00mm Stacked Patch Single Feed Antenna
| Part | Gain | Height (Max) [Max] | Height (Max) | Number of Bands | Frequency Range [Min] | Frequency Range [Max] | Frequency (Center/Band) | Return Loss | Frequency Group [Max] | Frequency Group [Min] | Frequency Group | Antenna Type | RF Family/Standard | Mounting Type | Applications | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 2.1 dBi 5.3 dBi | 0.276 in | 7 mm | 2 | 1.2265 GHz 1.574 GHz | 1.2286 GHz 1.576 GHz | 1.2275 GHz 1.575 GHz | -15 dB | 2 GHz | 1 GHz | UHF | Ceramic Patch | Navigation | Adhesive | GLONASS GNSS GPS | Solder |
