DB25P564 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

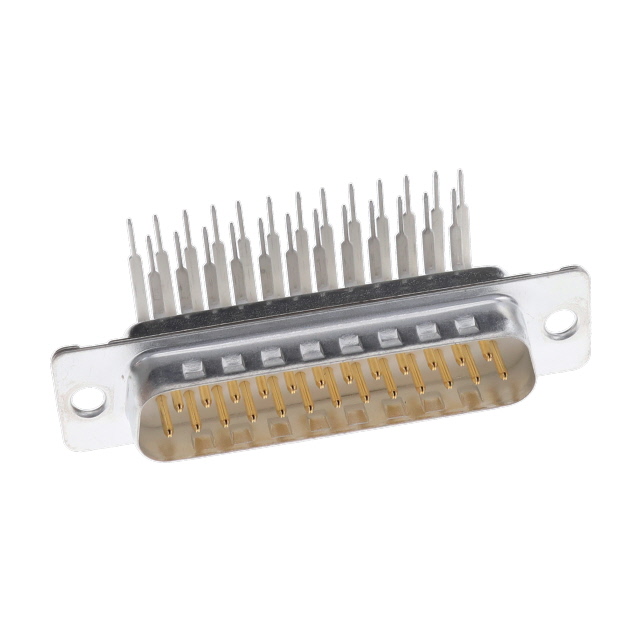

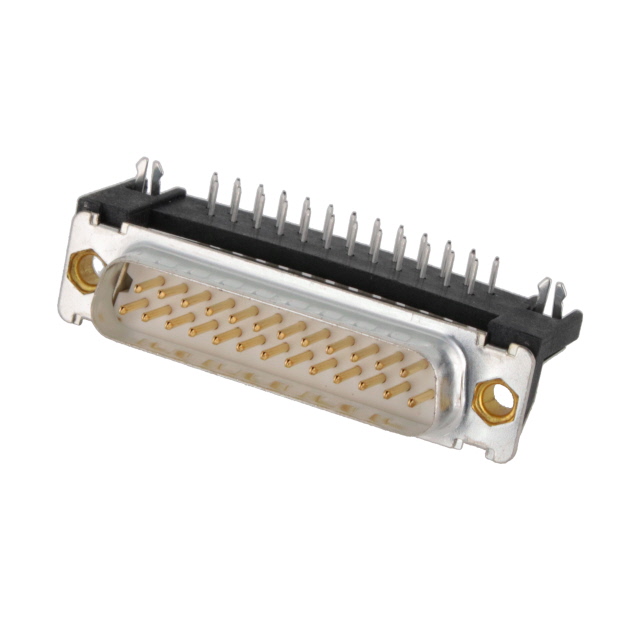

CONN D-SUB PLUG 25POS R/A SLDR
| Part | Current Rating (Amps) | Dielectric Material | Features | Contact Type | Mounting Type | Number of Rows | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Material | Material Flammability Rating | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Termination | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 5 A | Thermoplastic | Grounding Indents | Signal | Through Hole Right Angle | 2 | 0.409 in | 10.4 mm | Flash | Copper Alloy | UL94 V-0 | Male Pins Plug | B DB | 3 | Housing/Shell (Unthreaded) | Gold GXT™ | -55 °C | 125 °C | D-Sub | Solder | |
 Amphenol ICC (FCI) | 5 A | Thermoplastic | Board Lock Grounding Indents | Signal | Through Hole Right Angle | 2 | 0.409 in | 10.4 mm | Flash | Copper Alloy | UL94 V-0 | Male Pins Plug | B DB | 3 | Housing/Shell (Unthreaded) | Gold GXT™ | -55 °C | 125 °C | D-Sub | Solder | 300 VDC |
Amphenol ICC (FCI) | 5 A | Thermoplastic | Grounding Indents | Signal | Through Hole Right Angle | 2 | Flash | Male Pins Plug | B DB | 3 | Housing/Shell (Unthreaded) | Gold | -55 °C | 125 °C | D-Sub | Solder | |||||
Amphenol ICC (FCI) | 5 A | Thermoplastic | Board Lock Grounding Indents | Signal | Through Hole Right Angle | 2 | Flash | Male Pins Plug | B DB | 3 | Housing/Shell (Unthreaded) | Gold | -55 °C | 125 °C | D-Sub | Solder |
