MWSD1005C15 Series

Catalog

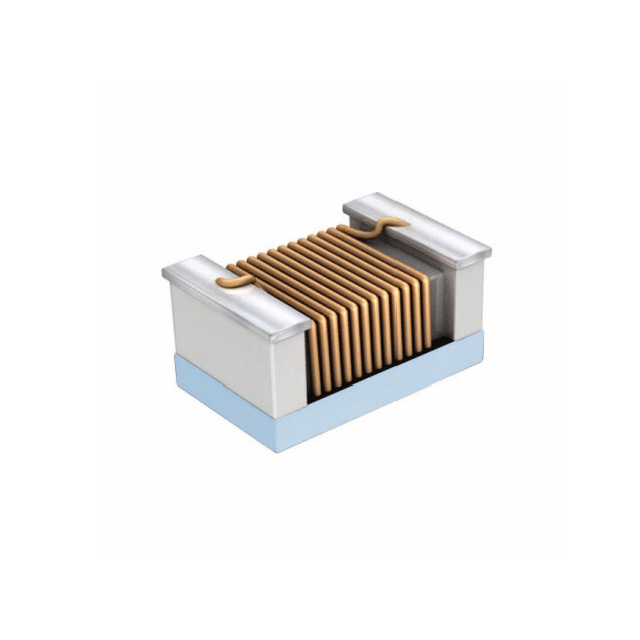

FIXED IND 15NH 430MA 210MOHM SMD

Part	Type	Mounting Type	Supplier Device Package	Shielding	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Material - Core	Package / Case	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency - Self Resonant	Inductance	Q @ Freq [custom]	Q @ Freq [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Q @ Freq [custom]	Q @ Freq
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C15NGT	Drum Core Wirewound	Surface Mount	0402	Unshielded	430 mA	125 °C	-40 C	2 %	Ceramic	0402 (1005 Metric)	210 mOhm	250 MHz	0.024 "	1.1 mm	0.6 mm	0.043 in	5 GHz	15 nH	26	250 MHz	0.026 in	0.65 mm
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C15NJTM01	Drum Core Wirewound	Surface Mount	0402	Unshielded	460 mA	125 °C	-40 C	5 %	Ceramic	0402 (1005 Metric)	160 mOhm	100 MHz	0.024 "	1.1 mm	0.6 mm	0.043 in	5 GHz	15 nH		250 MHz			0.7 mm	0.028 "	30
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C15NHT	Drum Core Wirewound	Surface Mount	0402	Unshielded	430 mA	125 °C	-40 C	3 %	Ceramic	0402 (1005 Metric)	210 mOhm	250 MHz	0.024 "	1.1 mm	0.6 mm	0.043 in	5 GHz	15 nH	26	250 MHz	0.026 in	0.65 mm
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C15NJTM81	Drum Core Wirewound	Surface Mount	0402	Unshielded	1.15 A	125 °C	-40 C	5 %	Ceramic	0402 (1005 Metric)	114 mOhm	100 MHz	0.021 "	1.1 mm	0.53 mm	0.043 in	5.5 GHz	15 nH		250 MHz			0.7 mm	0.028 "		31
