TXR21AB90 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN BACKSH ADPT SZ16 15/16-20

Part	For Use With/Related Products	Includes	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Shielding	Thread Size	Features	Plating	Cable Exit	Material	Shell Size - Insert	Type	Diameter - Outside [diameter]	Shell Size - Insert [custom]
TE Connectivity AMP Connectors TXR21AB90-1606AI	MIL-DTL-26482 Series I Class E F Connectors	6 pcs - 1 Backshell 6 pcs - 1 Braid 6 pcs - 1 O-Ring 6 pcs - 1 Tinel Ring 6 pcs - 2 Screws	31.05 mm	1.222 in	Olive Drab	Shielded	15/16-20 UNEF	Tinel Lock	Cadmium	90°	Aluminum Alloy	16	Backshell Heat Shrink Adapter
TE Connectivity AMP Connectors TXR21AB90-1607AI	MIL-DTL-26482 Series I Class E F Connectors	6 pcs - 1 Backshell 6 pcs - 1 Braid 6 pcs - 1 O-Ring 6 pcs - 1 Tinel Ring 6 pcs - 2 Screws	31.05 mm	1.222 in	Olive Drab	Shielded	15/16-20 UNEF	Tinel Lock	Cadmium	90°	Aluminum Alloy	16	Backshell Heat Shrink Adapter

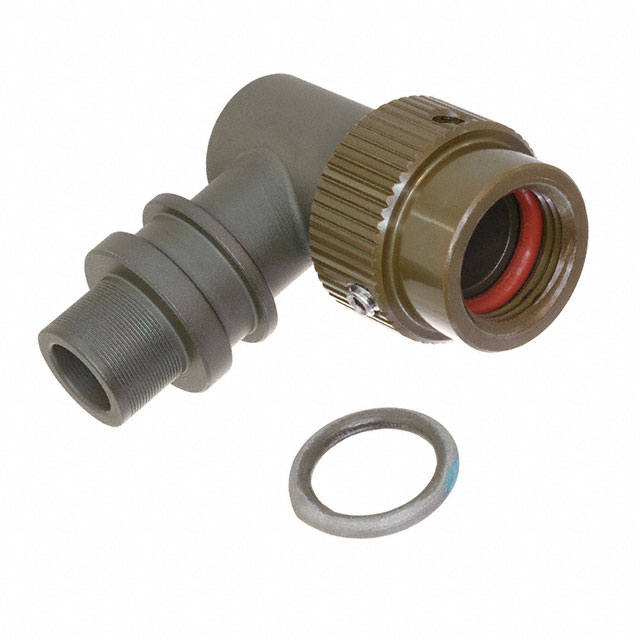

TE Connectivity AMP Connectors TXR21AB90-0804AI2	MIL-DTL-26482 Series I Class E F Connectors	6 pcs - 1 Backshell 6 pcs - 1 Braid 6 pcs - 1 O-Ring 6 pcs - 1 Tinel Ring 6 pcs - 2 Screws	18.05 mm	0.711 in	Olive Drab	Shielded	7/16-28 UNEF	Tinel Lock	Cadmium	90°	Aluminum Alloy	8	Backshell Heat Shrink Adapter
TE Connectivity AMP Connectors TXR21AB90-1207AI	MIL-DTL-26482 Series I Class E F Connectors	6 pcs - 1 Backshell 6 pcs - 1 Braid 6 pcs - 1 O-Ring 6 pcs - 1 Tinel Ring 6 pcs - 2 Screws	0.97 in		Olive Drab	Shielded	11/16-24 UNEF	Tinel Lock	Cadmium	90°	Aluminum Alloy		Backshell Heat Shrink Adapter	24.65 mm	12
TE Connectivity AMP Connectors TXR21AB90-1408BI	MIL-DTL-26482 Series I Class E F Connectors	6 pcs - 1 Backshell 6 pcs - 1 Braid 6 pcs - 1 O-Ring 6 pcs - 1 Tinel Ring 6 pcs - 2 Screws	27.65 mm	1.089 in	Olive Drab	Shielded	13/16-20 UNEF	Tinel Lock	Cadmium	90°	Aluminum Alloy	14	Backshell Heat Shrink Adapter
TE Connectivity AMP Connectors TXR21AB90-2210BI	MIL-DTL-26482 Series I Class E F Connectors	6 pcs - 1 Backshell 6 pcs - 1 Braid 6 pcs - 1 O-Ring 6 pcs - 1 Tinel Ring 6 pcs - 2 Screws	40.55 mm	1.596 in	Olive Drab	Shielded	1 5/16-18 UNEF	Tinel Lock	Cadmium	90°	Aluminum Alloy	22	Backshell Heat Shrink Adapter
TE Connectivity AMP Connectors TXR21AB90-0805AI	MIL-DTL-26482 Series I Class E F Connectors	1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell 2 Screws	18.05 mm	0.711 in	Olive Drab	Shielded	7/16-28 UNEF	Tinel Lock	Cadmium	90°	Aluminum Alloy	8	Backshell Heat Shrink Adapter
TE Connectivity AMP Connectors TXR21AB90-1405AI	MIL-DTL-26482 Series I Class E F Connectors	6 pcs - 1 Backshell 6 pcs - 1 Braid 6 pcs - 1 O-Ring 6 pcs - 1 Tinel Ring 6 pcs - 2 Screws	27.65 mm	1.089 in	Olive Drab	Shielded	13/16-20 UNEF	Tinel Lock	Cadmium	90°	Aluminum Alloy	14	Backshell Heat Shrink Adapter
