LDD-350 Series

Catalog

LED DRIVER CC BUCK 2-28V 350MA

Part	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Mounting Type	Features	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Package / Case	Type	Topology	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Dimming	Approval Agency	Termination Style	Ratings	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]
MEAN WELL USA Inc. LDD-350LS	95 %	85 °C	-40 C	9 V	Surface Mount	OTP Remote On/Off SCP	1	28 V	2 V	16-SMD Module	Constant Current	Buck	32 V	1 in	0.41 "	25.4 mm	0.37 in	9.3 mm	10.5 mm	350 mA	PWM	CE

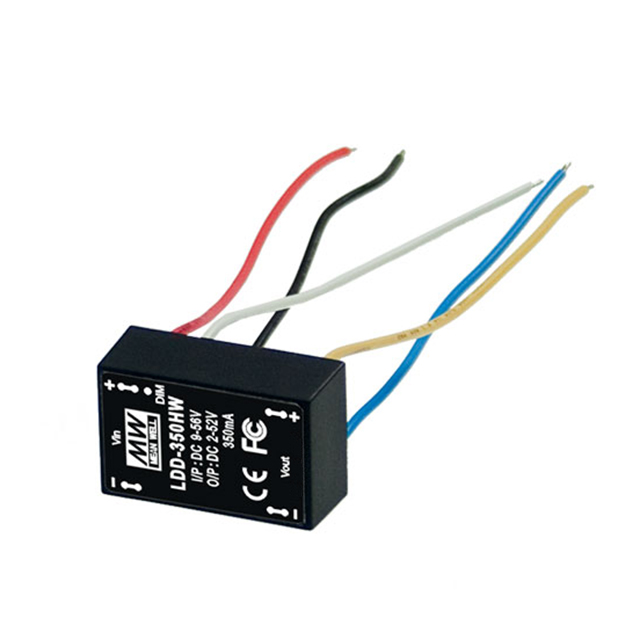

MEAN WELL USA Inc. LDD-350HW	97 %	85 °C	-40 C	9 V	Chassis Mount	OTP Remote On/Off SCP	1	52 V	2 V		Constant Current	Buck	56 V	1.25 in	0.8 "	31.8 mm	0.48 "	12.2 mm	20.3 mm	350 mA	PWM	CE	Wire Leads	IP67
MEAN WELL USA Inc. LDD-350LW	95 %	85 °C	-40 C	9 V	Chassis Mount	OTP Remote On/Off SCP	1	30 VDC	2 V		Constant Current	Buck	36 V	0.89 in	0.39 in	22.6 mm	0.35 in	8.9 mm	9.9 mm	350 mA	PWM	CE	Wire Leads	IP67

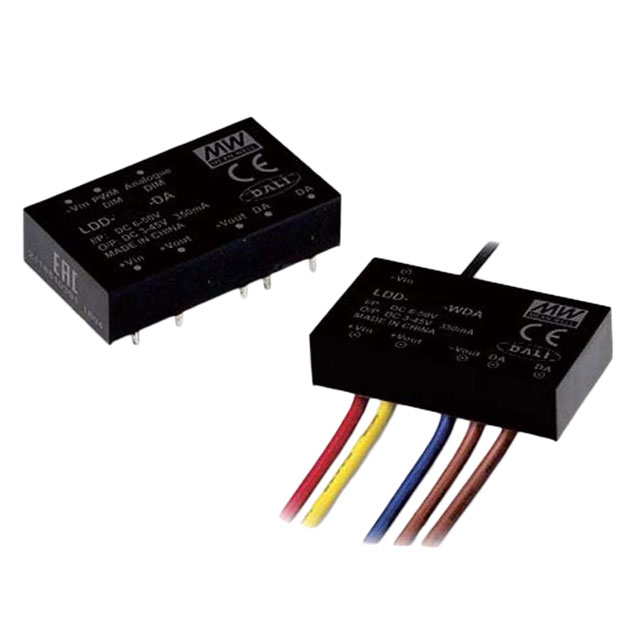

MEAN WELL USA Inc. LDD-350H-WDA	95 %	85 °C	-40 °C	6 V	Chassis Mount	Remote On/Off SCP	1	45 V	3 V	Module Wire Leads	Constant Current	Buck	50 V	1.6 "	0.93 in	40.6 mm	4.34 "			350 mA	Analog PWM	CE EAC			16 W	23.6 mm	110.2 mm
MEAN WELL USA Inc. LDD-350H	97 %	85 °C	-40 C	9 V	Through Hole	OTP Remote On/Off SCP	1	52 V	2 V	24-DIP Module 9 Leads	Constant Current	Buck	56 V	1.25 in	0.8 "	31.8 mm	0.48 "	12.2 mm	20.3 mm	350 mA	PWM	CE
