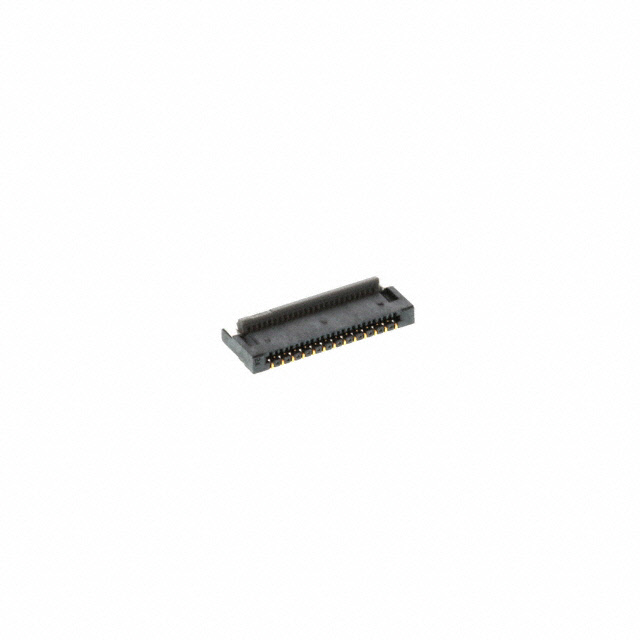

501616 Series

Manufacturer: Molex

Catalog

CONN FPC TOP 41POS 0.3MM R/A

Part	Actuator Material	Contact Material	Actuator Color	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Cable End Type	Features	FFC, FCB Thickness	Contact Finish	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Current Rating (Amps)	Termination	Pitch [x]	Pitch [x]	Number of Positions	Mating Cycles	Housing Material	Locking Feature	Mounting Type	Housing Color	Connector/Contact Type	Flat Flex Type

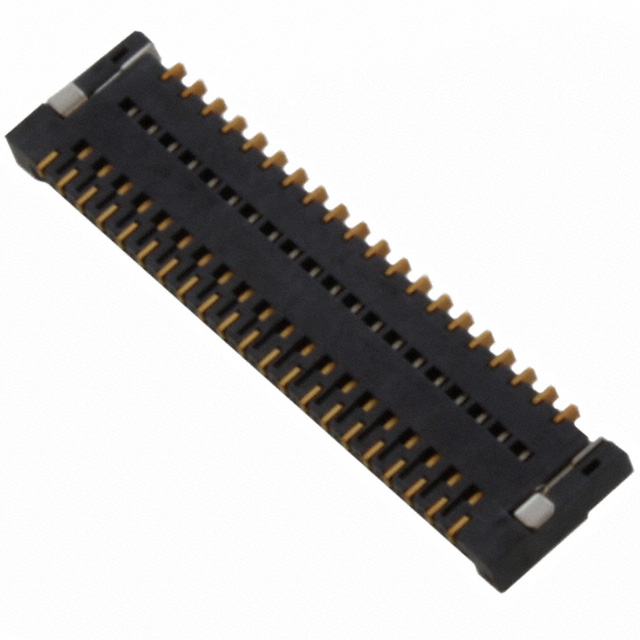

Molex 5016164185	Polymer	Copper Alloy	Gray	UL94 V-0	85 °C	-40 °C	Tapered	Solder Retention Zero Insertion Force (ZIF)	0.2 mm	Gold	50 V	1.12 mm	0.044 in	0.2 A	Solder	0.012 in	0.3 mm	41	10	Polymer	Backlock Flip Lock	Surface Mount Right Angle	Black	Contacts Top	FPC
Molex 5016162575	Polymer	Copper Alloy	Gray	UL94 V-0	85 °C	-40 °C	Tapered	Solder Retention Zero Insertion Force (ZIF)	0.2 mm	Gold	50 V	1.12 mm	0.044 in	0.2 A	Solder	0.012 in	0.3 mm		10	Polymer	Backlock Flip Lock	Surface Mount Right Angle	Black	Contacts Top	FPC

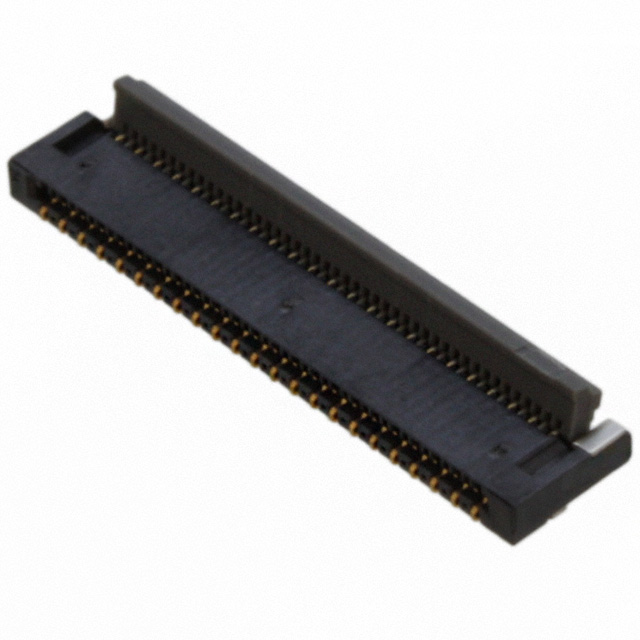

Molex 5016164585	Polymer	Copper Alloy	Gray	UL94 V-0	85 °C	-40 °C	Tapered	Solder Retention Zero Insertion Force (ZIF)	0.2 mm	Gold	50 V	1.12 mm	0.044 in	0.2 A	Solder	0.012 in	0.3 mm	45	10	Polymer	Backlock Flip Lock	Surface Mount Right Angle	Black	Contacts Top	FPC

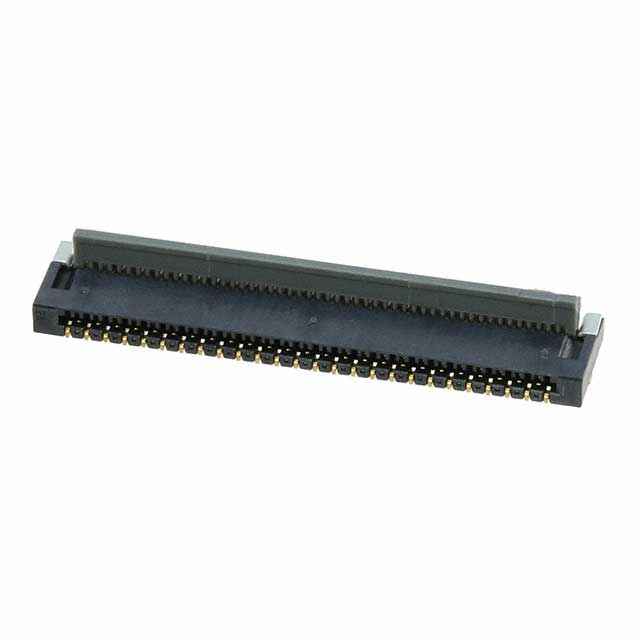

Molex 5016165185	Polymer	Copper Alloy	Gray	UL94 V-0	85 °C	-40 °C	Tapered	Solder Retention Zero Insertion Force (ZIF)	0.2 mm	Gold	50 V	1.12 mm	0.044 in	0.2 A	Solder	0.012 in	0.3 mm	51	10	Polymer	Backlock Flip Lock	Surface Mount Right Angle	Black	Contacts Top	FPC

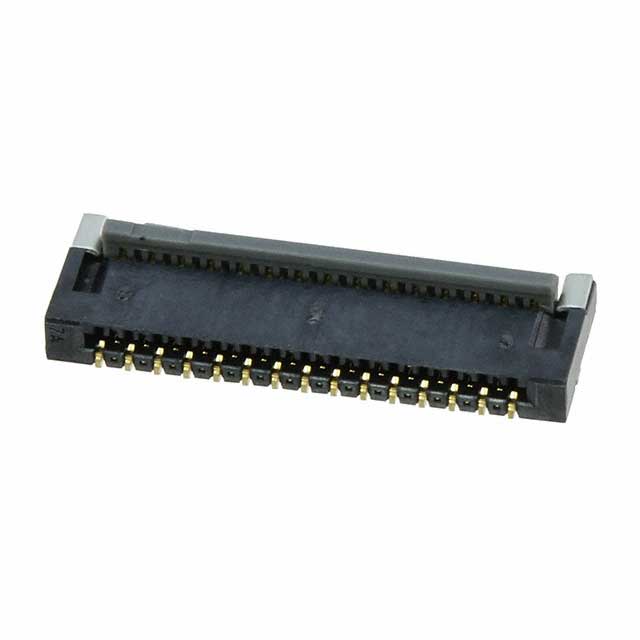

Molex 5016162975	Polymer	Copper Alloy	Gray	UL94 V-0	85 °C	-40 °C	Tapered	Solder Retention Zero Insertion Force (ZIF)	0.2 mm	Gold	50 V	1.12 mm	0.044 in	0.2 A	Solder	0.012 in	0.3 mm	29	10	Polymer	Backlock Flip Lock	Surface Mount Right Angle	Black	Contacts Top	FPC
