MAX77962 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
23VIN3.2AOUTUSB-C BUCK-BOOST CHARGER WITH INTEGRATED FETS FOR 2S LI-ION BATTERIES
| Part | Voltage - Supply (Max) [Max] | Battery Chemistry [custom] | Fault Protection | Programmable Features | Charge Current - Max | Supplier Device Package | Number of Cells | Current - Charging | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Battery Pack Voltage | Interface | Package / Case | Supplied Contents | Contents | Function | Secondary Attributes | Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

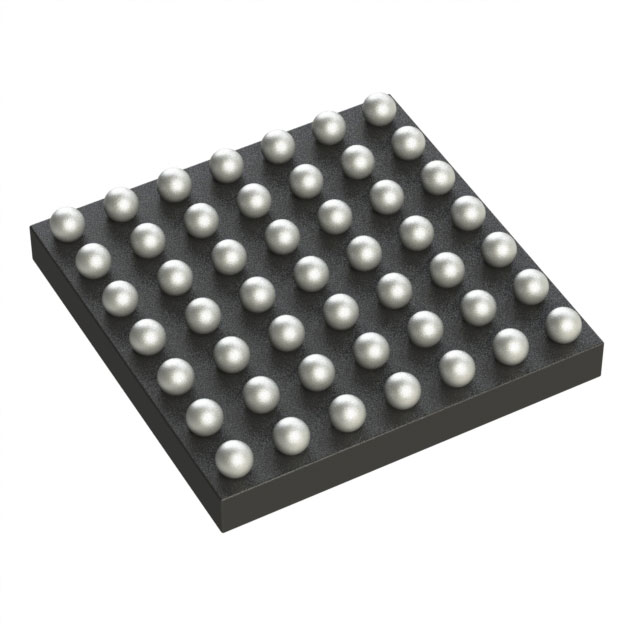

 Analog Devices Inc./Maxim Integrated | 23 V | Lithium Ion | Over Current Over-Under Voltage | I²C Resistor | 3.2 A | 49-WLP (3.46x3.46) | 2 | Constant - Programmable | 85 C | -40 ¯C | Surface Mount | 7.6 V | I2C SMBus | 49-WFBGA WLBGA | ||||||
 Analog Devices Inc./Maxim Integrated | 23 V | Lithium Ion | Over Current Over-Under Voltage | I˛C I²C Resistor | 3.2 A | 49-WLP (3.46x3.46) | 2 | Constant - Programmable | 85 C | -40 ¯C | Surface Mount | 7.6 V | I2C SMBus | 49-WFBGA WLBGA | ||||||

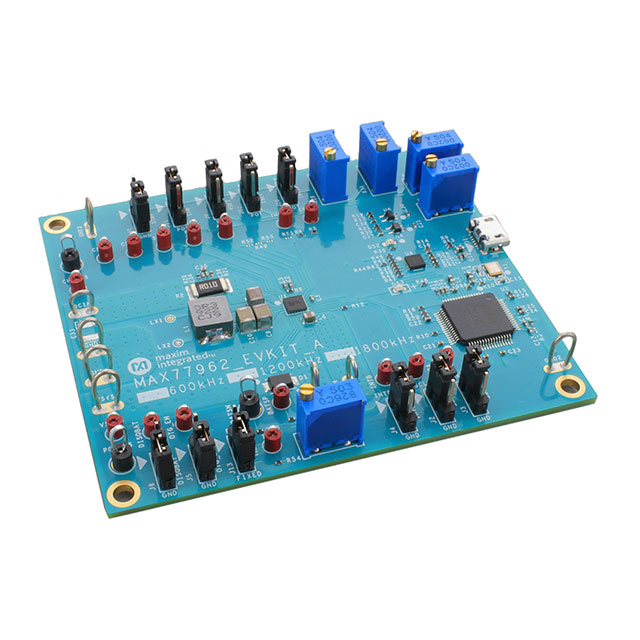

 Analog Devices Inc./Maxim Integrated | Board(s) Cable(s) | Board Cable | Battery Charger | Graphical User Interface (GUI) I2C Interface(s) | Power Management | MAX77962 | ||||||||||||||
 Analog Devices Inc./Maxim Integrated | 23 V | Lithium Ion | Over Current Over-Under Voltage | I˛C I²C Resistor | 3.2 A | 49-WLP (3.46x3.46) | 2 | Constant - Programmable | 85 C | -40 ¯C | Surface Mount | 7.6 V | I2C SMBus | 49-WFBGA WLBGA | ||||||
 Analog Devices Inc./Maxim Integrated | Board(s) Cable(s) | Board Cable | Battery Charger | Graphical User Interface (GUI) I2C Interface(s) | Power Management | MAX77962 | ||||||||||||||
 Analog Devices Inc./Maxim Integrated | 23 V | Lithium Ion | Over Current Over-Under Voltage | I²C Resistor | 3.2 A | 49-WLP (3.46x3.46) | 2 | Constant - Programmable | 85 C | -40 ¯C | Surface Mount | 7.6 V | I2C SMBus | 49-WFBGA WLBGA |
