C2PXS-1 Series

Catalog

DIP CABLE - CDP16S/AE16G/X

Part	Number of Rows [custom]	Connector Type	Cable Termination	Length	Length	Shielding	Usage	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Number of Positions	Contact Finish	Color	Length	Length [x]	Length [x]

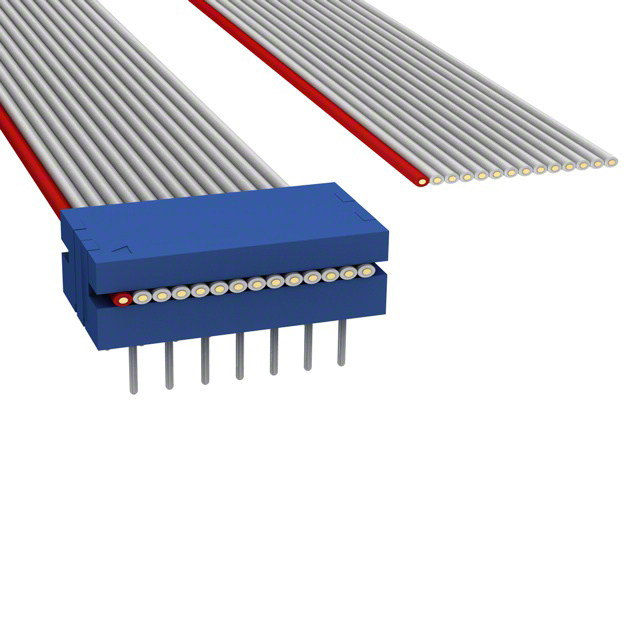

CW Industries C2PXS-1636G	2	DIP to Cable	IDC	91.44 cm	3 ft	Unshielded	Board In Socket (0.3")	0.1 in	2.54 mm	2.54 µm	100 µin	0.05 in	1.27 mm	16	Tin

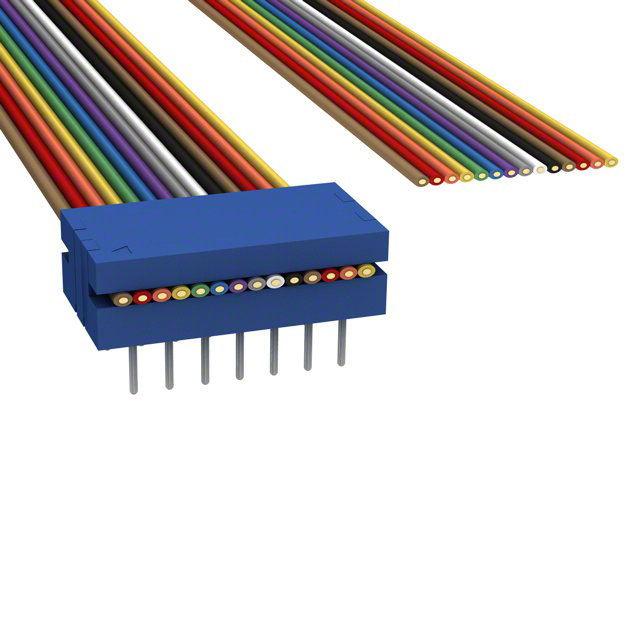

CW Industries C2PXS-1406M	2	DIP to Cable	IDC	152.4 mm	0.5 '	Unshielded	Board In Socket (0.3")	0.1 in	2.54 mm	2.54 µm	100 µin	0.05 in	1.27 mm	14	Tin	Multiple Ribbon	6 "
CW Industries C2PXS-1436G	2	DIP to Cable	IDC	91.44 cm	3 ft	Unshielded	Board In Socket (0.3")	0.1 in	2.54 mm	2.54 µm	100 µin	0.05 in	1.27 mm	14	Tin
CW Industries C2PXS-1436M	2	DIP to Cable	IDC	91.44 cm	3 ft	Unshielded	Board In Socket (0.3")	0.1 in	2.54 mm	2.54 µm	100 µin	0.05 in	1.27 mm	14	Tin	Multiple Ribbon
CW Industries C2PXS-1418M	2	DIP to Cable	IDC			Unshielded	Board In Socket (0.3")	0.1 in	2.54 mm	2.54 µm	100 µin	0.05 in	1.27 mm	14	Tin	Multiple Ribbon		457.2 mm	1.5 ft
CW Industries C2PXS-1636M	2	DIP to Cable	IDC	91.44 cm	3 ft	Unshielded	Board In Socket (0.3")	0.1 in	2.54 mm	2.54 µm	100 µin	0.05 in	1.27 mm	16	Tin	Multiple Ribbon
CW Industries C2PXS-1618M	2	DIP to Cable	IDC			Unshielded	Board In Socket (0.3")	0.1 in	2.54 mm	2.54 µm	100 µin	0.05 in	1.27 mm	16	Tin	Multiple Ribbon		457.2 mm	1.5 ft
CW Industries C2PXS-1418G	2	DIP to Cable	IDC			Unshielded	Board In Socket (0.3")	0.1 in	2.54 mm	2.54 µm	100 µin	0.05 in	1.27 mm	14	Tin			457.2 mm	1.5 ft
CW Industries C2PXS-1606M	2	DIP to Cable	IDC	152.4 mm	0.5 '	Unshielded	Board In Socket (0.3")	0.1 in	2.54 mm	2.54 µm	100 µin	0.05 in	1.27 mm	16	Tin	Multiple Ribbon	6 "
CW Industries C2PXS-1606G	2	DIP to Cable	IDC	152.4 mm	0.5 '	Unshielded	Board In Socket (0.3")	0.1 in	2.54 mm	2.54 µm	100 µin	0.05 in	1.27 mm	16	Tin		6 "
