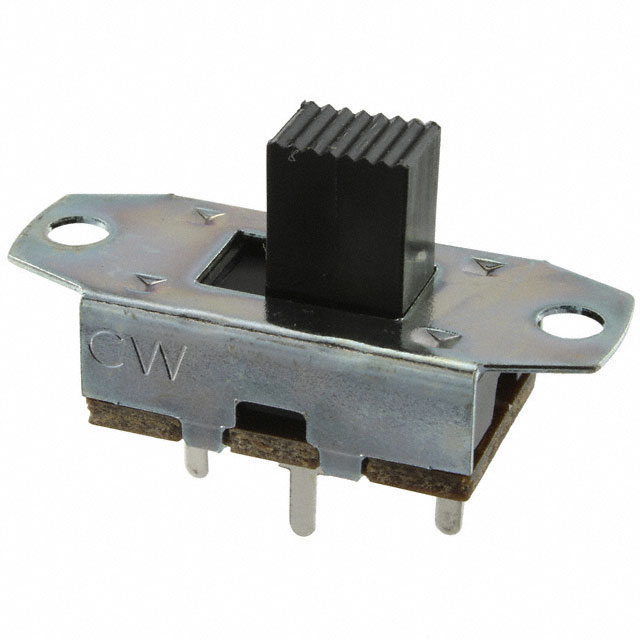

GF-1124 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE SPDT 11A 125V
| Part | Electrical Life | Actuator Material | Switch Travel | Mechanical Life | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Length [x] | Contact Material | Voltage Rating - DC | Mounting Type | Contact Timing | Actuator Type | Termination Style | Contact Finish | Switch Function | Features | Voltage Rating - AC | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

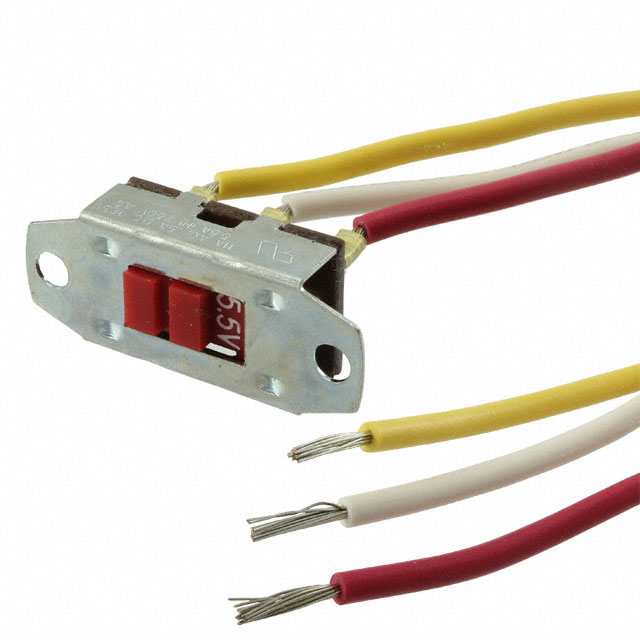

 CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 4.01 mm | 10000 Steps | 11 A 500 mA | -10 °C | 104 °C | 0.79 mm | Copper | 125 VDC | Panel Mount | Not Specified | Screwdriver Slot | Wire Leads | Silver | On-On (Line Voltage Selector) | 5.5V-12V Marking Red Actuator | 125 V | SPDT |
 CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 4.01 mm | 10000 Steps | 11 A 500 mA | -10 °C | 104 °C | 8.74 mm | Copper | 125 VDC | Panel Mount | Not Specified | Standard | Solder Lug | Silver | On-On | 125 V | SPDT | |
 CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 4.01 mm | 10000 Steps | 11 A 500 mA | -10 °C | 104 °C | 8.74 mm | Copper | 125 VDC | Panel Mount | Not Specified | Standard | PC Pin | Silver | On-On | 125 V | SPDT |
