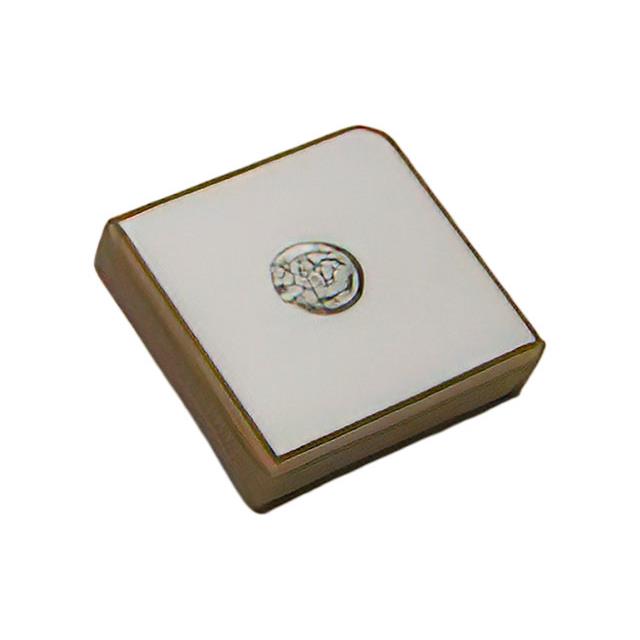

ANT1212 Series
Manufacturer: Pulse Electronics
Beta
⌘K
ANTENNAS 1.575GHZ 50 OHM ACTIVE ANTENNA,GPS
| Part | Termination Type | Frequency Group Minimum (UHF) | Frequency Group | Frequency Group Maximum (UHF) | Antenna Type | Number of Bands | VSWR | Gain | Frequency (Center/Band) | Mounting Type | Frequency Range (Max) | Frequency Range (Min) | RF Family/Standard | Height (Max) | Features | Applications | Termination | Power - Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | I-PEX MHF1 U.FL | 1 GHz | UHF | 2 GHz | Ceramic Patch | 1 | 1.5 | -4.56 dBic | 1.575 GHz | Surface Mount | 1.581 GHz | 1.569 GHz | Navigation | 0.157 in | Filter LNA | GPS | ||
 Pulse Electronics | 1 GHz | UHF | 2 GHz | Ceramic Patch | 1 | 2 | -1.5 dBic | 1.58 GHz | Adhesive | 1.583 GHz | 1.577 GHz | Navigation | 0.157 in | GPS | Pin | |||
 Pulse Electronics | 1 GHz | UHF | 2 GHz | Ceramic Patch | 1 | 2 | -1.5 dBi | 1.58 GHz | Adhesive | Navigation | 0.157 in | GPS | Pin | 1 VA | ||||
 Pulse Electronics | 2 GHz | UHF | 3 GHz | Ceramic Patch | 1 | 3 | 4 dBi | 2.45 GHz | Surface Mount | 2.5 GHz | 2.4 GHz | 0.157 in | General Purpose | Solder |
