GG1L0C-P Series
Manufacturer: ODU
Beta
⌘K

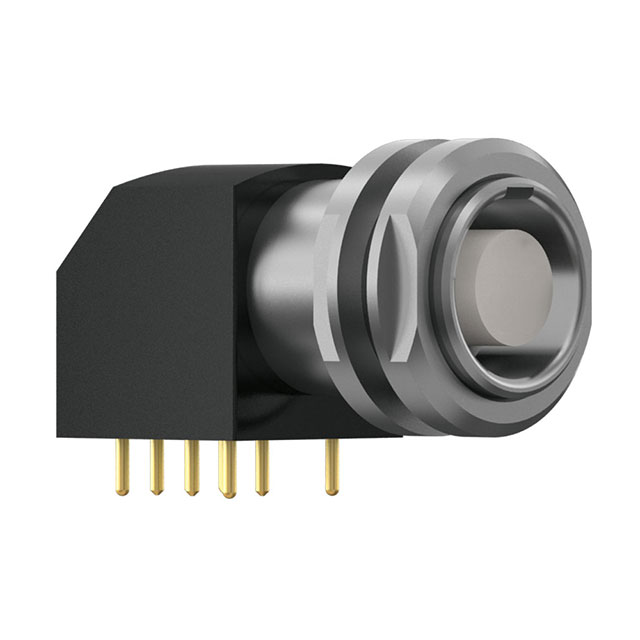

ODU MINI-SNAP RECEPT, STY G, SZ
| Part | Contact Finish - Mating | Primary Material | Current Rating (Amps) | Fastening Type | Connector Type | Shielding | Ingress Protection | Contact Material | Mounting Type | Number of Positions | Features | Termination | Applications | Color | Shell Size - Insert | Shell Material | Insert Material | Orientation | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Metal | 6 A | Push-Pull | Receptacle Female Sockets | Unshielded | IP50 - Dust Protected | Brass | Panel Mount Right Angle Through Hole | 6 | Ground | Solder | Industrial Medical Military Testing Equipment & Measurement | Silver | 1 | Brass | Polyetheretherketone (PEEK) | 0 | 400 V | 120 °C | -40 C | Chrome over Nickel | Bulkhead - Front Side Nut | |
Gold | Metal | 6 A | Push-Pull | Receptacle Female Sockets | IP50 - Dust Protected | Brass | Panel Mount Right Angle Through Hole | 8 | Ground | Solder | Industrial Medical Military Testing Equipment & Measurement | Silver | 1 | Brass | Polyetheretherketone (PEEK) | 0 | 120 °C | -40 C | Chrome over Nickel | Bulkhead - Front Side Nut | |||
Gold | Metal | 12 Amps | Push-Pull | Receptacle Female Sockets | Unshielded | IP50 - Dust Protected | Brass | Panel Mount Right Angle Through Hole | 2 | Ground | Solder | Industrial Medical Military Testing Equipment & Measurement | Silver | 1 | Brass | Polyetheretherketone (PEEK) | 0 | 550 VDC | 120 °C | -40 C | Chrome over Nickel | Bulkhead - Front Side Nut | |
Gold | Metal | 7.5 A | Push-Pull | Receptacle Female Sockets | Unshielded | IP50 - Dust Protected | Brass | Panel Mount Right Angle Through Hole | 4 | Ground | Solder | Industrial Medical Military Testing Equipment & Measurement | Silver | 1 | Brass | Polyetheretherketone (PEEK) | 0 | 500 V | 120 °C | -40 C | Chrome over Nickel | Bulkhead - Front Side Nut | |
Gold | Metal | 12 Amps | Push-Pull | Receptacle Female Sockets | IP50 - Dust Protected | Brass | Panel Mount Right Angle Through Hole | Ground | Solder | Industrial Medical Military Testing Equipment & Measurement | Silver | 1 | Brass | Polyetheretherketone (PEEK) | 0 | 120 °C | -40 C | Chrome over Nickel | Bulkhead - Front Side Nut | ||||
Gold | Metal | 4 A | Push-Pull | Receptacle Female Sockets | IP50 - Dust Protected | Brass | Panel Mount Right Angle Through Hole | 10 | Ground | Solder | Industrial Medical Military Testing Equipment & Measurement | Silver | 1 | Brass | Polyetheretherketone (PEEK) | 0 | 120 °C | -40 C | Chrome over Nickel | Bulkhead - Front Side Nut | |||
Gold | Metal | 6 A | Push-Pull | Receptacle Female Sockets | IP50 - Dust Protected | Brass | Panel Mount Right Angle Through Hole | 7 | Ground | Solder | Industrial Medical Military Testing Equipment & Measurement | Silver | 1 | Brass | Polyetheretherketone (PEEK) | 0 | 120 °C | -40 C | Chrome over Nickel | Bulkhead - Front Side Nut |
