SSI-LXR3816 Series

Catalog

LED PANEL INDICATOR RED 2V

Part	Lens Style	Lamp Color	Millicandela Rating	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage	Panel Cutout Shape	Viewing Angle	Lens Size	Lens Size	Wavelength - Peak	Current	Lens Transparency	Lens Color	Current	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage [custom]	Voltage [custom]	Millicandela Rating [custom]	Termination Style
Lumex Opto/Components Inc. SSI-LXR3816SID-150	Round with Domed Top	Red	700 mcd	LED	8.13 mm	0.32 "	2 V	Round	60 °	5 mm	T-1 3/4	636 nm	20 mA	Diffused	Red
Lumex Opto/Components Inc. SSI-LXR3816SYD-150	Round with Domed Top	Yellow	100 mcd	LED	8.13 mm	0.32 "	2.1 V	Round	60 °	5 mm	T-1 3/4	590 nm	20 mA	Diffused	Yellow
Lumex Opto/Components Inc. SSI-LXR3816HGWB150	Round with Domed Top	Green Red		LED	8.13 mm	0.32 "	2 V 2.2 V	Round	60 °	5 mm	T-1 3/4	565 nm 700 nm		Diffused	White	25mA Green 25mA Red	6 mcd	25 mcd
Lumex Opto/Components Inc. SSI-LXR3816SGD-150	Round with Domed Top	Green	40 mcd	LED	8.13 mm	0.32 "	2.2 V	Round	60 °	5 mm	T-1 3/4	565 nm	20 mA	Diffused	Green
Lumex Opto/Components Inc. SSI-LXR3816IY46835	Round with Domed Top	Red Yellow		LED	8.13 mm	0.32 "		Round	60 °	5 mm	T-1 3/4	585 nm 635 nm	12 mA 12 mA	Diffused	White		20 mcd		5 V	5 V	15 mcd	Wire Leads - 36" (914.40mm)
Lumex Opto/Components Inc. SSI-LXR3816GD-150

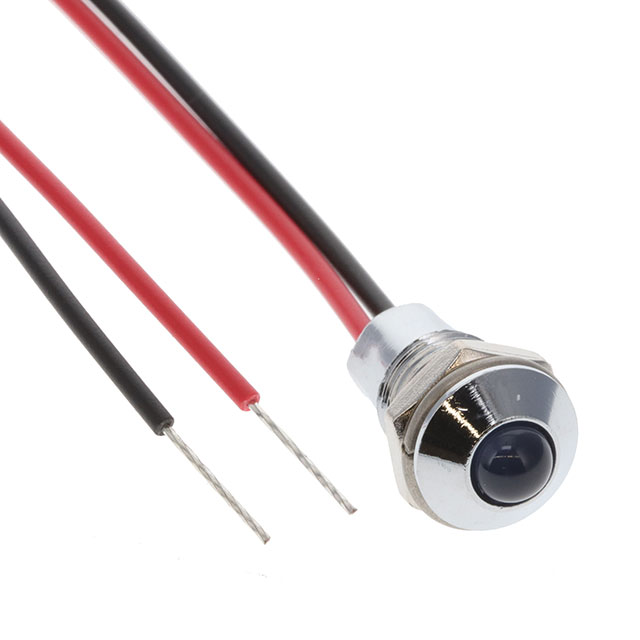

Lumex Opto/Components Inc. SSI-LXR3816USBD150	Round with Domed Top	Blue	300 mcd	LED	8.13 mm	0.32 "	3.5 V	Round	60 °	5 mm	T-1 3/4	470 nm	20 mA	Diffused	Blue
