EYG.2B Series
Manufacturer: LEMO
Beta
⌘K

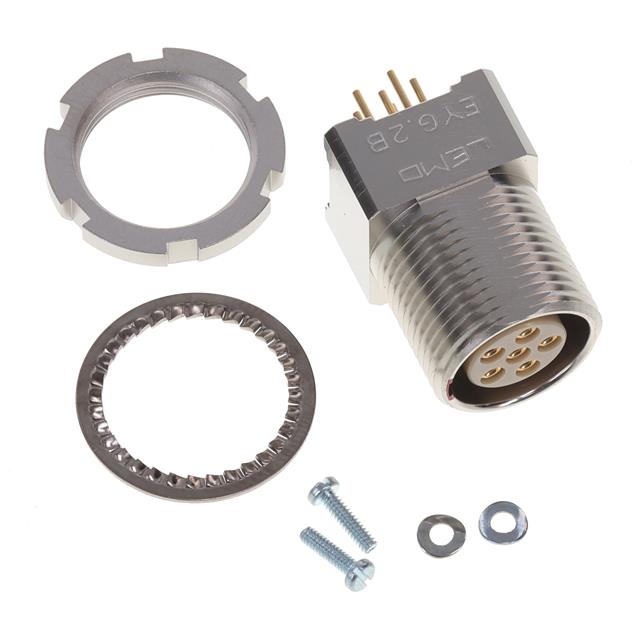

CONN RCPT FMALE 6POS GOLD SOLDER
| Part | Shielding | Connector Type | Shell Size - Insert | Mounting Type | Current Rating (Amps) | Shell Material | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Material Flammability Rating | Orientation [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Features | Primary Material | Number of Positions | Insert Material | Contact Material | Shell Finish | Fastening Type | Mounting Feature | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Shielded | Receptacle Female Sockets | 306 | Panel Mount Through Hole | 12 Amps | Brass | Solder | 1.5 Ám | 59 Áin | Gold | UL94 V-0 | G | -55 C | 250 °C | IP50 - Dust Protected | Board Lock | Metal | 6 | Polyetheretherketone (PEEK) | Bronze | Nickel | Push-Pull | Bulkhead - Front Side Nut | Silver |
LEMO | Shielded | Receptacle Female Sockets | 310 | Panel Mount Through Hole | 8 A | Brass | Solder | 1.5 Ám | 59 Áin | Gold | UL94 V-0 | G | -55 C | 250 °C | IP50 - Dust Protected | Board Lock | Metal | 10 | Polyetheretherketone (PEEK) | Bronze | Nickel | Push-Pull | Bulkhead - Front Side Nut | Silver |
