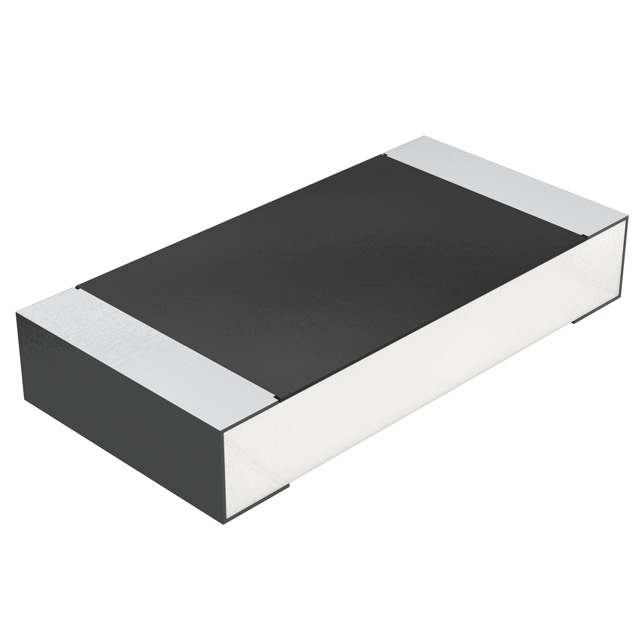

CRCW1206 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

RES SMD 340 OHM 1% 3/4W 1206

...

Part	Supplier Device Package	Temperature Coefficient	Tolerance	Number of Terminations	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Composition	Features	Resistance	Package / Case	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Vishay General Semiconductor - Diodes Division CRCW1206340RFKEAHP	1206	100 ppm/°C	1 %	2	1.6 mm	3.1 mm	0.063 in	0.122 "	Thick Film	Automotive AEC-Q200 Pulse Withstanding	340 Ohms	1206 (3216 Metric)	AEC-Q200	155 °C	-55 °C	0.75 W	0.75 W	0.026 in	0.65 mm
Vishay General Semiconductor - Diodes Division CRCW120611R0FKEAHP	1206	100 ppm/°C	1 %	2	1.6 mm	3.1 mm	0.063 in	0.122 "	Thick Film	Automotive AEC-Q200 Pulse Withstanding	11 Ohms	1206 (3216 Metric)	AEC-Q200	155 °C	-55 °C	0.75 W	0.75 W	0.026 in	0.65 mm
Vishay General Semiconductor - Diodes Division CRCW120612R7FKEB	1206	100 ppm/°C	1 %	2	1.6 mm	3.2 mm			Thick Film	Automotive AEC-Q200	12.7 Ohms	1206 (3216 Metric)	AEC-Q200	155 °C	-55 °C	0.25 W	250 mW			0.063 in	0.126 "	0.6 mm	0.024 in
Vishay General Semiconductor - Diodes Division CRCW12063K83FKEAC	1206	100 ppm/°C	1 %	2					Thick Film		3.83 kOhms	1206 (3216 Metric)		155 °C	-55 °C	0.25 W	250 mW	0.026 in	0.65 mm
Vishay General Semiconductor - Diodes Division CRCW12065K10JNEBC	1206	200 ppm/°C	5 %	2					Thick Film		5.1 kOhms	1206 (3216 Metric)		155 °C	-55 °C	0.25 W	250 mW	0.026 in	0.65 mm
Vishay General Semiconductor - Diodes Division CRCW120639K0FKEBC	1206	100 ppm/°C	1 %	2					Thick Film		39 kOhms	1206 (3216 Metric)		155 °C	-55 °C	0.25 W	250 mW	0.026 in	0.65 mm
Vishay General Semiconductor - Diodes Division CRCW120621R0FKEAHP	1206	100 ppm/°C	1 %	2	1.6 mm	3.1 mm	0.063 in	0.122 "	Thick Film	Automotive AEC-Q200 Pulse Withstanding		1206 (3216 Metric)	AEC-Q200	155 °C	-55 °C	0.75 W	0.75 W	0.026 in	0.65 mm
Vishay General Semiconductor - Diodes Division CRCW1206383RFKTA	1206	100 ppm/°C	1 %	2	1.6 mm	3.2 mm			Thick Film	Automotive AEC-Q200	383 Ohms	1206 (3216 Metric)	AEC-Q200	155 °C	-55 °C	0.25 W	250 mW			0.063 in	0.126 "	0.6 mm	0.024 in
Vishay General Semiconductor - Diodes Division CRCW12061R69FNTA	1206	200 ppm/°C	1 %	2	1.6 mm	3.2 mm			Thick Film	Automotive AEC-Q200	1.69 Ohms	1206 (3216 Metric)	AEC-Q200	155 °C	-55 °C	0.25 W	250 mW			0.063 in	0.126 "	0.6 mm	0.024 in
Vishay General Semiconductor - Diodes Division CRCW12063M48FKEBC	1206	100 ppm/°C	1 %	2					Thick Film		3.48 MOhms	1206 (3216 Metric)		155 °C	-55 °C	0.25 W	250 mW	0.026 in	0.65 mm
