EBWA Series
Manufacturer: Adam Tech
Beta
⌘K
EURO BLOCK 6P
| Part | Torque - Screw | Torque - Screw | Screw Thread | Operating Temperature [Min] | Operating Temperature [Max] | Screw Material - Plating | Contact Material - Plating | Wire Gauge [Max] | Wire Gauge [Min] | Number of Levels | Wire Termination | Mounting Type | Current | Mating Orientation | Features | Positions Per Level | Color | Pitch | Pitch | Voltage | Clamp Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 1.7 Lb-In | 0.2 Nm | M2 | -40 C | 105 ░C | Steel - Zinc Plated | Brass - Tin Plated | 28 AWG | 16 AWG | 1 | Screw - Rising Cage Clamp | Through Hole | 10 A | Horizontal with Board | Interlocking (Side) | 6 | Green | 3.81 mm | 0.15 in | 300 VDC | |

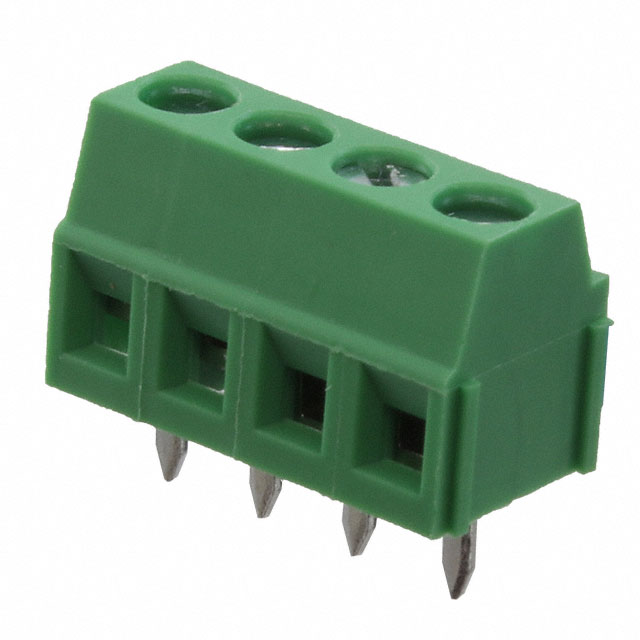

 Adam Tech | 1.7 Lb-In | 0.2 Nm | M2 | -40 C | 105 ░C | Steel - Zinc Plated | Brass - Tin Plated | 28 AWG | 16 AWG | 1 | Screw - Rising Cage Clamp | Through Hole | 10 A | Horizontal with Board | Interlocking (Side) | 4 | Green | 3.5 mm | 0.138 " | 300 VDC | Brass - Nickel Plated |
