R88D-KT Series

Catalog

SERVO DRIVER 2.9A 480V LOAD

Part	Mounting Type	Interface	Current - Output	Control / Drive Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Wattage - Load	For Use With/Related Products	Type	Weight	Weight	Motor Type	Voltage - Load	Weight
Omron Electronics Inc-EMC Div R88D-KT10F	Chassis Mount	Serial USB	2.9 A	Servo AC	380 VAC	480 VAC	1 kW	Accurax G5 Series	Module	1.9 kg	4.1 lbs	Servo	480 V
Omron Electronics Inc-EMC Div R88D-KT20F	Chassis Mount	Serial USB	6.7 A	Servo AC	380 VAC	480 VAC	2 kW	Accurax G5 Series	Module	2.7 kg	5.9 lbs	Servo	480 V
Omron Electronics Inc-EMC Div R88D-KT08H	Chassis Mount	Serial USB	4.1 A	Servo AC	200 VAC	230 VAC	750 W	Accurax G5 Series	Module	1.6 kg	3.5 lbs	Servo	230 V
Omron Electronics Inc-EMC Div R88D-KT75H	Chassis Mount	Serial USB	44 A	Servo AC	200 VAC	240 VAC	7500 W	Accurax G5 Series	Module	13.2 kg	29 lbs	Servo	240 V
Omron Electronics Inc-EMC Div R88D-KT20H	Chassis Mount	Serial USB	13.4 A	Servo AC	200 VAC	240 VAC	2 kW	Accurax G5 Series	Module	2.7 kg	5.9 lbs	Servo	240 V
Omron Electronics Inc-EMC Div R88D-KT02L	Chassis Mount	Serial USB	2.5 A	Servo AC	100 VAC	120 VAC	200 W	Accurax G5 Series	Module	1 kg	2.3 lbs	Servo	120 V
Omron Electronics Inc-EMC Div R88D-KT10H	Chassis Mount	Serial USB	5.9 A	Servo AC	200 VAC	230 VAC	1 kW	Accurax G5 Series	Module			Servo	230 V
Omron Electronics Inc-EMC Div R88D-KT02H	Chassis Mount	Serial USB	1.6 A	Servo AC	200 VAC	230 VAC	200 W	Accurax G5 Series	Module	1.8 lbs		Servo	230 V	816.5 g

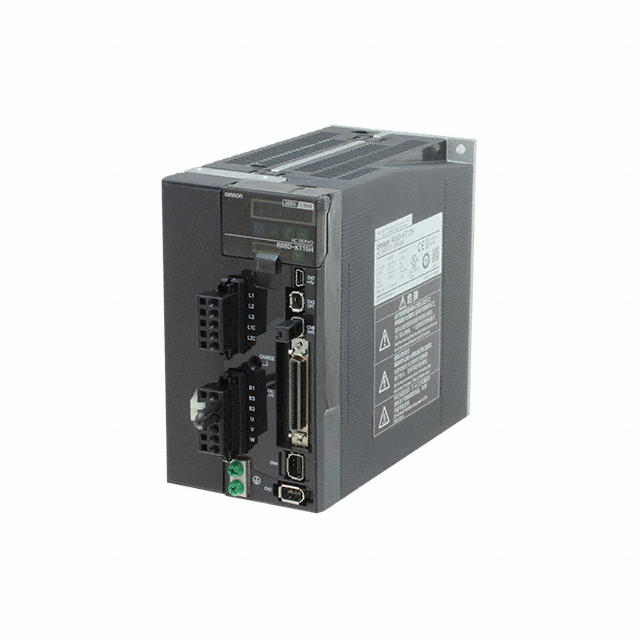

Omron Electronics Inc-EMC Div R88D-KT15H	Chassis Mount	Serial USB	9.4 A	Servo AC	200 VAC	230 VAC	1.5 kW	Accurax G5 Series	Module			Servo	230 V
