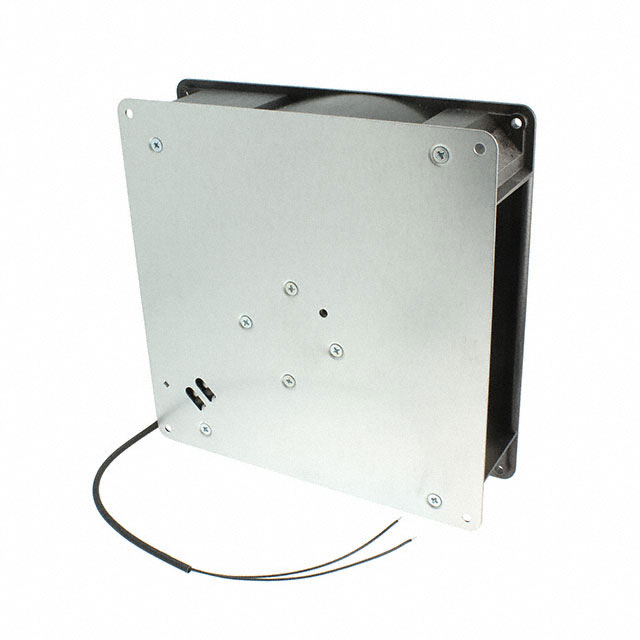

UF160 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K
FAN BLOWER 220X220MM 230VAC WIRE
| Part | Current Rating (Amps) | Material - Blade | Material - Frame | Width [y] | Features | RPM | Air Flow | Air Flow | Noise | Static Pressure | Static Pressure | Voltage - Rated | Power (Watts) | Fan Type | Bearing Type | Size / Dimension [x] | Size / Dimension [z] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | 0.3 A | Plastic | Plastic | 56.2 mm | Thermal Overload Protector (TOP) | 2900 RPM | 3.53 m³/min | 126 CFM | 65 dB | 448.4 Pa | 1.8 in H2O | 230 VAC | 53 W | Blower | Ball | 220 mm | 220 mm | 2 Wire Leads |
Mechatronics Fan Group | 600 mA | Plastic | Plastic | 56.2 mm | Thermal Overload Protector (TOP) | 2900 RPM | 3.53 m³/min | 126 CFM | 65 dB | 448.4 Pa | 1.8 in H2O | 115 VAC | 52 W | Blower | Ball | 220 mm | 220 mm | 2 Wire Leads |
