S06B-PAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

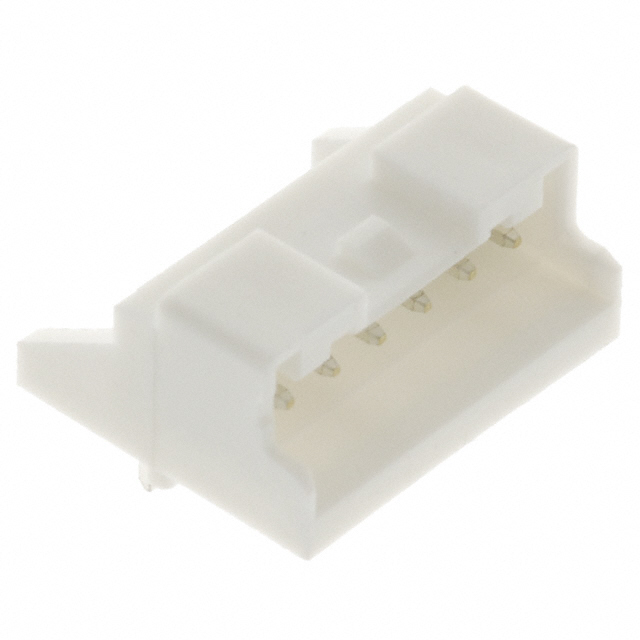

CONN HEADER R/A 6POS 2MM
| Part | Shrouding | Mounting Type | Insulation Height | Insulation Height | Contact Material | Contact Length - Mating | Contact Length - Mating | Contact Length - Post [x] | Contact Length - Post | Contact Type | Number of Positions | Insulation Color | Material Flammability Rating | Number of Rows | Number of Positions Loaded | Voltage Rating | Style | Termination | Pitch - Mating | Pitch - Mating | Contact Shape | Fastening Type | Features | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Insulation Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Shrouded - 4 Wall | Right Angle Through Hole | 0.256 in | 6.5 mm | Copper Alloy | 0.126 in | 3.2 mm | 0.134 " | 3.4 mm | Male Pin | 6 | Natural | UL94 V-0 | 1 | All | 250 V | Board to Cable/Wire | Kinked Pin Solder | 0.079 " | 2 mm | Square | Locking Ramp | Board Guide | Tin | 85 °C | -25 °C | Header | Polybutylene Terephthalate (PBT) Glass Filled | 3 A |
