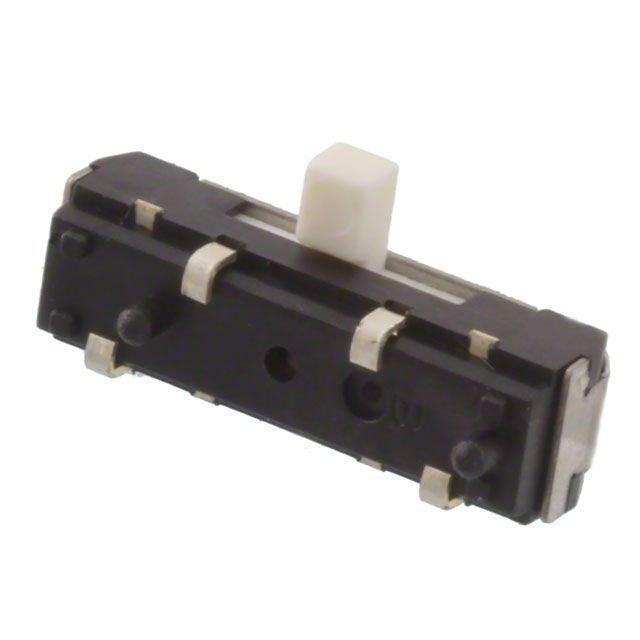

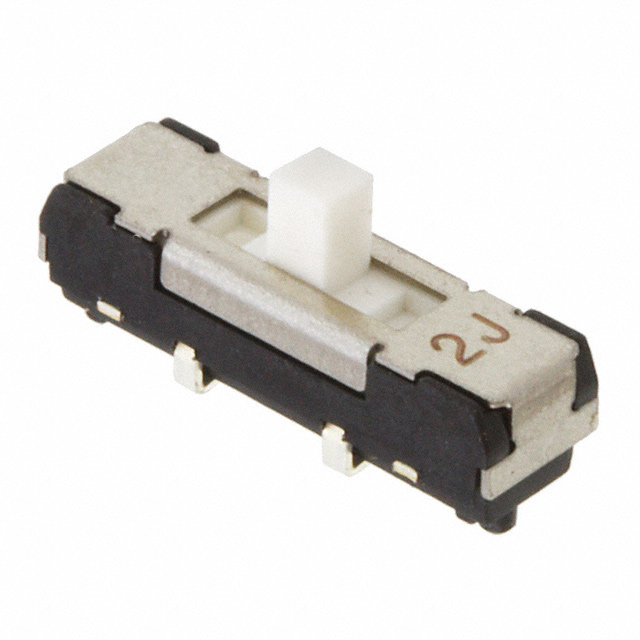

CL-SB-13 Series

Manufacturer: Nidec Components Corporation

Catalog

SWITCH SLIDE SP3T 200MA 12V

Part	Switch Travel	Electrical Life	Operating Force [Max]	Operating Force [Min]	Actuator Material	Circuit	Contact Finish	Voltage Rating - DC	Contact Timing	Termination Style	Switch Function	Actuator Type	Actuator Length [x]	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Type

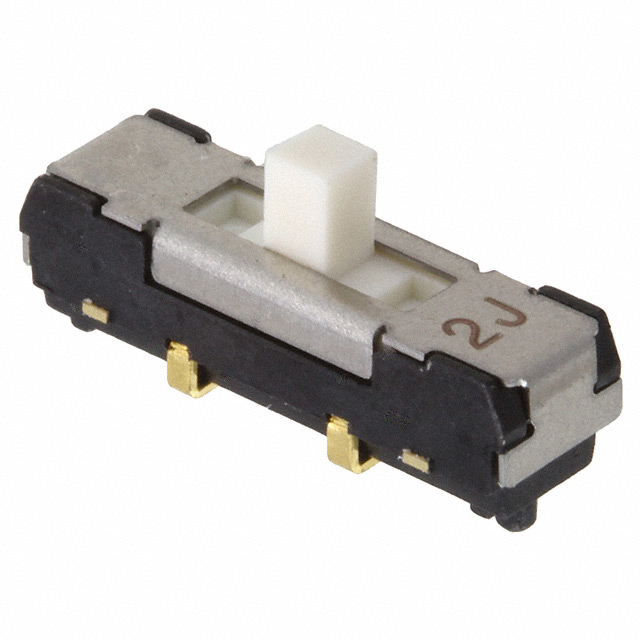

Nidec Components Corporation CL-SB-13A-02	2 mm	10000 Cycles	260 gf	160 gf	Polyamide (PA) Nylon	SP3T	Gold	12 V	Non-Shorting (BBM)	J Lead	On-On-On	Standard	2 mm	Copper	85 °C	-40 C	200 mA	Surface Mount
Nidec Components Corporation CL-SB-13B-11	2 mm	10000 Cycles	260 gf	160 gf	Polyamide (PA) Nylon	SP3T	Silver	12 V	Non-Shorting (BBM)	Gull Wing	On-On-On	Standard	2 mm	Copper	85 °C	-40 C	200 mA	Right Angle Surface Mount
Nidec Components Corporation CL-SB-13B-12T	2 mm	10000 Cycles	260 gf	160 gf	Polyamide (PA) Nylon	SP3T	Gold	12 V	Non-Shorting (BBM)	Gull Wing	On-On-On	Standard	2 mm	Copper	85 °C	-40 C	200 mA	Right Angle Surface Mount
Nidec Components Corporation CL-SB-13A-02T	2 mm	10000 Cycles	260 gf	160 gf	Polyamide (PA) Nylon	SP3T	Gold	12 V	Non-Shorting (BBM)	J Lead	On-On-On	Standard	2 mm	Copper	85 °C	-40 C	200 mA	Surface Mount
Nidec Components Corporation CL-SB-13A-01T	2 mm	10000 Cycles	260 gf	160 gf	Polyamide (PA) Nylon	SP3T	Silver	12 V	Non-Shorting (BBM)	J Lead	On-On-On	Standard	2 mm	Copper	85 °C	-40 C	200 mA	Surface Mount
Nidec Components Corporation CL-SB-13A-11T	2 mm	10000 Cycles	260 gf	160 gf	Polyamide (PA) Nylon	SP3T	Silver	12 V	Non-Shorting (BBM)	J Lead	On-On-On	Standard	2 mm	Copper	85 °C	-40 C	200 mA	Right Angle Surface Mount
Nidec Components Corporation CL-SB-13A-01	2 mm	10000 Cycles	260 gf	160 gf	Polyamide (PA) Nylon	SP3T	Silver	12 V	Non-Shorting (BBM)	J Lead	On-On-On	Standard	2 mm	Copper	85 °C	-40 C	200 mA	Surface Mount
Nidec Components Corporation CL-SB-13A-11	2 mm	10000 Cycles	260 gf	160 gf	Polyamide (PA) Nylon	SP3T	Silver	12 V	Non-Shorting (BBM)	J Lead	On-On-On	Standard	2 mm	Copper	85 °C	-40 C	200 mA	Right Angle Surface Mount
Nidec Components Corporation CL-SB-13B-02T	2 mm	10000 Cycles	260 gf	160 gf	Polyamide (PA) Nylon	SP3T	Gold	12 V	Non-Shorting (BBM)	Gull Wing	On-On-On	Standard	2 mm	Copper	85 °C	-40 C	200 mA	Surface Mount
Nidec Components Corporation CL-SB-13C-02	2 mm	10000 Cycles	260 gf	160 gf	Polyamide (PA) Nylon	SP3T	Gold	12 V	Non-Shorting (BBM)	PC Pin	On-On-On	Standard	2 mm	Copper	85 °C	-40 C	200 mA	Through Hole
