A4 Series

Catalog

LUG TERMINAL, PAN LUG SERIES, CRIMP, 4 AWG, COMPRESSION LUG, M10

Part	Thickness	Thickness	Contact Finish	Terminal Type	Width - Outer Edges	Width - Outer Edges [y]	Stud/Tab Size	Termination	Mounting Type	Contact Material	Length - Overall [x]	Length - Overall [x]	Wire Gauge	Insulation	Length - Overall	Length - Overall	Width - Outer Edges [y]
Panduit Corp A4-38R-C	1.52 mm	0.06 in	Electro-Tin	Circular Tubular (Battery Lugs)	15.49 mm	0.61 in	0.375 Stud	Crimp	Free Hanging (In-Line)	Copper	43.94 mm	1.73 in	4 AWG	Non-Insulated

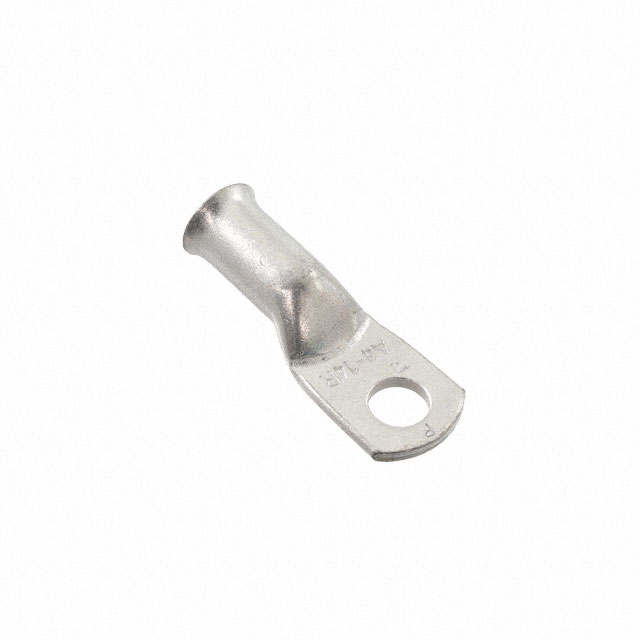

Panduit Corp A4-14R-C	1.52 mm	0.06 in	Electro-Tin	Circular Tubular (Battery Lugs)		0.55 in	0.25 Stud	Crimp	Free Hanging (In-Line)	Copper			4 AWG	Non-Insulated	1.51 in	38.35 mm	13.97 mm
Panduit Corp A4-56R-C	1.52 mm	0.06 in	Electro-Tin	Circular Tubular (Battery Lugs)	15.49 mm	0.61 in	0.3125 Stud	Crimp	Free Hanging (In-Line)	Copper	41.4 mm	1.63 in	4 AWG	Non-Insulated
