172647 Series

Manufacturer: Molex

Catalog

MINI-FIT JR. HEADER, SINGLE ROW, VERTICAL, 4 CIRCUITS, NYLON, 94V-2, MATTE TIN (SN) PLATING, GLOW-WIRE CAPABLE, BLACK

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Number of Rows	Shrouding	Connector Type	Material Flammability Rating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Contact Shape	Pitch - Mating	Pitch - Mating	Termination	Contact Length - Post	Contact Length - Post	Mounting Type	Insulation Material	Style	Contact Finish - Post	Contact Type	Number of Positions	Number of Positions Loaded	Fastening Type	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Insulation Height	Insulation Height	Current Rating (Amps)

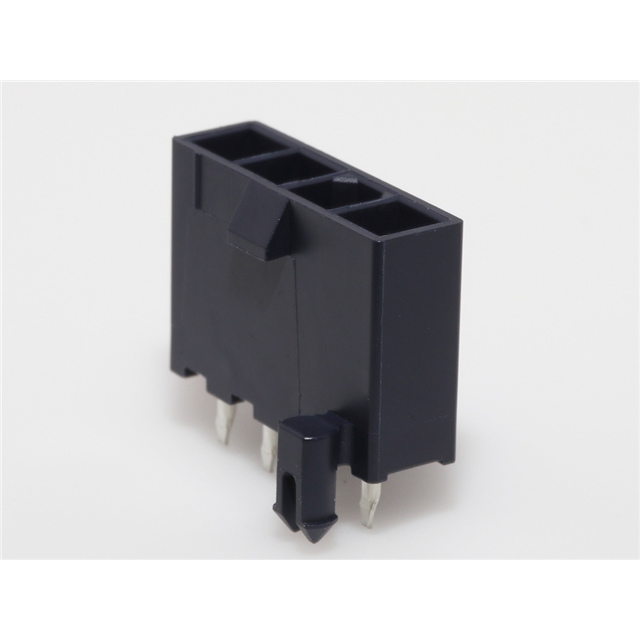

Molex 1726470104	General Purpose Industrial Telecommunications	2.54 µm	100 µin	Brass	1	Shrouded - 4 Wall	Header	UL94 V-0	Board Lock Glow Wire Compliant	100 çin	2.54 çm	12.8 mm	0.504 "	Square	0.165 in	4.2 mm	Solder	0.138 in	3.5 mm	Through Hole	Nylon Polyamide (PA)	Board to Cable/Wire	Tin	Male Pin	4	All	Locking Ramp	Black
Molex 1726470102	General Purpose Industrial Telecommunications	2.54 µm	100 µin	Brass	1	Shrouded - 4 Wall	Header	UL94 V-2	Board Lock Glow Wire Compliant	100 çin	2.54 çm			Square	0.165 in	4.2 mm	Solder	0.14 in	3.56 mm	Through Hole	Nylon Polyamide (PA)	Board to Cable/Wire	Tin	Male Pin	2	All	Locking Ramp	Black	80 °C	-40 C	600 VAC	0.5 "	12.7 mm	Varies by Wire Gauge

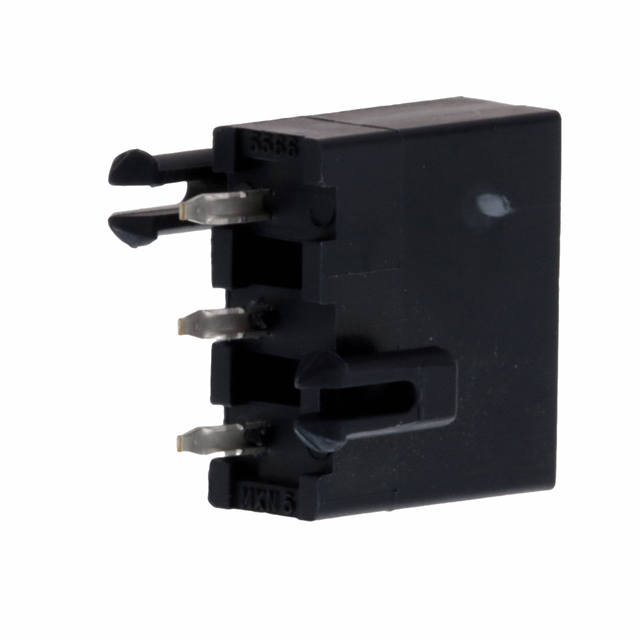

Molex 1726470103	General Purpose Industrial Telecommunications	2.54 µm	100 µin	Brass	1	Shrouded - 4 Wall	Header	UL94 V-2	Board Lock Glow Wire Compliant	100 çin	2.54 çm			Square	0.165 in	4.2 mm	Solder	0.138 in	3.5 mm	Through Hole	Nylon Polyamide (PA)	Board to Cable/Wire	Tin	Male Pin		All	Locking Ramp	Black				0.492 in	12.5 mm

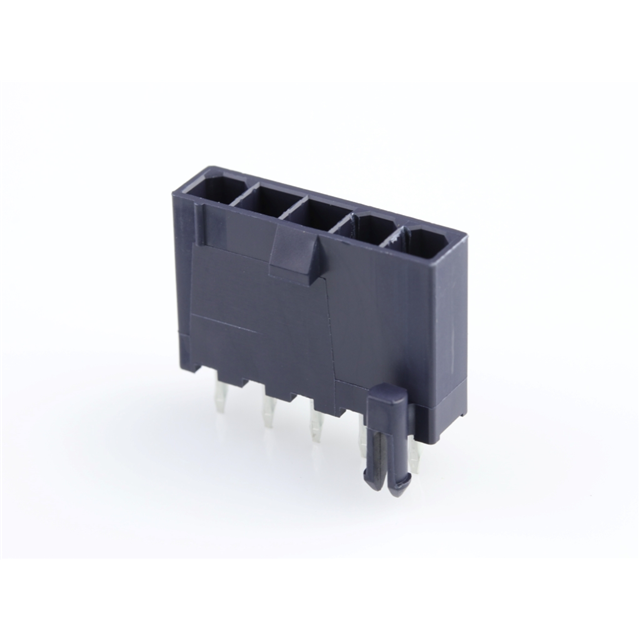

Molex 1726470106	General Purpose Industrial Telecommunications	2.54 µm	100 µin	Brass	1	Shrouded - 4 Wall	Header	UL94 V-2	Board Lock Glow Wire Compliant	100 çin	2.54 çm			Square	0.165 in	4.2 mm	Solder	0.14 in	3.56 mm	Through Hole	Nylon Polyamide (PA)	Board to Cable/Wire	Tin	Male Pin	6	All	Locking Ramp	Black	80 °C	-40 C	600 VAC	0.5 "	12.7 mm	Varies by Wire Gauge

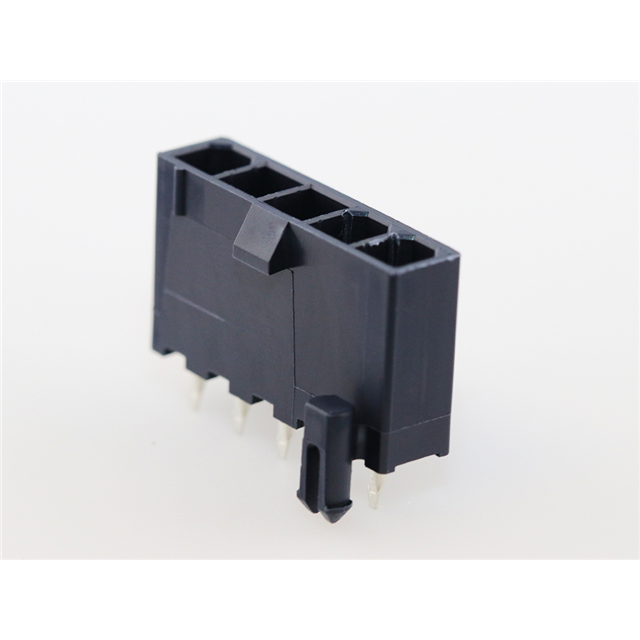

Molex 1726470105	General Purpose Industrial Telecommunications	2.54 µm	100 µin	Brass	1	Shrouded - 4 Wall	Header	UL94 V-2	Board Lock Glow Wire Compliant	100 çin	2.54 çm	12.8 mm	0.504 "	Square	0.165 in	4.2 mm	Solder	0.138 in	3.5 mm	Through Hole	Nylon Polyamide (PA)	Board to Cable/Wire	Tin	Male Pin	5	All	Locking Ramp	Black
