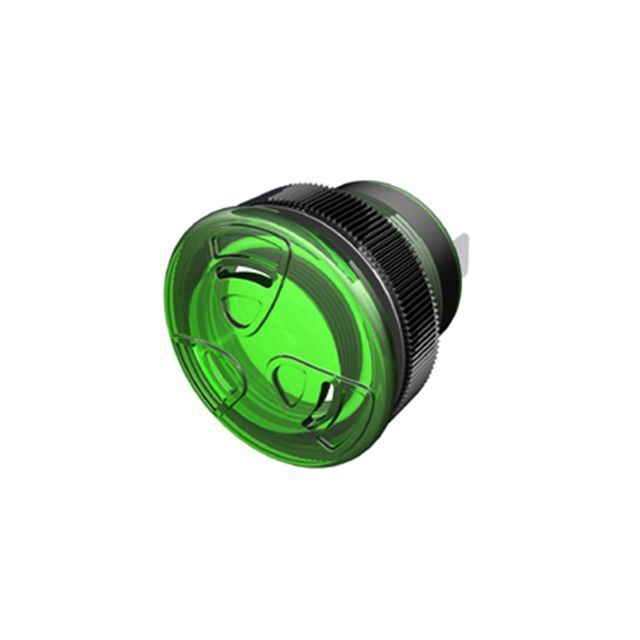

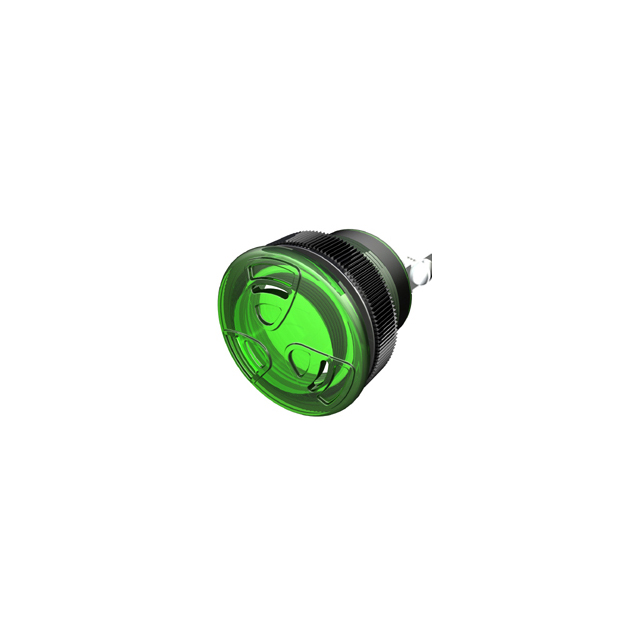

TLHB-88G Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 33.02MM PNL MNT
| Part | Input Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Termination | Termination | Termination | Voltage Range [Max] | Voltage Range [Min] | Sound Pressure Level (SPL) | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Operating Mode | Ingress Protection | Frequency | Approval Agency | Port Location | Driver Circuitry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | DC | 29.97 mm | 1.18 in | Quick Connect Tab | 0.25 " | 6.35 mm | 30 V | 9 V | 103 dB | 50 mA | 110 mA | 1.3 in | 33.02 mm | Panel Mount | Pulse Slow | IP68 - Dust Tight Waterproof | 2.9 kHz | UL UR | Top | Indicator Internally Driven |
 Floyd Bell Inc | DC | 29.97 mm | 1.18 in | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | 30 V | 9 V | 103 dB | 50 mA | 110 mA | 1.3 in | 33.02 mm | Panel Mount | Pulse Slow | IP68 - Dust Tight Waterproof | 2.9 kHz | UL UR | Top | Indicator Internally Driven |
 Floyd Bell Inc | DC | 29.97 mm | 1.18 in | Quick Connect Tab | 0.25 " | 6.35 mm | 30 V | 9 V | 103 dB | 50 mA | 110 mA | 1.3 in | 33.02 mm | Panel Mount | Fast Pulse | IP68 - Dust Tight Waterproof | 2.9 kHz | UL UR | Top | Indicator Internally Driven |
 Floyd Bell Inc | DC | 29.97 mm | 1.18 in | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | 30 V | 9 V | 103 dB | 50 mA | 110 mA | 1.3 in | 33.02 mm | Panel Mount | Fast Pulse | IP68 - Dust Tight Waterproof | 2.9 kHz | UL UR | Top | Indicator Internally Driven |
