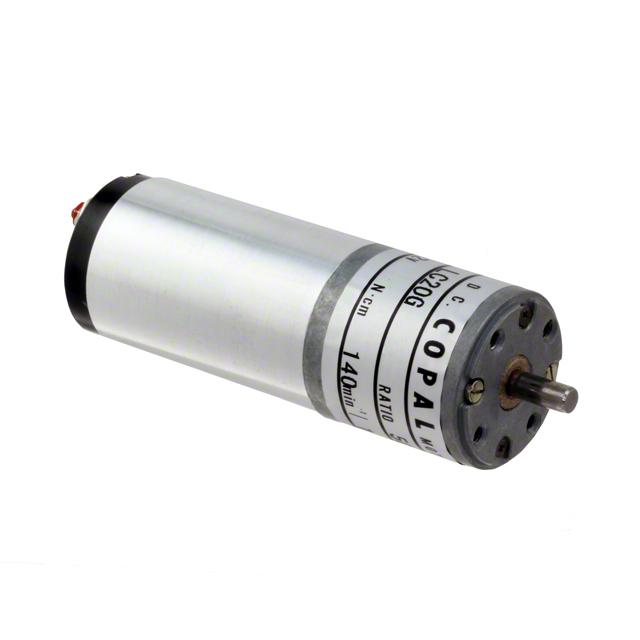

LC20G Series

Catalog

GEARMOTOR 6 RPM 12V

Part	Weight [custom]	Weight [custom]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	RPM	Size / Dimension [diameter]	Size / Dimension [diameter]	Termination Style	Voltage - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Gear Reduction Ratio	Type	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]
Nidec Components Corporation LC20G-101 1/1000	0.133 lb	60.33 g	24.5 mNm	3.47 oz-in	6 RPM	0.787 "	20 mm	Screw Terminal	12 VDC	0.118 in	3 mm	1000	DC Motor	0.205 in	5.2 mm
Nidec Components Corporation LC20G-101 1/150	0.133 lb	60.33 g	14.7 mNm	2.08 oz-in	40 RPM	0.787 "	20 mm	Screw Terminal	12 VDC	0.118 in	3 mm	150	DC Motor	0.205 in	5.2 mm
Nidec Components Corporation LC20G-101 1/100	0.133 lb	60.33 g	14.7 mNm	2.08 oz-in	60 RPM	0.787 "	20 mm	Screw Terminal	12 VDC	0.118 in	3 mm	100	DC Motor	0.205 in	5.2 mm
Nidec Components Corporation LC20G-101 1/10	0.133 lb	60.33 g	4.9 mNm	0.694 oz-in	600 RPM	0.787 "	20 mm	Screw Terminal	12 VDC	0.118 in	3 mm	10	DC Motor	0.205 in	5.2 mm
Nidec Components Corporation LC20G-101 1/50	0.133 lb	60.33 g	9.8 mNm	1.388 oz-in	120 RPM	0.787 "	20 mm	Screw Terminal	12 VDC	0.118 in	3 mm	50	DC Motor	0.205 in	5.2 mm
Nidec Components Corporation LC20G-101 1/25	0.133 lb	60.33 g	7.8 mNm	1.104 oz-in	240 RPM	0.787 "	20 mm	Screw Terminal	12 VDC	0.118 in	3 mm	25	DC Motor	0.205 in	5.2 mm
Nidec Components Corporation LC20G-101 1/300	0.133 lb	60.33 g	24.5 mNm	3.47 oz-in	20 RPM	0.787 "	20 mm	Screw Terminal	12 VDC	0.118 in	3 mm		DC Motor	0.205 in	5.2 mm
