SJ6008VS2TP Series

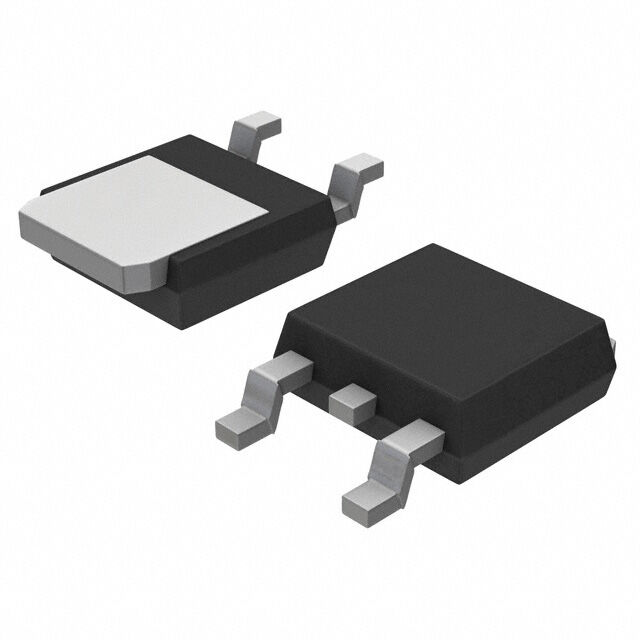

Sen SCR 600V 8A 200µA TO252

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sen SCR 600V 8A 200µA TO252

Part	Mounting Type	Current - Off State (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Supplier Device Package	Package / Case	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	SCR Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Current - On State (It (AV)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]
Littelfuse/Commercial Vehicle Products SJ6008VS2TP	Through Hole	5 µA	1.6 V	TO-251AA	IPAK TO-251-3 Short Leads TO-251AA	800 mV	6 mA	8 A	Sensitive Gate	150 °C	-40 °C	200 µA	600 V	5.1 A	83 A	100 A
Littelfuse/Commercial Vehicle Products SJ6008V1TP	Through Hole	10 µA	1.6 V	TO-251AA	IPAK TO-251-3 Short Leads TO-251AA	1.5 V	20 mA	8 A	Sensitive Gate	150 °C	-40 °C	6 µA	600 V	5.1 A	83 A	100 A
Littelfuse/Commercial Vehicle Products SJ6008DS2RP	Surface Mount	10 µA	1.6 V	TO-252 (DPAK)	DPAK (2 Leads + Tab) SC-63 TO-252-3	1.5 V	6 mA	8 A	Sensitive Gate	150 °C	-40 °C		600 V	5.1 A	83 A	100 A
Littelfuse/Commercial Vehicle Products SJ6008D1RP	Surface Mount	10 µA	1.6 V	TO-252 (DPAK)	DPAK (2 Leads + Tab) SC-63 TO-252-3	1.5 V	20 mA	8 A	Sensitive Gate	150 °C	-40 °C	6 mA	600 V	5.1 A	83 A	100 A

Catalog

Sen SCR 600V 8A 200µA TO252

Key Features

• Voltage capability up to 600 V

• 150°C maximum junction temperature

• Surge capability up to 100 A at 60 Hz half cycle

• Halogen free and RoHS compliant

Description

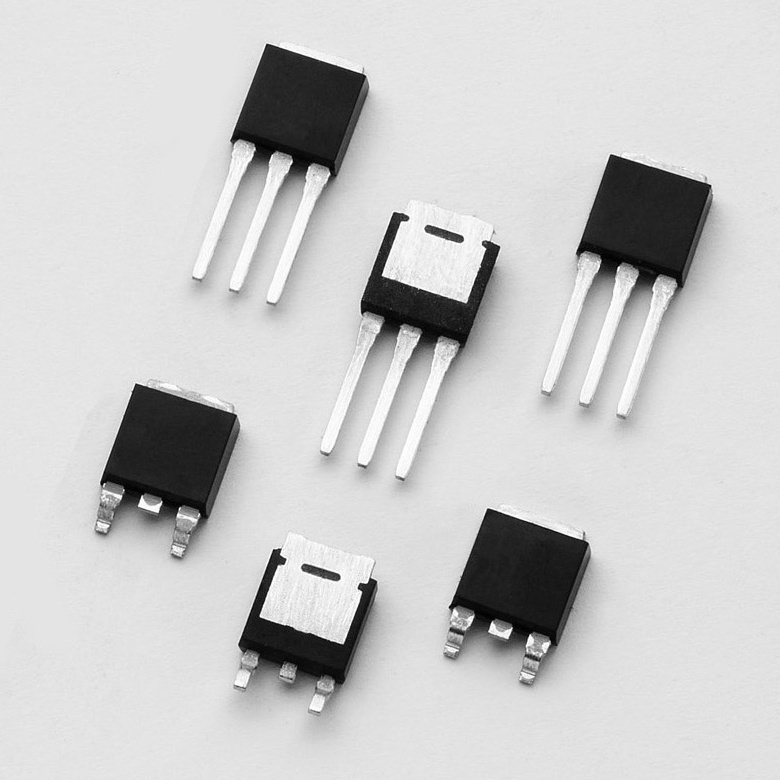

This SJxx080xx high temperature SCR series is ideal for uni-directional switch applications such as phase control in heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions. These SCRs have a low gate current trigger level of 6mA or 15mA maximum at approximately 1.5V, with a sensitive version of this series having a gate trigger current less than 200µA. The sensitive gate SCR version is easily triggered by sense coils, proximity switches, and microprocessors.
