M80-414 Series

Catalog

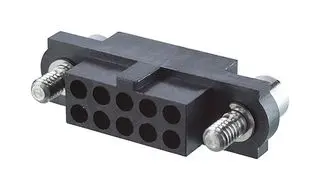

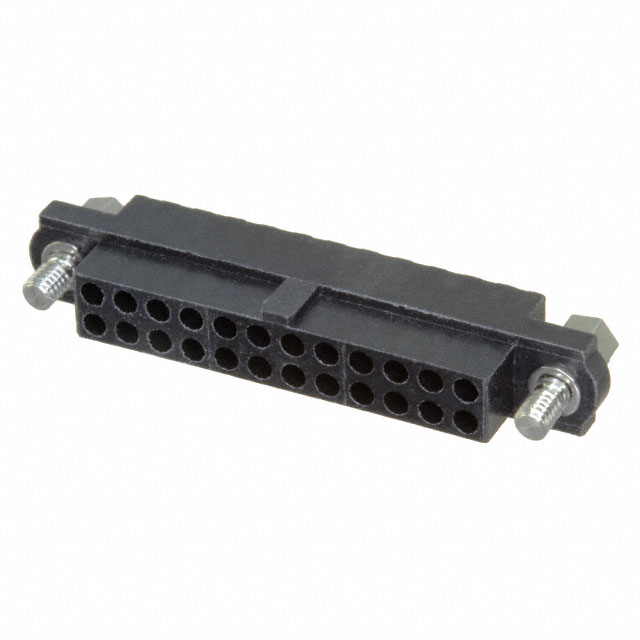

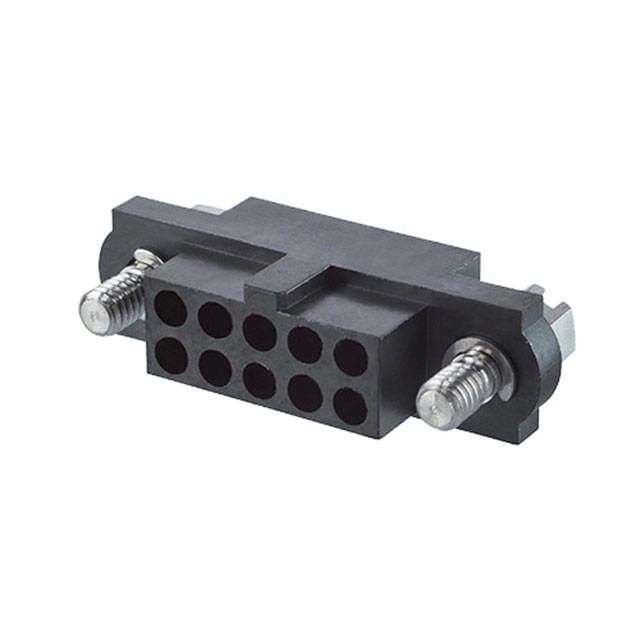

WTB HOUSING CONNECTOR, 50POS, 2ROW, 2MM ROHS COMPLIANT: YES

Part	Note	Contact Termination	Connector Type	Features	Mounting Type	Color	Contact Type	Number of Rows [custom]	Number of Positions	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material
Harwin Inc. M80-4145098	Contacts Not Included	Crimp	Receptacle	Mating Flange Polarizing Key	Free Hanging (In-Line)	Black	Female Socket	2	50	0.079 in	2 mm	2 mm	0.079 in	-55 C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled
Harwin Inc. M80-4141298	Contacts Not Included	Crimp	Receptacle	Mating Flange Polarizing Key	Free Hanging (In-Line)	Black	Female Socket	2	12	0.079 in	2 mm	2 mm	0.079 in	-55 C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled
Harwin Inc. M80-4142498	Contacts Not Included	Crimp	Receptacle	Mating Flange Polarizing Key	Free Hanging (In-Line)	Black	Female Socket	2	24	0.079 in	2 mm	2 mm	0.079 in	-55 C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled
Harwin Inc. M80-4141498	Contacts Not Included	Crimp	Receptacle	Mating Flange Polarizing Key	Free Hanging (In-Line)	Black	Female Socket	2	14	0.079 in	2 mm	2 mm	0.079 in	-55 C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled
Harwin Inc. M80-4141898	Contacts Not Included	Crimp	Receptacle	Mating Flange Polarizing Key	Free Hanging (In-Line)	Black	Female Socket	2	18	0.079 in	2 mm	2 mm	0.079 in	-55 C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled
Harwin Inc. M80-4142098	Contacts Not Included	Crimp	Receptacle	Mating Flange Polarizing Key	Free Hanging (In-Line)	Black	Female Socket	2	20	0.079 in	2 mm	2 mm	0.079 in	-55 C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled
Harwin Inc. M80-4144498	Contacts Not Included	Crimp	Receptacle	Mating Flange Polarizing Key	Free Hanging (In-Line)	Black	Female Socket	2	44	0.079 in	2 mm	2 mm	0.079 in	-55 C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled
Harwin Inc. M80-4140698	Contacts Not Included	Crimp	Receptacle	Mating Flange Polarizing Key	Free Hanging (In-Line)	Black	Female Socket	2	6	0.079 in	2 mm	2 mm	0.079 in	-55 C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled
Harwin Inc. M80-4142698	Contacts Not Included	Crimp	Receptacle	Mating Flange Polarizing Key	Free Hanging (In-Line)	Black	Female Socket	2	26	0.079 in	2 mm	2 mm	0.079 in	-55 C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled
Harwin Inc. M80-4141098	Contacts Not Included	Crimp	Receptacle	Mating Flange Polarizing Key	Free Hanging (In-Line)	Black	Female Socket	2	10	0.079 in	2 mm	2 mm	0.079 in	-55 C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled
